REAR COMBINATION LAMP (GP125C, GP125UC)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

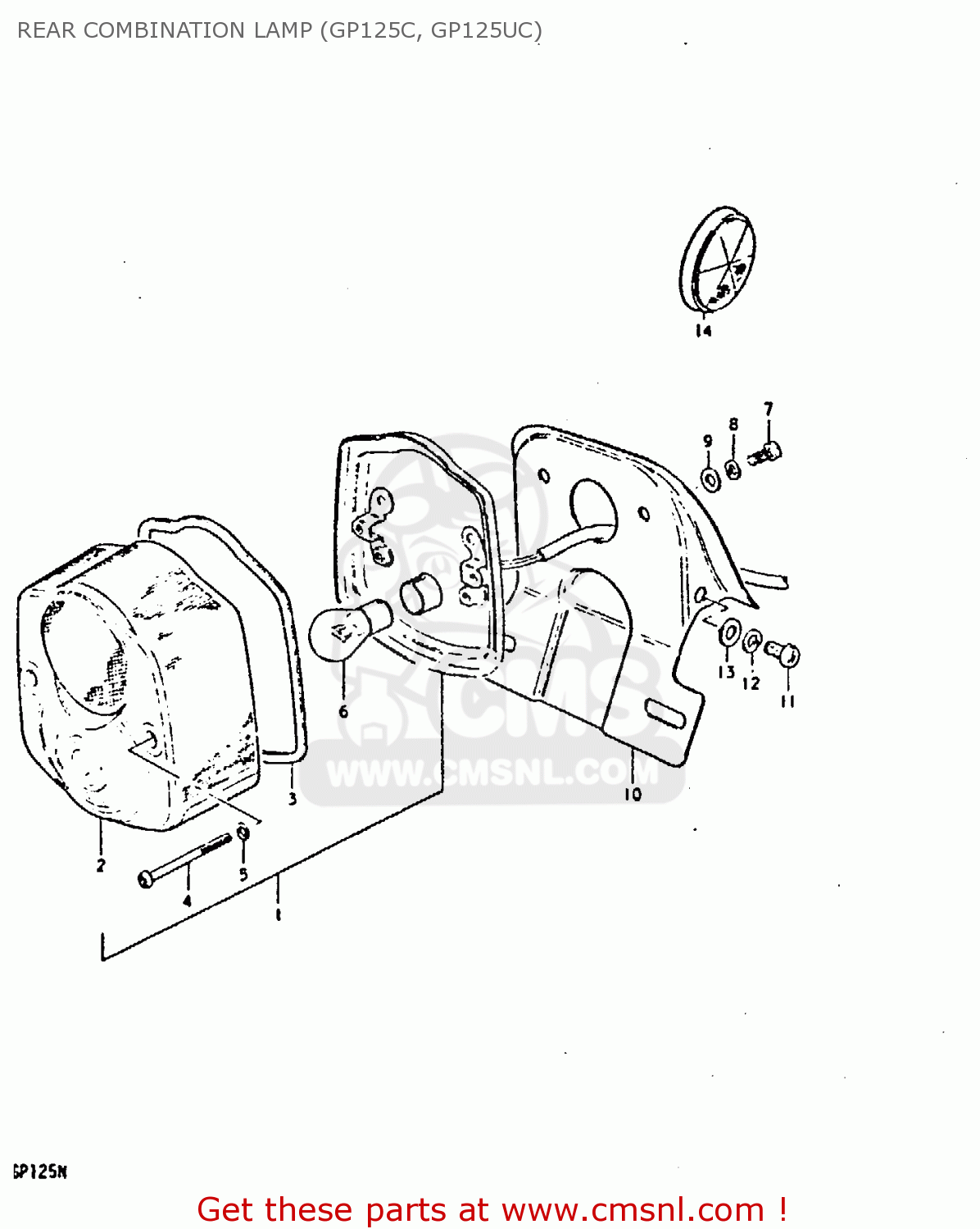

Rear combination lamp (gp125c, gp125uc) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

REAR COMBINATION LAMP (GP125C, GP125UC) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
REAR COMBINATION LAMP (GP125C, GP125UC) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
REAR COMBINATION LAMP (GP125C, GP125UC) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
3571039110
ref: 1
LAMP ASSY, REAR COMBINATION
€ 72.50
2
3571246621
ref: 2
LENS
€ 39.00
3
3571346620
ref: 3
GASKET (NAS)
3571346620
€ 8.00
4
3562335110
ref: 4
SCREW
3562335110
€ 3.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947106008
ref: 6
BULB(6V10/3W,STANLEY,A4854H)
0947106008
€ 4.50
7
0110405128
ref: 7
BOLT
€ 2.00
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
3572639100
ref: 10
BRACKET
€ 17.00
11
0912506023
ref: 11
SCREW
€ 0.00
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
0916006018
ref: 13
WASHER
€ 2.00
14
3595035011
ref: 14
E14
REFLEX REFLECTOR,FR
3595035011
€ 11.00
