FRONT FENDER (GP125C, GP125N)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

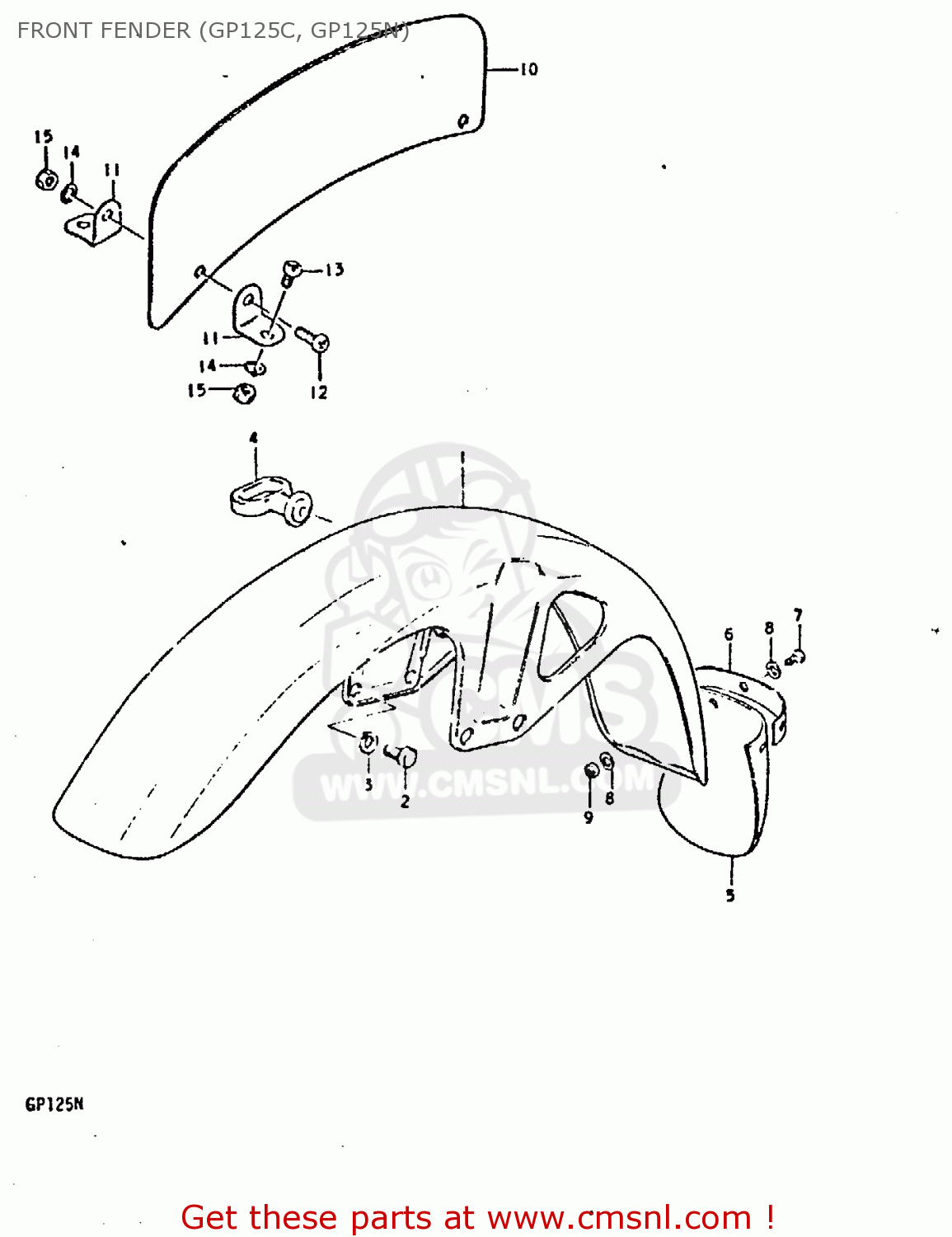

Front fender (gp125c, gp125n) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

FRONT FENDER (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

FRONT FENDER (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

5311039651
ref: 1-1
TO 53110-39200

FENDER, FRONT

€ 93.50

2

0110708168
ref: 2

BOLT

€ 2.00

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50

5

5331125600
ref: 5
E13,

FLAP,MUD

€ 9.00

6

5332139100
ref: 6
E13,

PLATE,MUDFLAP

€ 0.00

7

0211204108
ref: 7
E13,

SCREW 4X10

€ 2.00

8

0832221048
ref: 8
E13,

WASHER

€ 2.00

9

0831022048
ref: 9
E13,

NUT 4MM

€ 2.00
