REAR COMBINATION LAMP (E17, E22)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

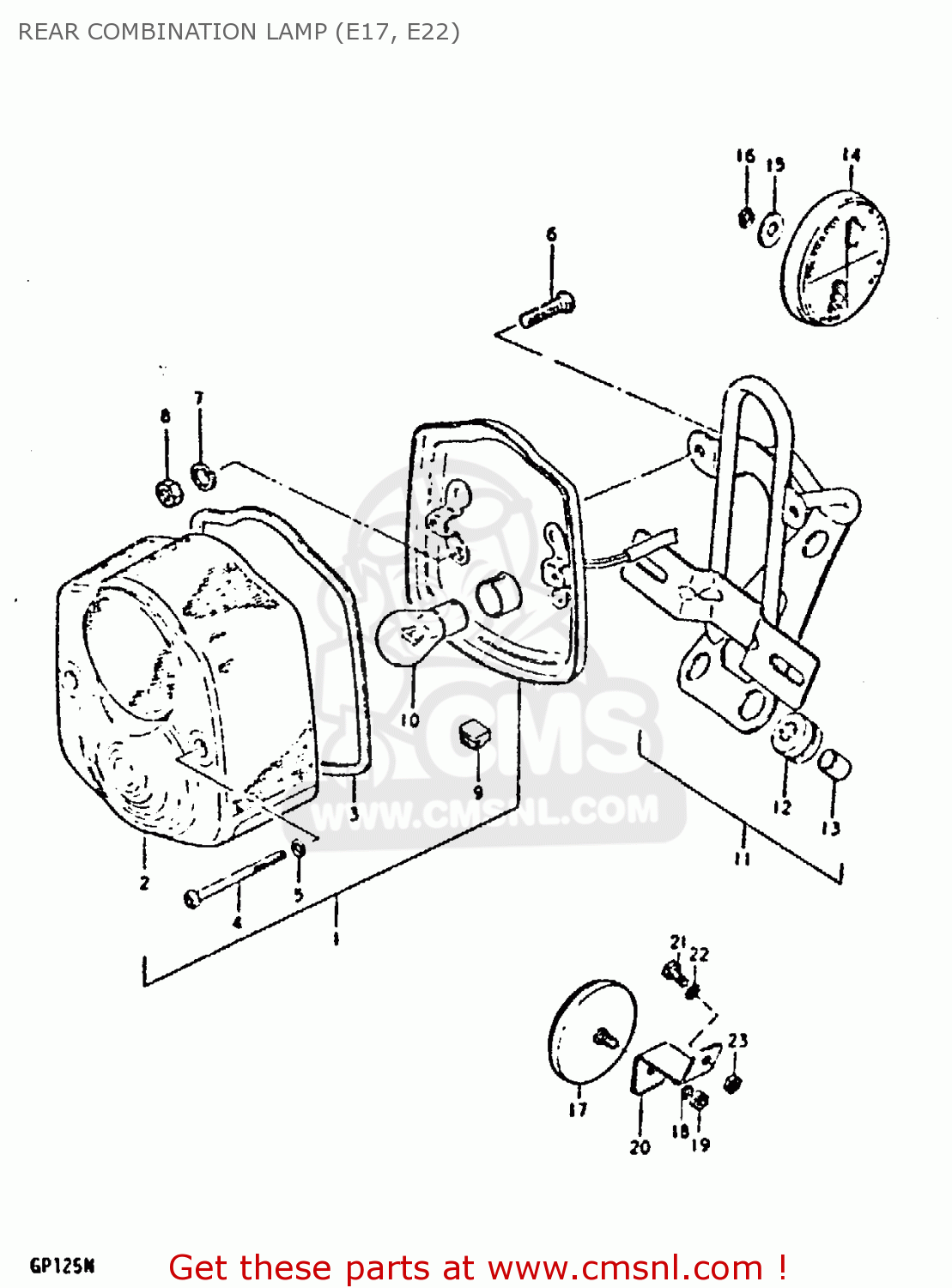

Rear combination lamp (e17, e22) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

REAR COMBINATION LAMP (E17, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

REAR COMBINATION LAMP (E17, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

3571039170
ref: 1-1
E17

LAMP ASSY, TAIL

€ 0.00

1-2

3571039190999
ref: 1-2
E22

LAMP ASSY, TAIL

€ 0.00

2-1

3571239170
ref: 2-1
TO 35712-39171

LENS

€ 38.50

3

3571346620
ref: 3

GASKET (NAS)

€ 8.00

4

3562335110
ref: 4

SCREW

€ 3.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

9

3572846630
ref: 9
E22

GROMMET

€ 0.00

10-1

0947106042
ref: 10-1
E17

BULB (6V,21/5W)

€ 12.50

10-2

0947106034
ref: 10-2
E22, EXECUTED LOCALL

BULB (6V,21/5W)

€ 0.00

14

3595045010
ref: 14
E17

REFLEX REFLECTOR,FR

€ 17.00

17-1

3597045610
ref: 17-1
TO 35970-45611

REFLECTOR,REFLEX

€ 47.50

18

0832121058
ref: 18

LOCK WASHER

€ 2.00

19

0831011058
ref: 19

NUT

€ 2.50

20

3597436600
ref: 20

BRACKET

€ 0.00

21

0110706108
ref: 21

BOLT

€ 2.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0831011068
ref: 23

NUT

€ 2.50
