MAGNETO

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

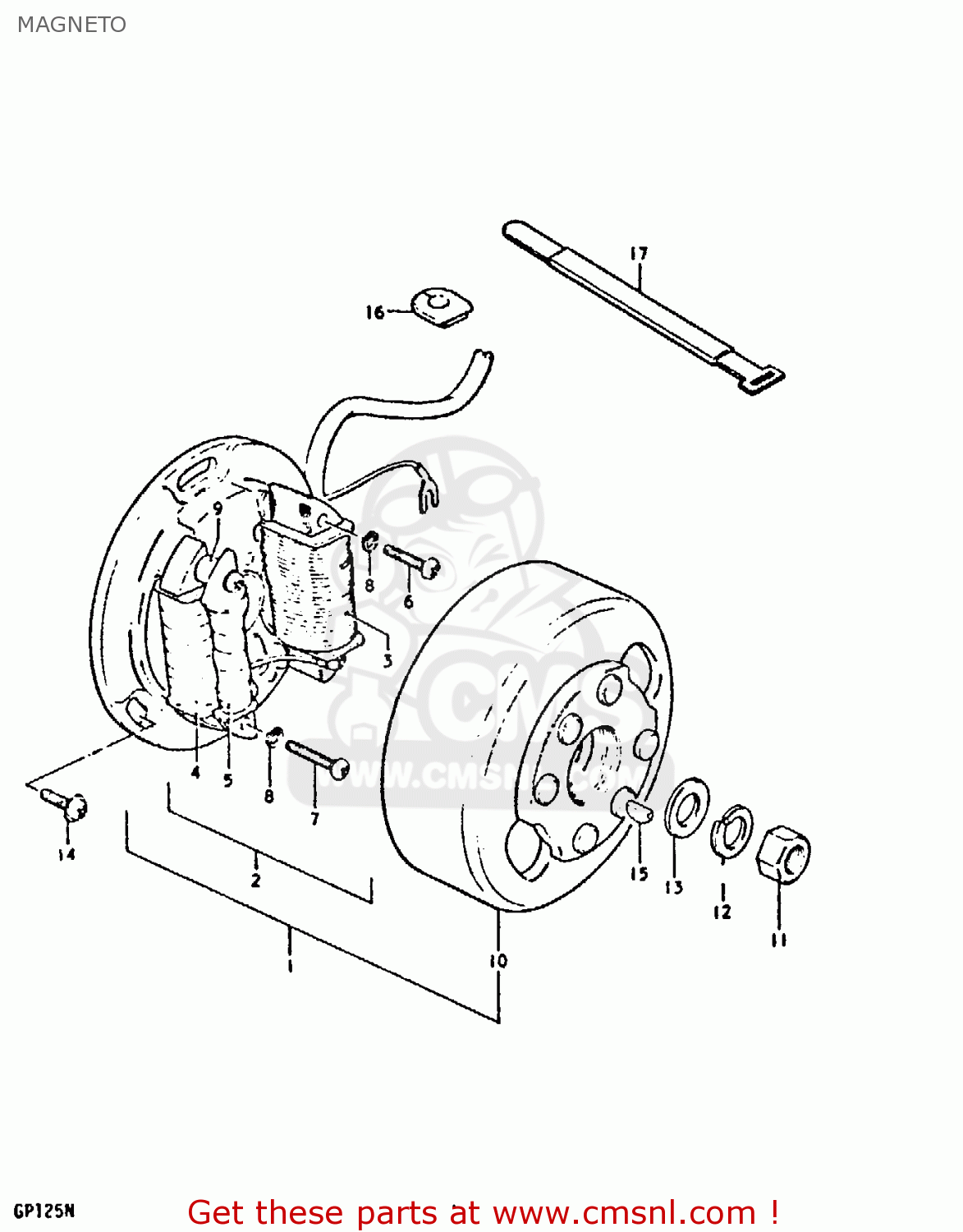

Magneto diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MAGNETO GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MAGNETO GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

11

0914010003
ref: 11

NUT (10MM)

€ 3.50

12

0832121108
ref: 12

LOCK WASHER

€ 2.00

13

0832221108
ref: 13

WASHER

€ 2.50

14

0913905011
ref: 14

SCREW(5X14)

€ 3.00

15

0834131039
ref: 15

KEY

€ 2.00

16

0930909007
ref: 16

GROMMET

€ 2.50

17

0940718301
ref: 17

CLAMP

€ 6.00
