HEADLAMP (E17, E18, E21, E22)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

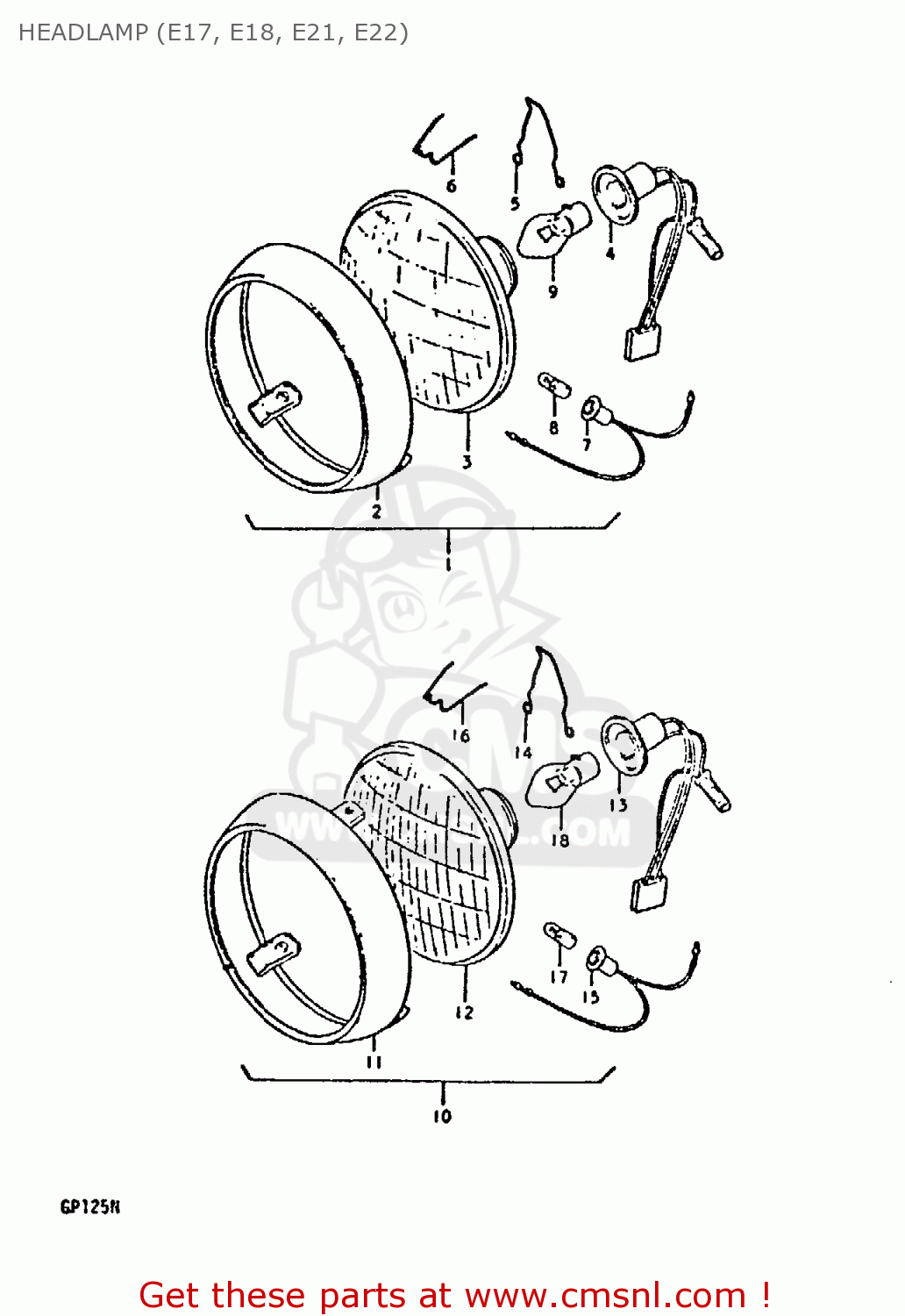

Headlamp (e17, e18, e21, e22) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

HEADLAMP (E17, E18, E21, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

HEADLAMP (E17, E18, E21, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

3510029640999
ref: 1

HEADLAMP ASSY

€ 55.00

2

3511129640
ref: 2

RIM

€ 38.50

3

3512120671
ref: 3

UNIT

€ 0.00

4

3517136650
ref: 4

SOCKET

€ 27.00

5

3517228660
ref: 5

CLAMP,HEADLAMP

€ 7.00

6

3517233630
ref: 6

SPRING

€ 4.00

7

3611828660
ref: 7

SOCKET

€ 11.50

8

0947106047
ref: 8
EXECUTED LOCALLY

BULB (6V,4W)

€ 0.00

9

0947106018
ref: 9
EXECUTED LOCALLY

BULB (6V,25/25W)

€ 0.00
