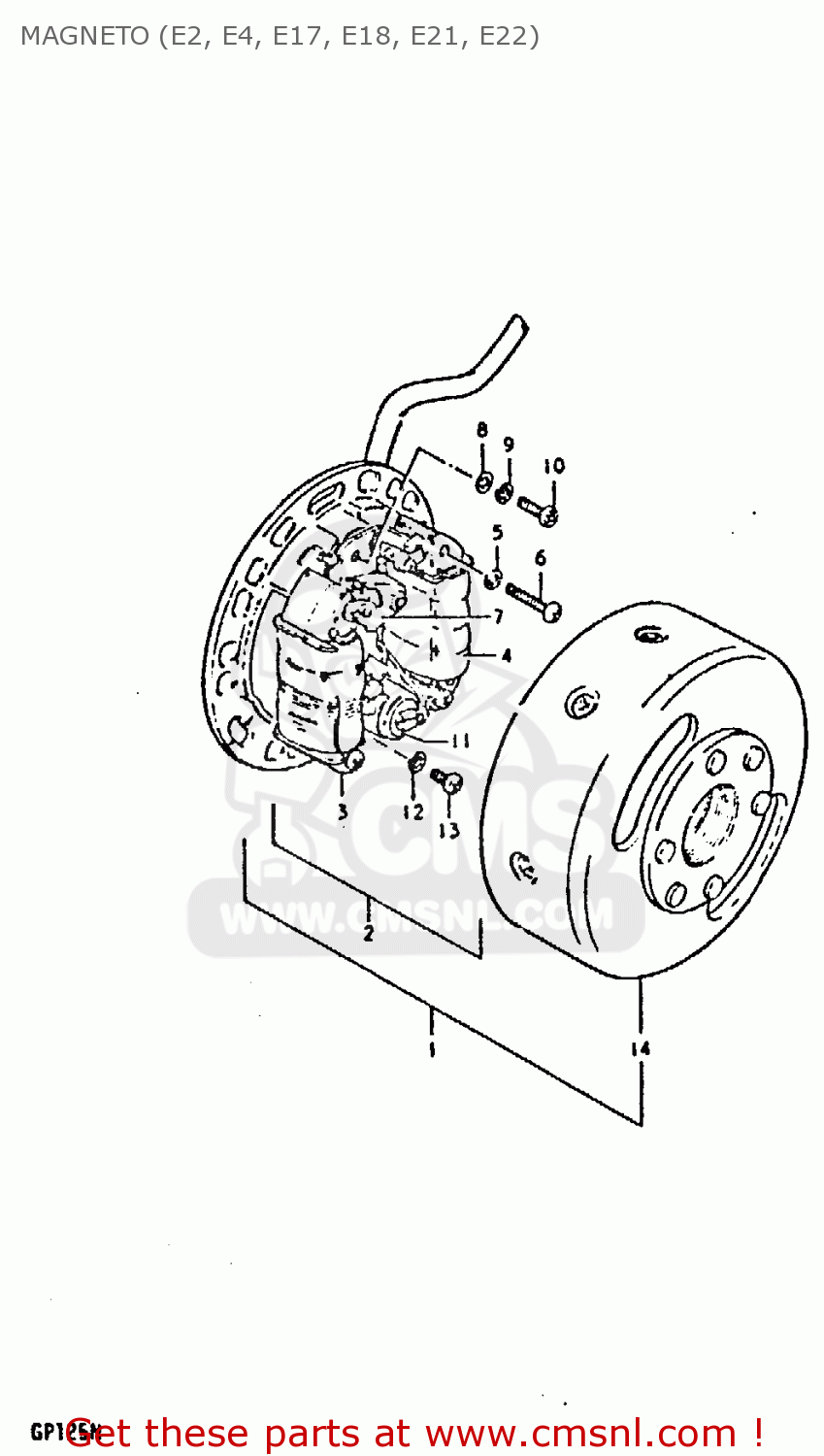

MAGNETO (E2, E4, E17, E18, E21, E22)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

Magneto (e2, e4, e17, e18, e21, e22) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MAGNETO (E2, E4, E17, E18, E21, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
MAGNETO (E2, E4, E17, E18, E21, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
MAGNETO (E2, E4, E17, E18, E21, E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
3210039130
ref: 1
TO 32100-39131
MAGNETO ASSY
€ 207.00
2
3210148620
ref: 2
STATOR ASSY
3210148620
€ 207.00
3
3212048620
ref: 3
COIL, LIGHTING
3212048620
€ 40.00
4
3214048010
ref: 4
COIL,PRIMARY
3214048010
€ 60.50
5
0832121048
ref: 5
LOCK WASHER
0832121048
€ 2.00
6
0211204258
ref: 6
SCREW 4X25
0211204258
€ 2.00
7
3224043012
ref: 7
POINT ASSY,CONTACT
3224043012
€ 18.50
8
0832221048
ref: 8
WASHER
0832221048
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
0912504001
€ 4.50
11
3234143012
ref: 11
CONDENSER
3234143012
€ 12.50
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 2.00
13
0211204108
ref: 13
SCREW 4X10
€ 2.00
14
3210239130
ref: 14
ROTOR, FRYWHEEL
€ 211.50
