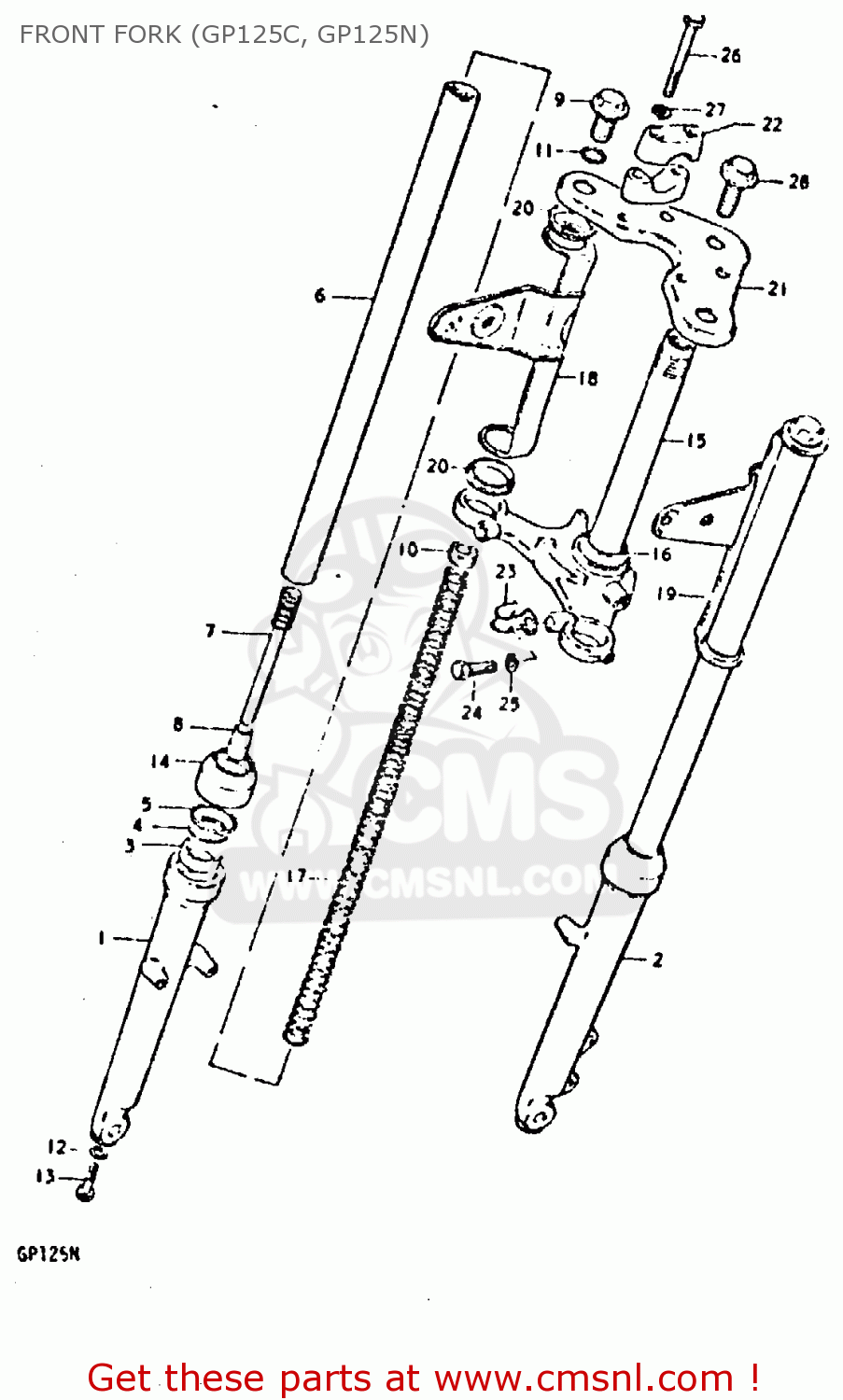

FRONT FORK (GP125C, GP125N)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

Front fork (gp125c, gp125n) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

FRONT FORK (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

FRONT FORK (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

0

5110039220291
ref: 0

FRONT FORK ASSY (KAYABA)

€ 0.00

1

5113039220
ref: 1

OUTER TUBE, RH

€ 0.00

2

5114039220
ref: 2

OUTER TUBE, LH

€ 0.00

3

5115329400
ref: 3

OIL SEAL,FRONT FORK

€ 11.00

4

5115836010
ref: 4

WASHER,FRONT FORK

€ 4.00

5

5115636010
ref: 5

RING,SNAP

€ 5.50

6

5111039220
ref: 6

INNER TUBE

€ 94.00

7

5114636220
ref: 7

CYLINDER

€ 0.00

8

5119536220
ref: 8

PIECE,OIL LOCK

€ 11.50

9

5135139220
ref: 9

CAP

€ 12.00

10

5135336220
ref: 10

NUT

€ 7.00

11

5111736220
ref: 11

O RING

€ 2.00

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

1554716510
ref: 13

BOLT

€ 0.00

14

5117329310
ref: 14

SEAL,DUST

€ 10.00

15

5141036220
ref: 15

STEM

€ 135.50

16

5162133001
ref: 16

RACE,STEERING OUTER LWR

€ 10.00

17

5117139220
ref: 17

SPRING

€ 0.00

18

5153039220291
ref: 18

COVER, RH

€ 0.00

19

5154039220291
ref: 19

COVER, LH

€ 0.00

20

5155336220
ref: 20

GASKET

€ 4.00

21

5131036220291
ref: 21

STEM HEAD

€ 47.00

22

5621127200291
ref: 22

HOLDER,HANDLE UPR

€ 13.50

23

5145536010
ref: 23

CLIP

€ 6.50

24

5145128012
ref: 24

BOLT,FR FORK LWR(12X33)

€ 11.50

25

0832121128
ref: 25

WASHER,LOCK 12

€ 2.50

26

0120408557
ref: 26

BOLT

€ 2.50

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

5135239220
ref: 28

BOLT

€ 4.00
