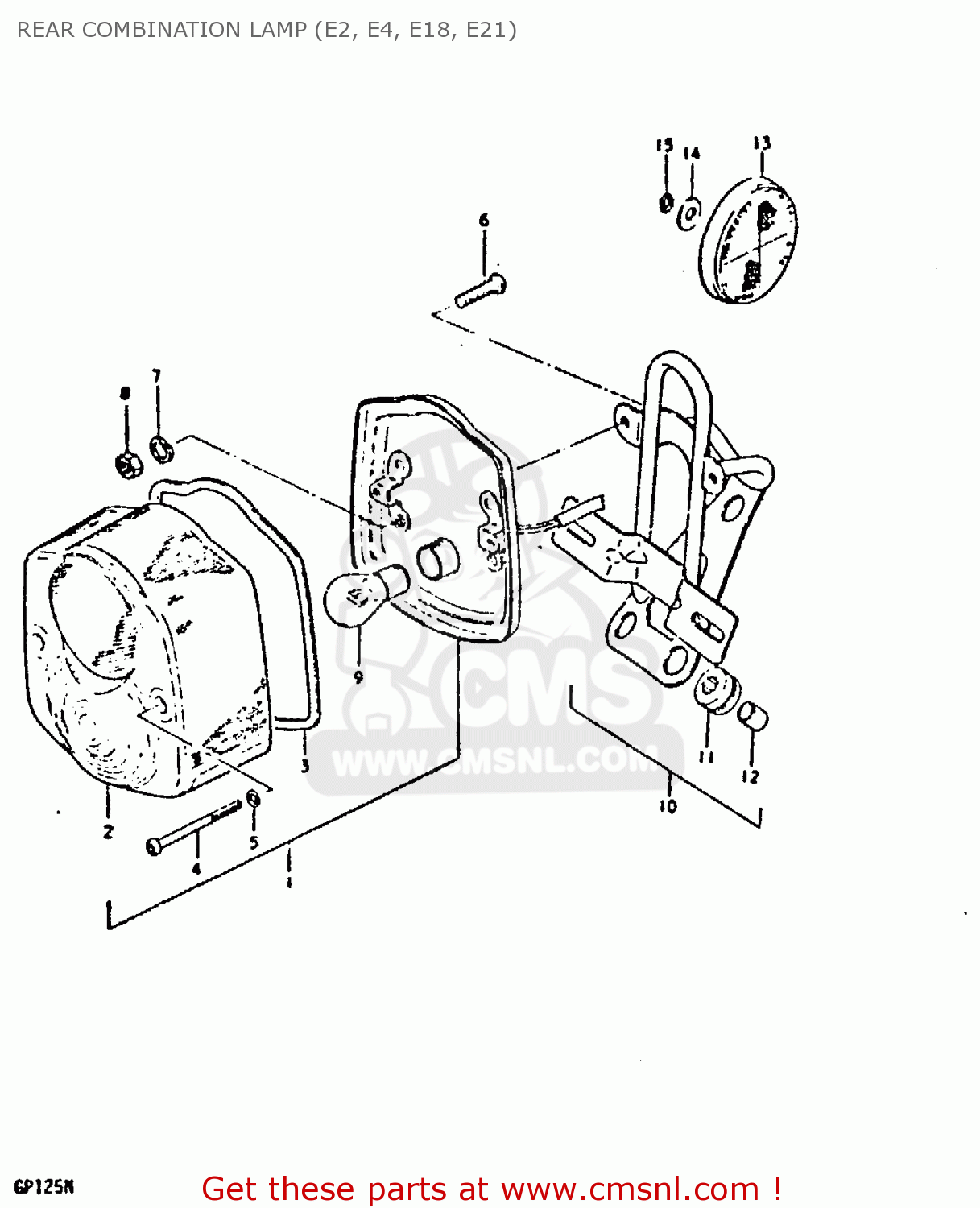

REAR COMBINATION LAMP (E2, E4, E18, E21)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

Rear combination lamp (e2, e4, e18, e21) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

REAR COMBINATION LAMP (E2, E4, E18, E21) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

REAR COMBINATION LAMP (E2, E4, E18, E21) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

3571039180
ref: 1-1
TO 35710-39181

LAMP ASSY, REAR COMBINATION

€ 72.50

2-1

3571246621
ref: 2-1
TO 35712-46622

LENS

€ 39.00

3

3571346620
ref: 3

GASKET (NAS)

€ 8.00

4

3562335110
ref: 4

SCREW

€ 3.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

9

0947106042
ref: 9

BULB (6V,21/5W)

€ 12.50
