TURN SIGNAL LAMP (E22)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

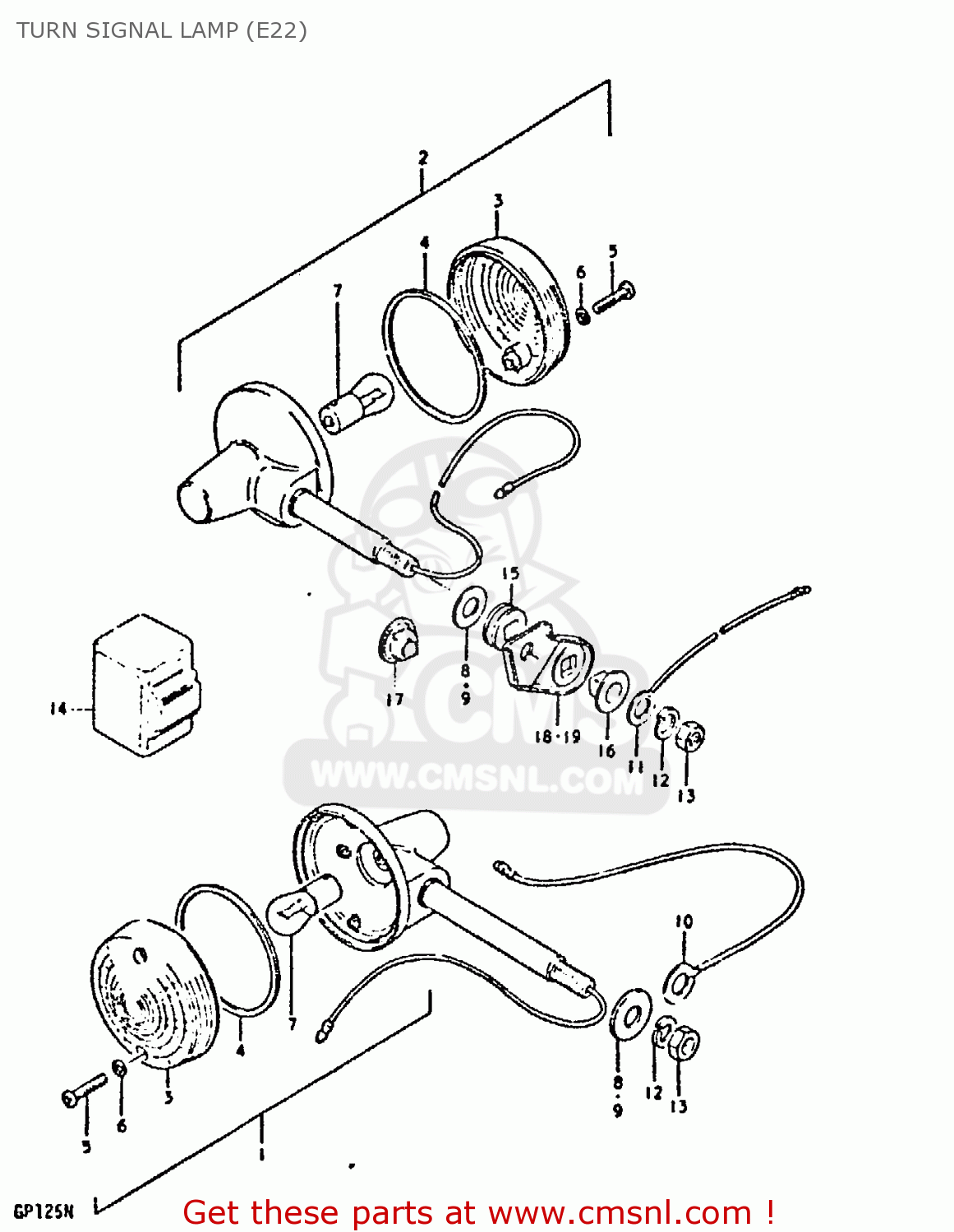

Turn signal lamp (e22) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

TURN SIGNAL LAMP (E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
TURN SIGNAL LAMP (E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
TURN SIGNAL LAMP (E22) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1-1
3560139150999
ref: 1-1
TO 35601-34651-999
LAMP, FRONT TURN SIGNAL
€ 64.50
2-1
3560339150999
ref: 2-1
TO 35603-46791-999
LAMP, REAR TURN SIGNAL
€ 0.00
3
3561228620
ref: 3
LENS
3561228620
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5-1
3562318490
ref: 5-1
SCREW
€ 0.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947106033
ref: 7
EXECUTED LOCALLY
BULB (6V,21W)
€ 0.00
8
0916010006
ref: 8
WASHER (10.5X30X2.3)
0916010006
€ 2.50
9
0916010020
ref: 9
WASHER(10.5X24X1)
0916010020
€ 2.00
14
3861048620
ref: 14
RELAY, TURN SIGNAL
€ 122.50
