FRAME COVER

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

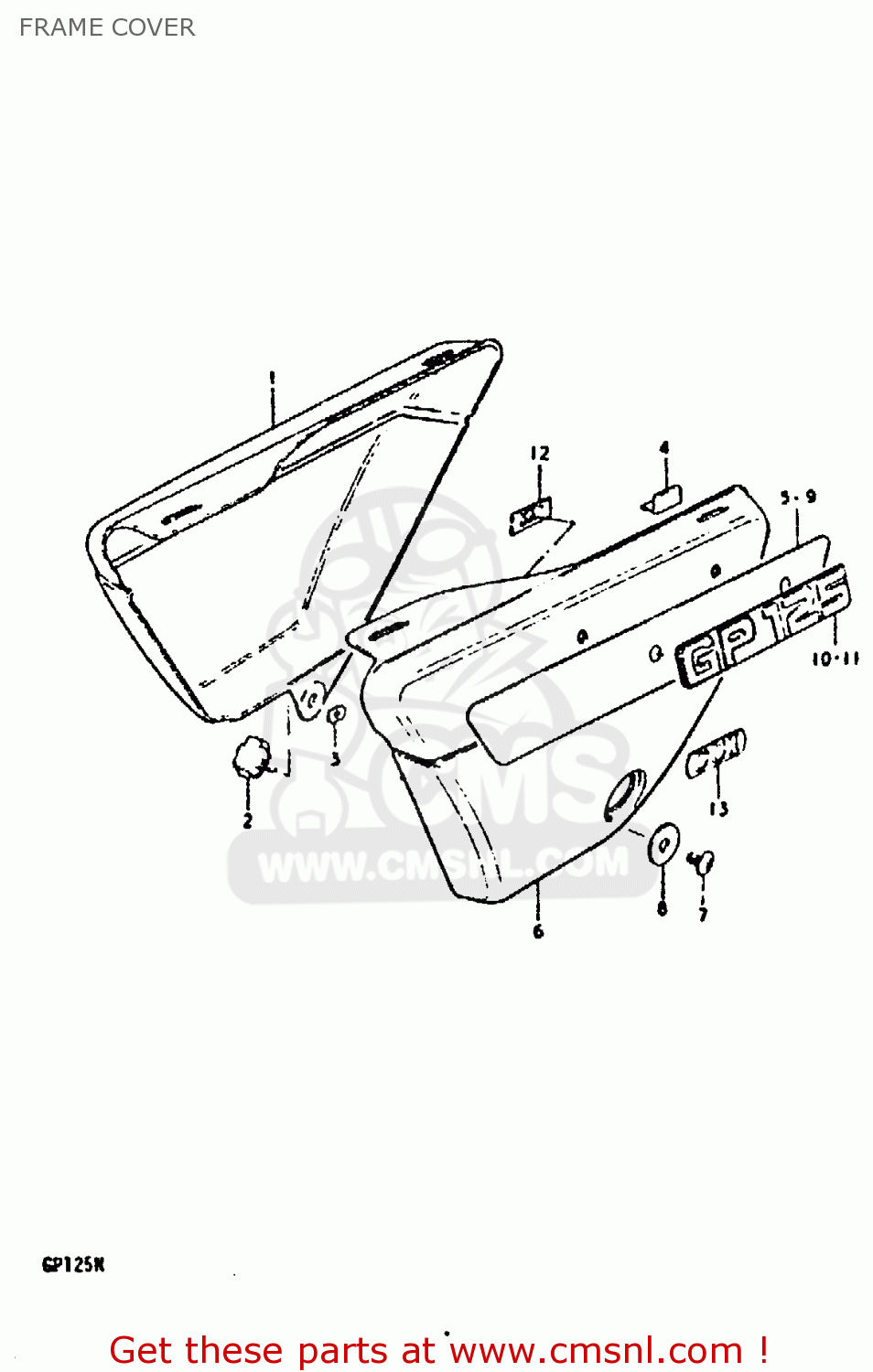

Frame cover diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

FRAME COVER GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
FRAME COVER GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
FRAME COVER GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1-1
471113910000J
ref: 1-1
COVER, FRAME RH
471113910000J
€ 73.00
1-2
471113910004Y
ref: 1-2
COVER, FRAME RH
471113910004Y
€ 73.00
2
4713033101
ref: 2
KNOB,FRAME COVER,R
4713033101
€ 7.50
3
0915208002
ref: 3
STOPPER
€ 0.00
4
4711745000
ref: 4
CUSHION,FRAME COVER
4711745000
€ 1.50
6-1
472113910000J
ref: 6-1
COVER, FRAME LH
472113910000J
€ 52.00
6-2
472113910004Y
ref: 6-2
COVER, FRAME LH
€ 62.50
7
0214206167
ref: 7
SCREW
0214206167
€ 2.00
8
0916006007
ref: 8
WASHER
0916006007
€ 2.00
10-1
6814139100
ref: 10-1
TO 68141-39101 WITH
EMBLEM
€ 9.50
10-2
6814139101
ref: 10-2
EMBLEM
6814139101
€ 9.50
12
0914803002
ref: 12
NUT
0914803002
€ 3.00
13
6817126000
ref: 13
EMBLEM,CCIS
6817126000
€ 4.00
