MAGNETO (E13)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

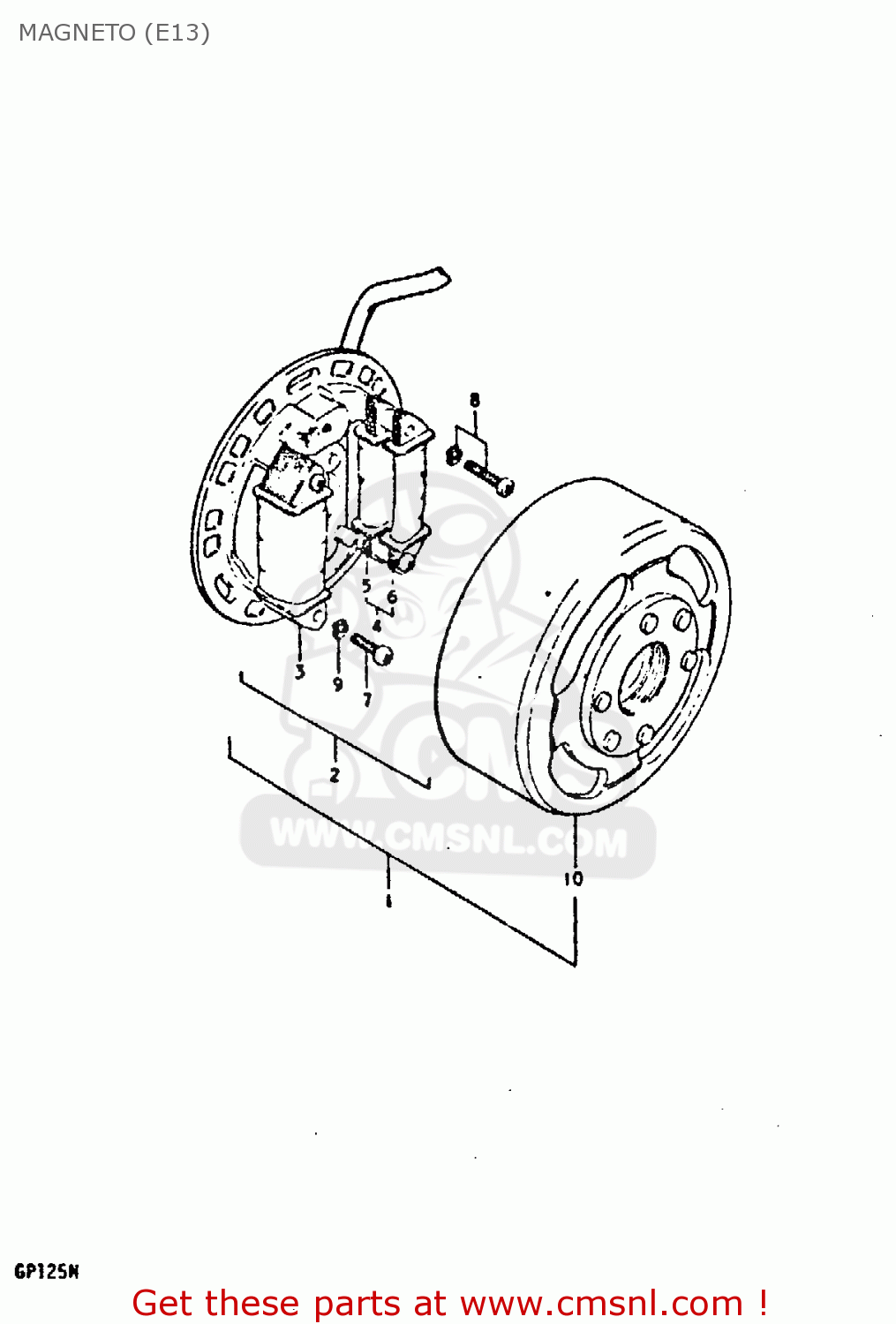

Magneto (e13) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MAGNETO (E13) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
MAGNETO (E13) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
MAGNETO (E13) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
3210039210
ref: 1
MAGNETO ASSY
€ 0.00
2
3210139210
ref: 2
STATOR ASSY
€ 0.00
3
3212048010
ref: 3
COIL,LIGHTING
3212048010
€ 32.50
4
3214039210
ref: 4
COIL, IGNITION
€ 52.00
5
3214039211
ref: 5
COIL, IGNITION (1)
€ 52.00
6
3215039210
ref: 6
COIL, IGNITION (2)
€ 0.00
7
0211204258
ref: 7
SCREW 4X25
0211204258
€ 2.00
8
3235139210
ref: 8
SCREW
€ 2.50
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
3210239210
ref: 10
ROTOR
€ 0.00
