MASTER CYLINDER (GP125C, GP125N)

GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

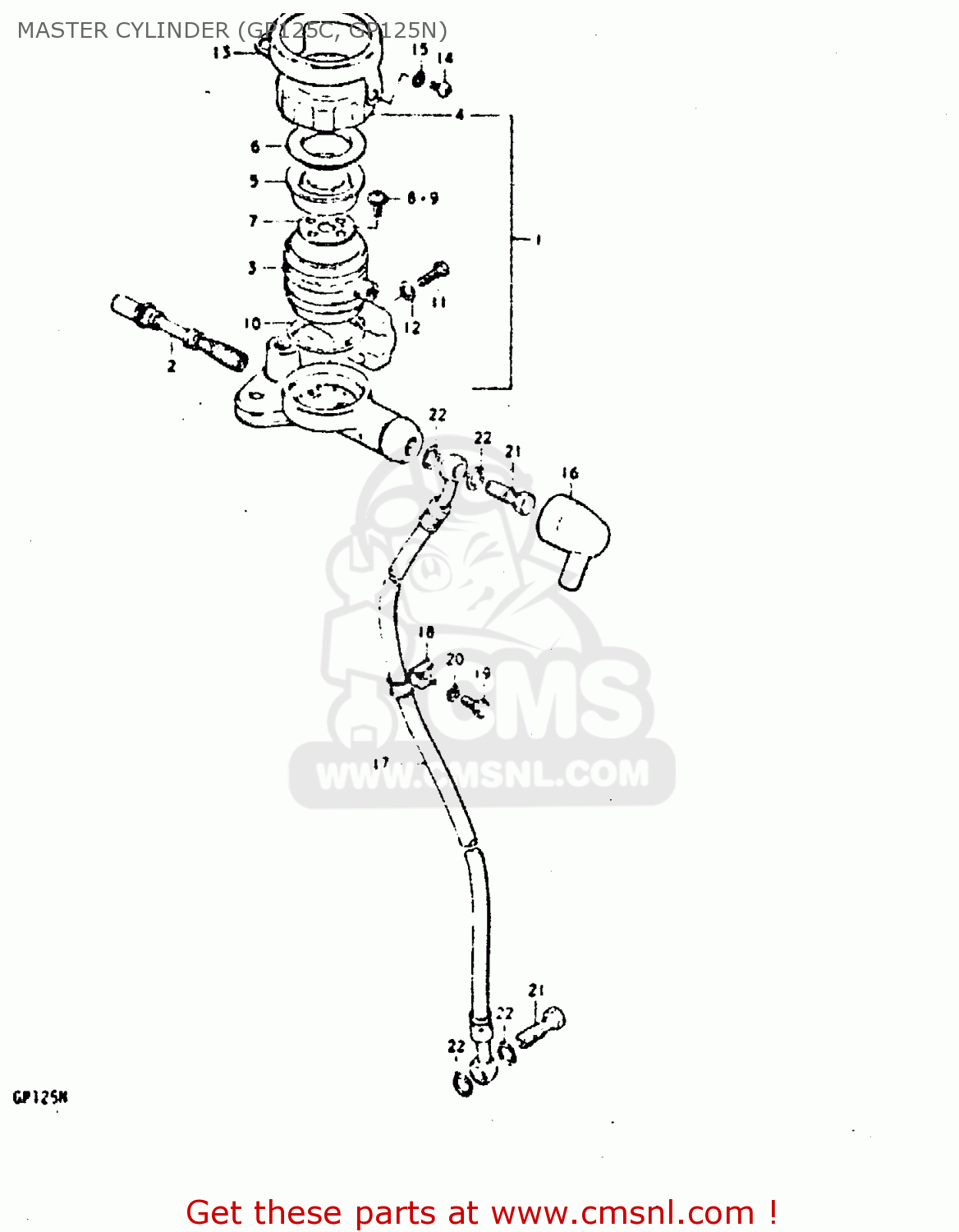

Master cylinder (gp125c, gp125n) diagram GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MASTER CYLINDER (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

MASTER CYLINDER (GP125C, GP125N) GP125 1978 (C) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 E30)

prices are in EUR

ref

part #

description

quantity

1

5960039102
ref: 1

CYLINDER ASSY, MASTER

€ 0.00

2

5960039811
ref: 2
TO 59300-39812

PISTON & CUP SET

€ 41.00

3

5968739100
ref: 3

RESERVOIR

€ 17.50

4

5966918605
ref: 4
TO 59669-33621

CAP

€ 16.50

5

5966718441
ref: 5

DIAPHRAGM

€ 8.50

6

5966818441
ref: 6

PLATE,DIAPHRAGM

€ 3.50

7

5968533601
ref: 7

PLATE

€ 54.00

8

5968833600
ref: 8

SCREW,MASTER CYLINDER

€ 0.00

9

5968833601
ref: 9
FOR 59600-39101

SCREW,MASTER CYLINDER

€ 2.00

10

5968633600
ref: 10

O RING

€ 14.00

11

0110706258
ref: 11

BOLT

€ 2.00

12

0832221068
ref: 12

WASHER

€ 2.00

13

5967339101
ref: 13

LOCK PLATE, CAP

€ 7.50

14

0211205108
ref: 14

SCREW

€ 2.00

15

0832121058
ref: 15

LOCK WASHER

€ 2.00

16

5971118400
ref: 16

BOOT,MASTER CYLINDER

€ 8.50

17

5948039103
ref: 17

HOSE, BRAKE

€ 47.50

18

5924639100
ref: 18

CLAMP,BRAKE HOSE

€ 5.00

19

0110706128
ref: 19

BOLT

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0936010003
ref: 21

BOLT UNION

€ 6.50

22

0916110005
ref: 22

WASHER

€ 2.00
