BATTERY

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

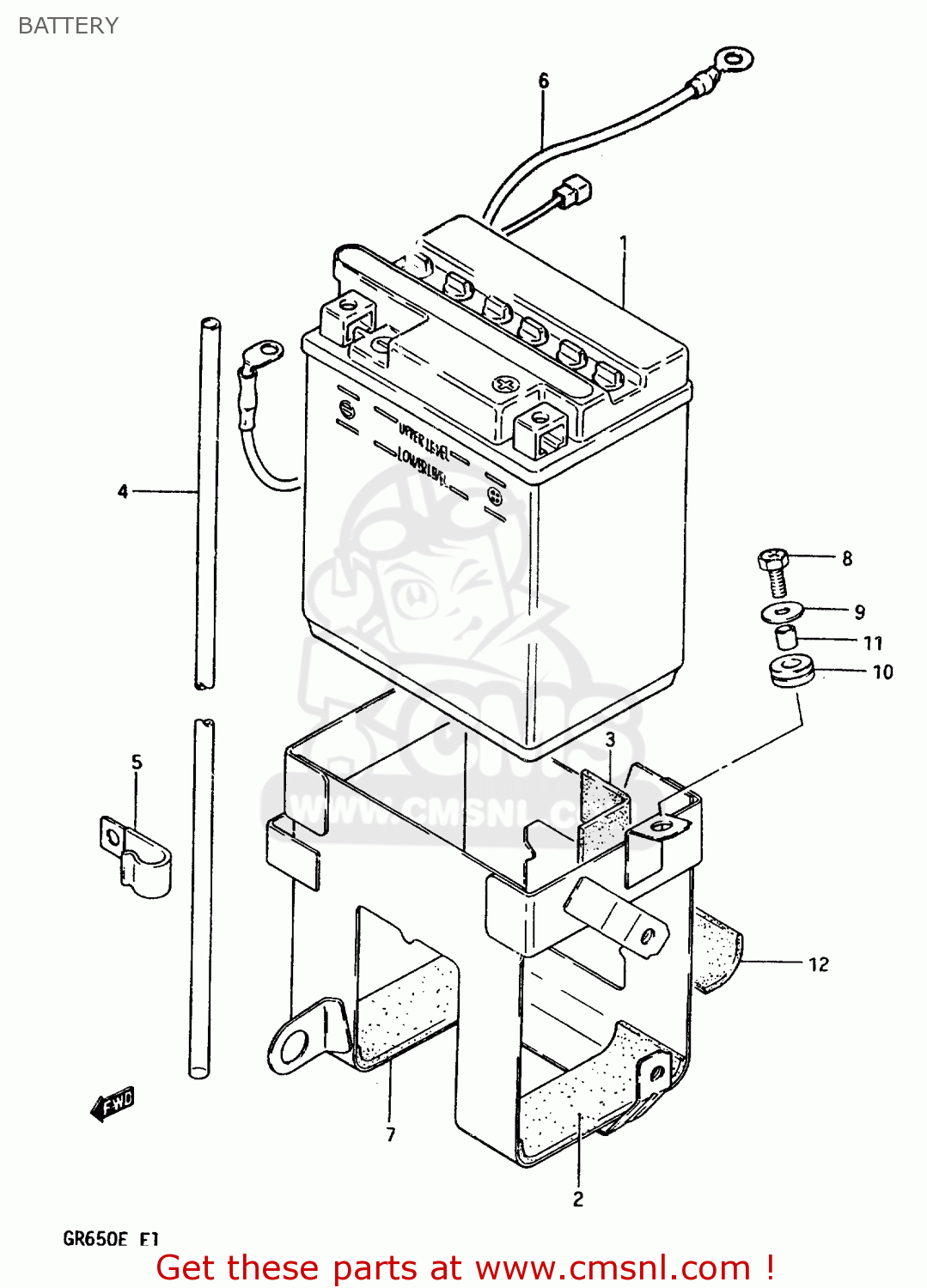

Battery diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3368031003
ref: 4

HOSE,BATTERY EXHAUST

€ 4.50

0940309303
ref: 5

CLAMP

€ 5.50

3385015500
ref: 6

WIRE,STARTER MOTOR LEAD

€ 15.00

4154015500
ref: 7

HOLDER,BATTERY

€ 0.00

0912806039
ref: 8

SCREW

€ 2.00

0916006060
ref: 9

WASHER

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

4154915500
ref: 12

CUSHION,BATTERY HOLDER

€ 0.00
