TRANSMISSION

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

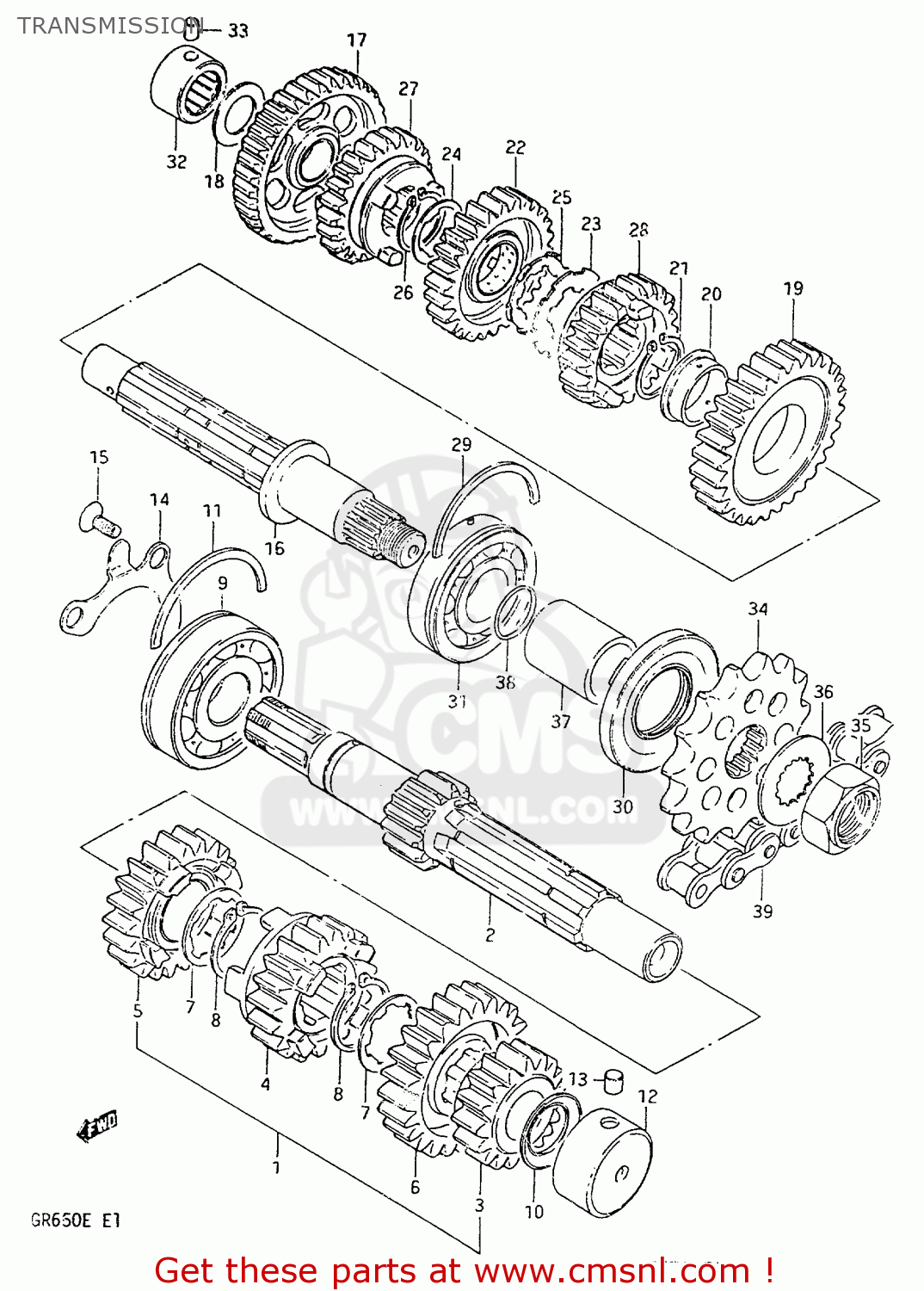

Transmission diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

TRANSMISSION GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
TRANSMISSION GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
TRANSMISSION GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
2412015500
ref: 1
SHAFT,COUNTER
€ 0.00
2
2412115500
ref: 2
SHAFT,COUNTER
€ 162.50
3
2422115500
ref: 3
GEAR,SECOND DRIVE
€ 86.00
4
2423115501
ref: 4
GEAR,THIRD DRIVE
€ 91.00
5
2424015500
ref: 5
GEAR,FOURTH DRIVE
2424015500
€ 73.50
6
2425115500
ref: 6
GEAR,FIFTH DRIVE
€ 106.00
7
0916725012
ref: 7
WASHER,LOCK
0916725012
€ 3.50
8
0938025003
ref: 8
RING,SNAP
0938025003
€ 3.00
9
0926225051
ref: 9
BEARING(25X62X17)
0926225051
€ 59.50
10
0928520006
ref: 10
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
11
0939062006
ref: 11
C-RING
0939062006
€ 5.00
12
0926320049
ref: 12
BEARING(20X34X17.5)
0926320049
€ 58.00
13-1
0422107129
ref: 13-1
E. NO.110990
PIN
0422107129
€ 1.50
13-2
0422107209
ref: 13-2
E.NO.110991
PIN
0422107209
€ 1.50
14
2474115500
ref: 14
RETAINER,BEARING
€ 0.00
15
0212206168
ref: 15
SCREW
0212206168
€ 2.00
16
2413115500
ref: 16
SHAFT,DRIVE
€ 153.00
17
2431015500
ref: 17
GEAR,FIRST DRIVEN
€ 86.00
18
0821120341
ref: 18
WASHER
0821120341
€ 2.00
19
2432115500
ref: 19
GEAR,SECOND DRIVEN
€ 0.00
20
0930125001
ref: 20
BUSHING
€ 12.50
21
0938025003
ref: 21
RING,SNAP
0938025003
€ 3.00
22
2433015500
ref: 22
GEAR,THIRD DRIVEN
€ 106.00
23
0916725013
ref: 23
WASHER,LOCK
0916725013
€ 2.50
24
0916725012
ref: 24
WASHER,LOCK
0916725012
€ 3.50
25
0916925001
ref: 25
WASHER
0916925001
€ 2.00
26
0938025003
ref: 26
RING,SNAP
0938025003
€ 3.00
27
2434115501
ref: 27
GEAR,FOURTH DRIVEN
€ 79.50
28
2435115500
ref: 28
GEAR,FIFTH DRIVEN
€ 91.00
29
0939062006
ref: 29
C-RING
0939062006
€ 5.00
30
0928332024
ref: 30
SEAL,OIL(32X62X7)
0928332024
€ 15.00
31
0926225065
ref: 31
BALL BEARING 25X62X17
0926225065
€ 59.50
32
0926320040
ref: 32
BEARING(20X34X20)
0926320040
€ 42.50
33-1
0422107129
ref: 33-1
E.NO.110990
PIN
0422107129
€ 1.50
33-2
0422107209
ref: 33-2
E.NO. 110991
PIN
0422107209
€ 1.50
34
2751115500
ref: 34
SPROCKET,ENGINE
€ 24.50
35
0915918005
ref: 35
NUT
0915918005
€ 9.50
36
0916722012
ref: 36
WASHER,LOCK
0916722012
€ 1.50
37
0918025065
ref: 37
SPACER (25X32X33.7)
€ 0.00
38
0928025001
ref: 38
O RING(D:1,ID:24.5)
0928025001
€ 2.50
39-1
2760015511
ref: 39-1
MODEL D
CHAIN ASSEMBLY,DRIVE
€ 258.00
39-2
2760034560
ref: 39-2
MODEL E
CHAIN ASSEMBLY,DRIVE
€ 258.00
up

all assemblies
