CYLINDER

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

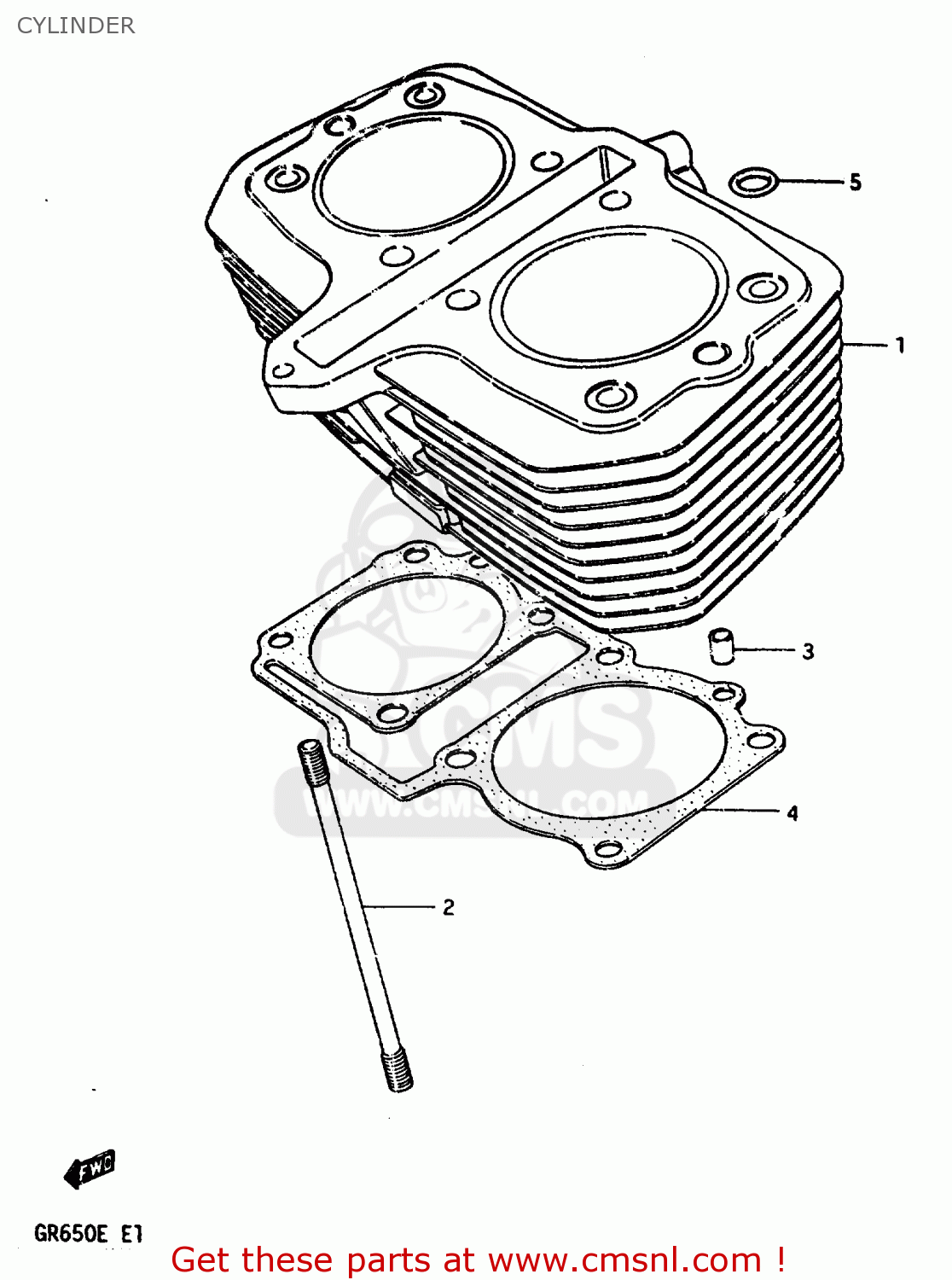

Cylinder diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

CYLINDER GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

CYLINDER GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1121015502
ref: 1-1
MODEL D

CYLINDER

€ 674.00

1-2

1121015504
ref: 1-2
MODEL E

CYLINDER

€ 674.00

2

0910810054
ref: 2

STUD

€ 6.00

3

0421109129
ref: 3

PIN

€ 2.00

4

1124115504
ref: 4

GASKET,CYLINDER (MCA)

€ 39.00

5

0928011005
ref: 5

O RING(D:2.4,ID:11)

€ 4.50
