CYLINDER HEAD COVER

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

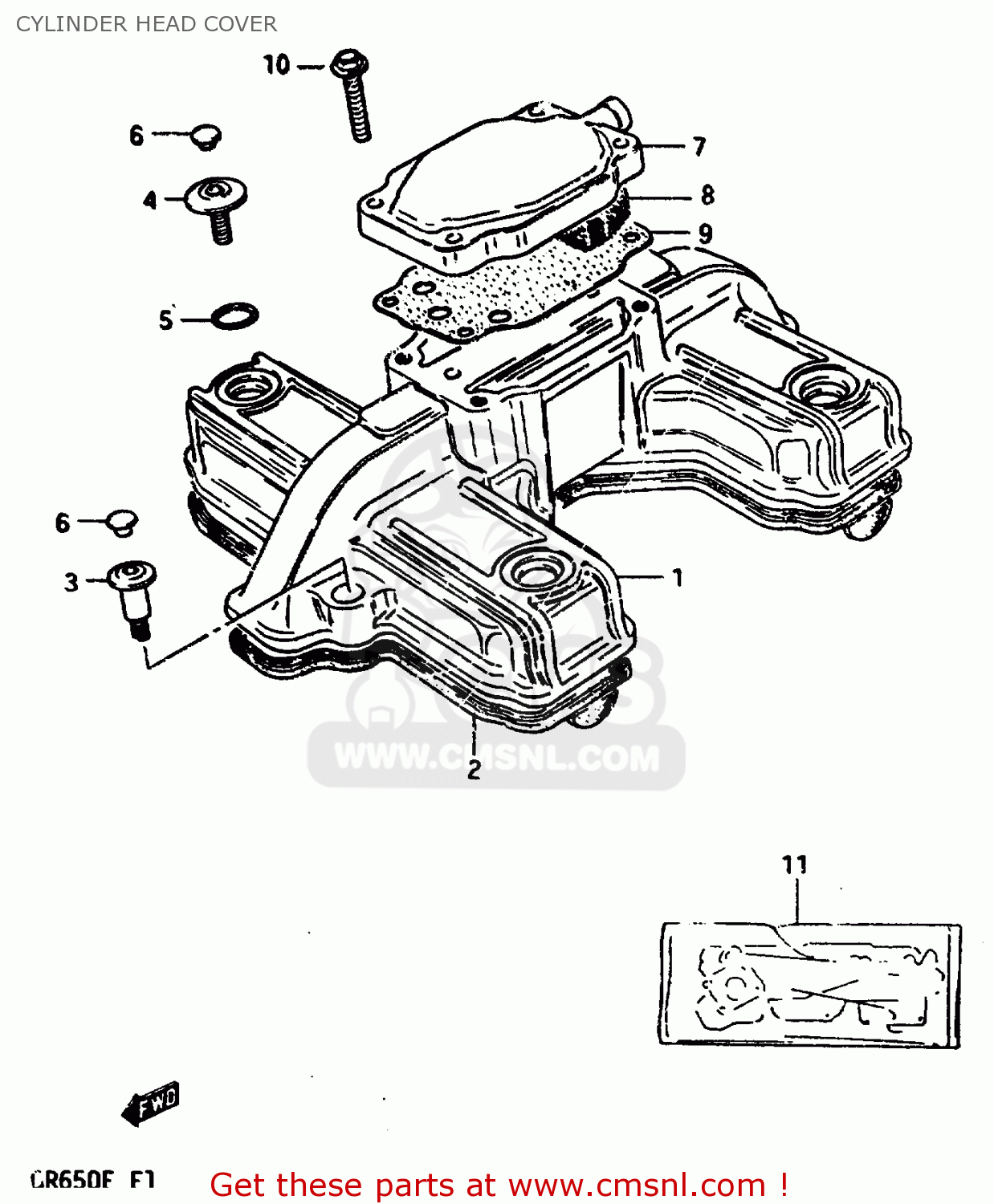

Cylinder head cover diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1117115502
ref: 1

COVER,CYLINDER HEAD

€ 201.00

1117315501
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 32.50

0910607002
ref: 3

BOLT(7X19)

€ 7.00

0910607001
ref: 4

BOLT(7X5.5)

€ 6.00

0928015006
ref: 5

O RING(D:1.9,ID:14.5)

€ 3.00

0925006008
ref: 6

CAP(OD:10)

€ 3.00

1117633201
ref: 7

COVER,BREATHER

€ 25.50

1118615500
ref: 8

SEPARATOR,OIL BREATHER CO

€ 6.00

1117715510
ref: 9

GASKET (NAS)

€ 7.50

0151706258
ref: 10

BOLT

€ 2.50

1140015843
ref: 11
OPT

GASKET

€ 159.00
