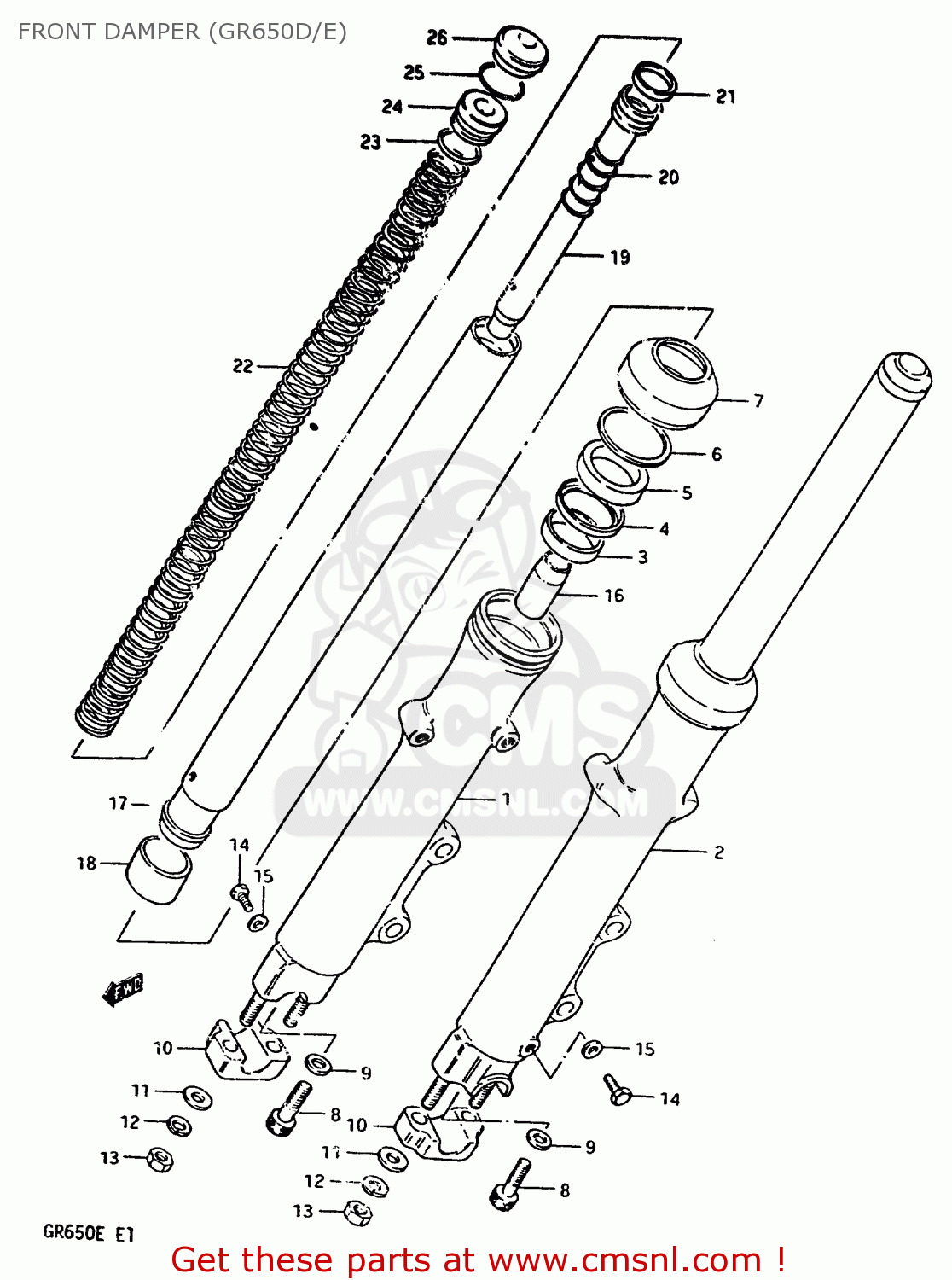

FRONT DAMPER (GR650D/E)

ref

part #

description

quantity

0

5110315510
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

0

5110415510
ref: 0

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5113015500
ref: 1

TUBE,OUTER,RIGHT

€ 227.50

2

5114015500
ref: 2

TUBE,OUTER,LEFT

€ 243.50

3

5115215500
ref: 3

BUSHING,GUIDE

€ 11.50

4

5116845031
ref: 4

SPACER,SEAL

€ 5.00

5

5115333300
ref: 5

OIL SEAL,FRONT FORK

€ 14.00

6

5115645440
ref: 6

CIRCLIP,FORK OIL SEAL

€ 3.50

7

5157134200
ref: 7

BOOT

€ 19.50

8

5114748130
ref: 8

BOLT(8X27)

€ 3.50

9

5114831030
ref: 9

GASKET (NAS)

€ 4.00

10

5113231030
ref: 10

HOLDER,AXLE

€ 31.50

11

0832221088
ref: 11

WASHER

€ 2.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0914008005
ref: 13

NUT (8MM)

€ 1.50

14

0110706088
ref: 14

BOLT

€ 2.50

15

5118331030
ref: 15

GASKET,DRAIN,PLUG (NAS)

€ 4.00

16

5119545030
ref: 16

PIECE,OIL LOCK

€ 16.00

17

5111015500
ref: 17

TUBE,INNER

€ 240.00

18

5112145400
ref: 18

PISTON

€ 22.00

19

5114615500
ref: 19

CYLINDER

€ 30.00

20

5117715500
ref: 20

SPRING,REBOUND

€ 7.00

21

5119615500
ref: 21

RING,FRONT FORK PISTON

€ 0.00

22

5117115510
ref: 22

SPRING

€ 0.00

23

5111731030
ref: 23

O-RING

€ 3.50

24

5117215510
ref: 24

GUIDE,FRONT FORK SPRING

€ 5.50

25

5116947400
ref: 25

RING,STOPPER

€ 2.50

26

5118931230
ref: 26

CAP

€ 6.50
