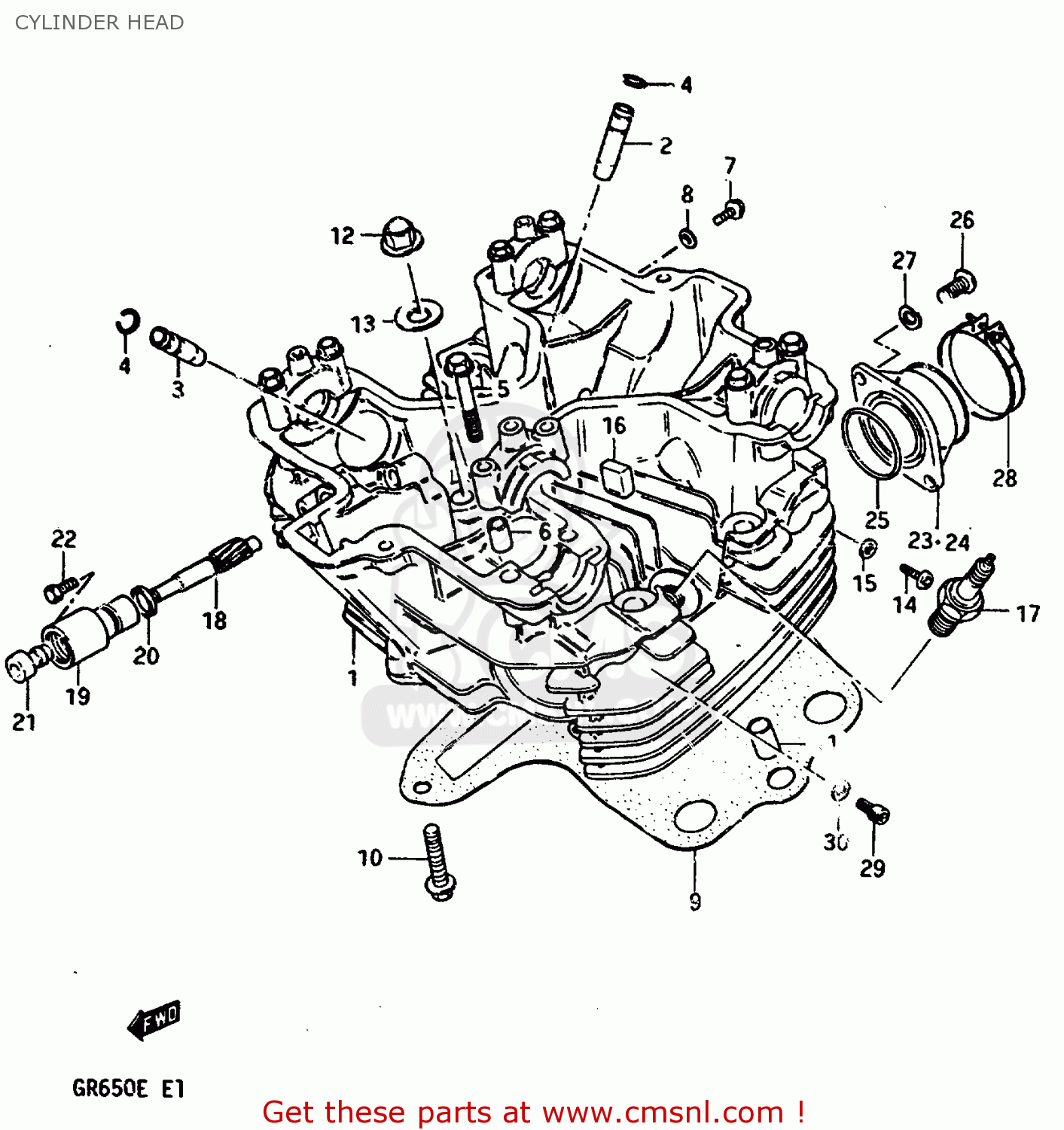

CYLINDER HEAD

ref

part #

description

quantity

1

1110015501
ref: 1

HEAD,CYLINDER

€ 1,000.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306071
ref: 5

BOLT(6X39)

€ 2.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0151706125
ref: 7

BOLT 6X12

€ 2.50

8

0916806015
ref: 8

WASHER

€ 2.00

9-1

1114115501
ref: 9-1
MODEL D

GASKET,CYLINDER HEAD

€ 43.50

9-2

1114115502
ref: 9-2
MODEL E

GASKET,CYLINDER HEAD (NAS)

€ 43.50

10

0151706255
ref: 10

BOLT

€ 2.50

11

0421111189
ref: 11

PIN

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

0211205085
ref: 14

SCREW

€ 2.00

15

0916805010
ref: 15

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

16

1115139300
ref: 16

PAD,CYLINDER HEAD

€ 0.00

17-1

0948200144
ref: 17-1

SPARK PLUG D8EA

€ 3.50

17-2

0948200145
ref: 17-2

SPARK PLUG X24ES-U

€ 3.50

17-3

0948200149
ref: 17-3
E2,E4,E6,E15,E16,E17

SPARK PLUG DR8ES-L

€ 3.50

17-4

0948200223
ref: 17-4
E2,E4,E6,E15,E16,E17

PLUG,SPARK(X24ESR-U)

€ 3.50

18

2643145001
ref: 18

GEAR,TACHOMETER DRIVEN

€ 43.00

19

2644115500
ref: 19

SLEEVE

€ 18.00

20

2645145000A
ref: 20

SEAL,TACHOMETER DRIVEN

€ 4.50

21

0928905002
ref: 21

SEAL,OIL(5X12X8)

€ 11.00

22

0912805101
ref: 22

SCREW(5X12)

€ 1.50

23

1311015500
ref: 23

PIPE,INTAKE,R

€ 43.00

24

1312015500
ref: 24

PIPE,INTAKE,L

€ 33.00

25

0928040003
ref: 25

O-RING (D:2.4 ID:39.7)

€ 3.50

26

0211206205
ref: 26

SCREW

€ 2.00

27

0832121065
ref: 27

LOCK WASHER

€ 2.00

28

0940252306
ref: 28

CLAMP

€ 6.00

29

0712206125
ref: 29

BOLT

€ 3.50

30

0916806015
ref: 30

WASHER

€ 2.00
