Buy Suzuki GR Parts Online


REAR COMBINATION LAMP

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

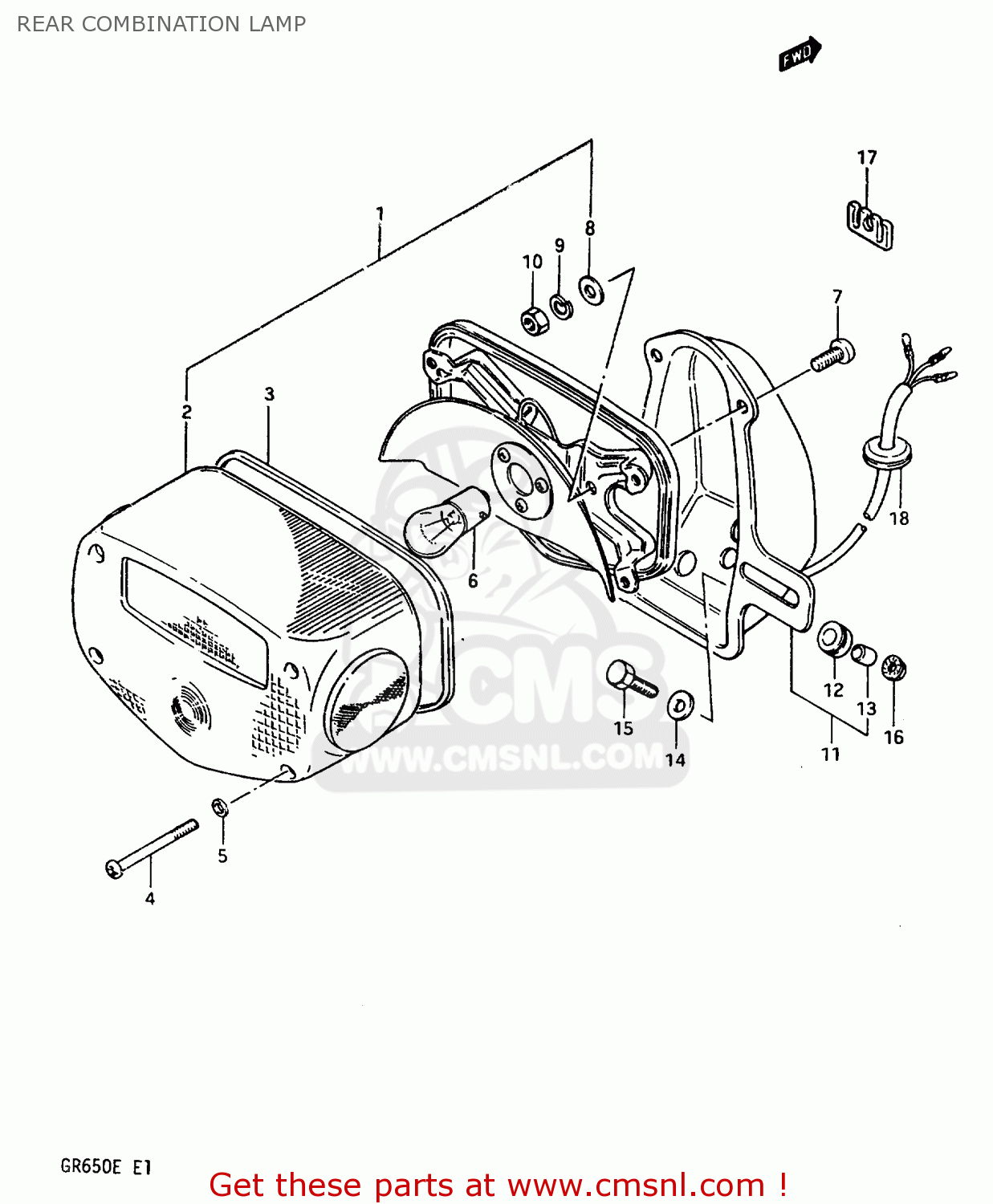

Rear combination lamp diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

REAR COMBINATION LAMP GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
REAR COMBINATION LAMP GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
REAR COMBINATION LAMP GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3572015510
ref: 1
LAMP UNIT, REAR COMBINATION
€ 122.50
2
3571245013
ref: 2
LENS
3571245013
€ 63.00
3
3571345010
ref: 3
GASKET (NAS)
3571345010
€ 9.00
4
0912504002
ref: 4
SCREW (4X55)
0912504002
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112035
ref: 6
EXECUTED LOCALLY
BULB(12V23W)
0947112035
€ 5.50
7
0211206128
ref: 7
SCREW 6X12
0211206128
€ 2.00
8
0832221068
ref: 8
WASHER
0832221068
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0831011068
ref: 10
NUT
0831011068
€ 2.50
11
3573045210
ref: 11
BRACKET UNIT,TAIL LAMP
3573045210
€ 99.00
12
3576522210
ref: 12
CUSHION
3576522210
€ 4.00
13
3576637120
ref: 13
SPACER
3576637120
€ 2.50
14
0916006027
ref: 14
WASHER (6.5X20X1.2)
0916006027
€ 2.00
15
0110706258
ref: 15
BOLT
€ 2.00
16
0831626068
ref: 16
NUT 6MM
0831626068
€ 2.00
17
3661915500
ref: 17
MODEL D
GUIDE,WIRING HARNESS
€ 0.00
18
0930809001
ref: 18
GROMMET
€ 0.00
