GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

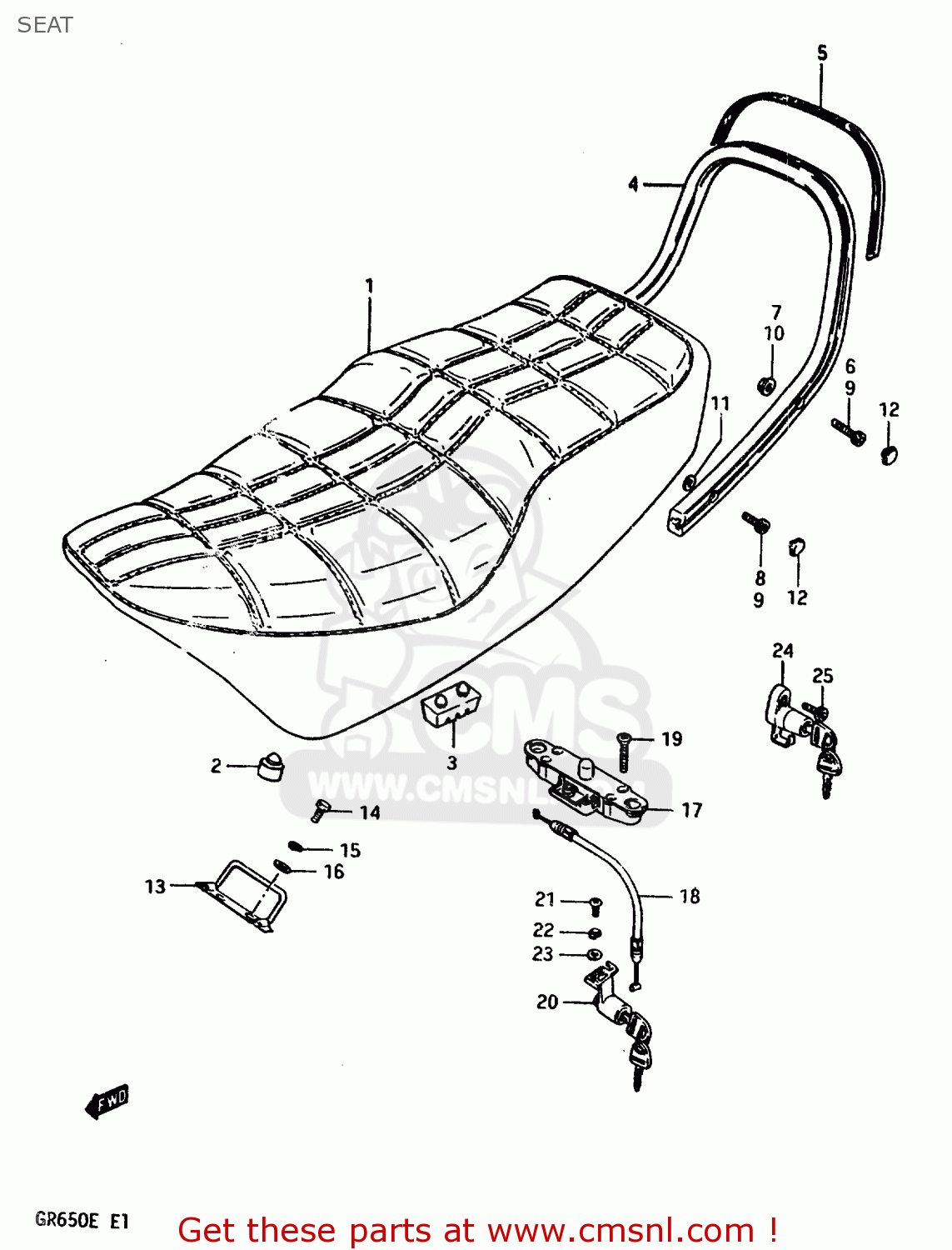

Seat diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

SEAT GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
SEAT GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
SEAT GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
451001551048H
ref: 1-1
MODEL D
SEAT ASSEMBLY
€ 360.50
1-2
451001553048H
ref: 1-2
MODEL E
SEAT ASSY (BLACK)
€ 360.50
1-3
451001550048H
ref: 1-3
MODEL D:E18,E24,E26,
SEAT ASSEMBLY
€ 360.50
1-4
451001552048H
ref: 1-4
MODEL E:E21,E24,E26,
SEAT ASSEMBLY
€ 360.50
2
0932910001
ref: 2
CUSHION
0932910001
€ 2.50
3
0932108009
ref: 3
CUSHION
0932108009
€ 4.00
4-1
4621015510
ref: 4-1
MODEL D
HANDLE,PILLION RIDER
€ 230.00
4-2
4621015520
ref: 4-2
MODEL E
HANDLE,PILLION RIDER
€ 230.00
4-3
4621015500
ref: 4-3
MODEL D E16,E18,E22,
HANDLE, PILLION RIDER
€ 230.00
5
4621434410
ref: 5
RUBBER,PILLION RIDER HANDLE
4621434410
€ 17.50
6
0910608010
ref: 6
MODEL D
BOLT
€ 3.50
7
0831022088
ref: 7
MODEL D
NUT 8MM
0831022088
€ 2.00
8
0910608017
ref: 8
MODEL D
BOLT
€ 3.00
9
0711208256
ref: 9
MODEL E
BOLT
€ 3.50
10
0831626086
ref: 10
MODEL E
NUT
€ 1.50
11
0916008066
ref: 11
WASHER
0916008066
€ 2.50
12
0925006004
ref: 12
CAP(OD:14.5)
0925006004
€ 1.50
13
4521015500
ref: 13
PLATE,SEAT HOOK,FRONT
€ 0.00
14
0110706206
ref: 14
BOLT,M6X1X20
0110706206
€ 2.00
15
0832121066
ref: 15
WASHER,LOCK
0832121066
€ 2.00
16
0832221066
ref: 16
WASHER, LOWER
0832221066
€ 2.00
17
4522013600
ref: 17
LOCK ASSEMBLY,SEAT STRIKER
4522013600
€ 47.00
18
4528015500
ref: 18
CABLE,SEAT LOCK
€ 10.00
19
0212206306
ref: 19
SCREW
€ 2.00
20
4570015500KEY
ref: 20
LOCK ASSEMBLY,SEAT
€ 33.00
21
0211205105
ref: 21
SCREW
€ 2.00
22
0832121055
ref: 22
WASHER,LOCK
0832121055
€ 3.00
23
0832221055
ref: 23
WASHER,5MM
0832221055
€ 2.50
24
9570031300KEY
ref: 24
LOCK SET
9570031300KEY
€ 49.50
25
0910606036
ref: 25
BOLT
€ 2.50
