FRONT MASTER CYLINDER

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

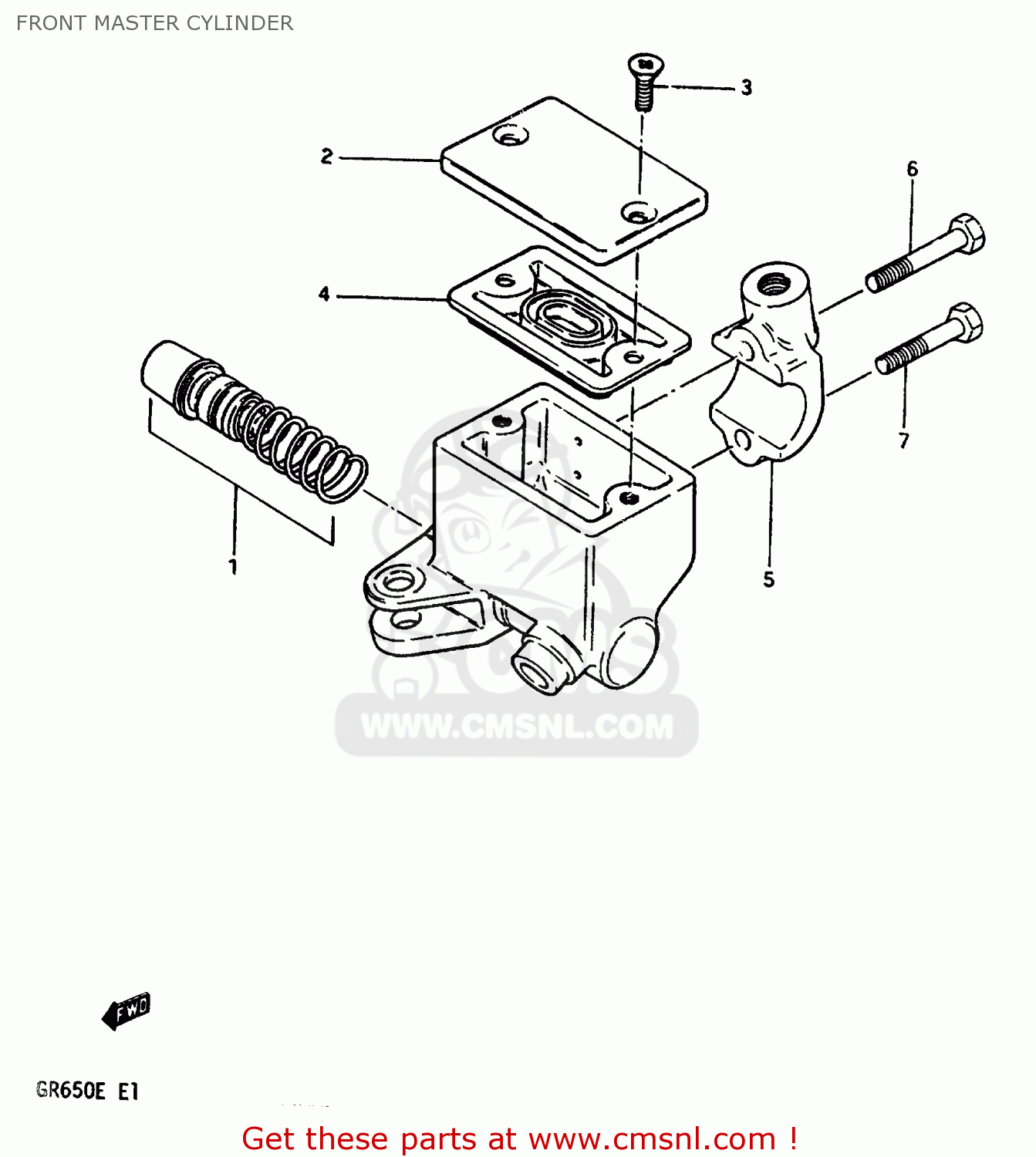

Front master cylinder diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

5960047400
ref: 0

CYLINDER ASSY, MASTER

€ 191.00

5960047410
ref: 0
E4

CYLINDER ASSEMBLY,FRONT MASTER

€ 0.00

5960049820
ref: 1

PISTON & CUP SET

€ 61.00

2-1

5966949300
ref: 2-1

CAP

€ 23.50

2-2

5966949350
ref: 2-2
E4

CAP,MASTER CYLINDER,REAR

€ 15.00

5969149300
ref: 3

SCREW,RESERVOIR CAP

€ 6.50

5966749300
ref: 4

DIAPHRAGM,MASTER CYLINDER

€ 15.50

5967149000
ref: 5

HOLDER

€ 22.50

5969449001
ref: 6

BOLT,MASTER CYLINDER H

€ 3.00

5969349001
ref: 7

BOLT,MASTER CYLINDER H

€ 4.00
