Buy Suzuki GR Parts Online


TURN SIGNAL LAMP (E22)

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

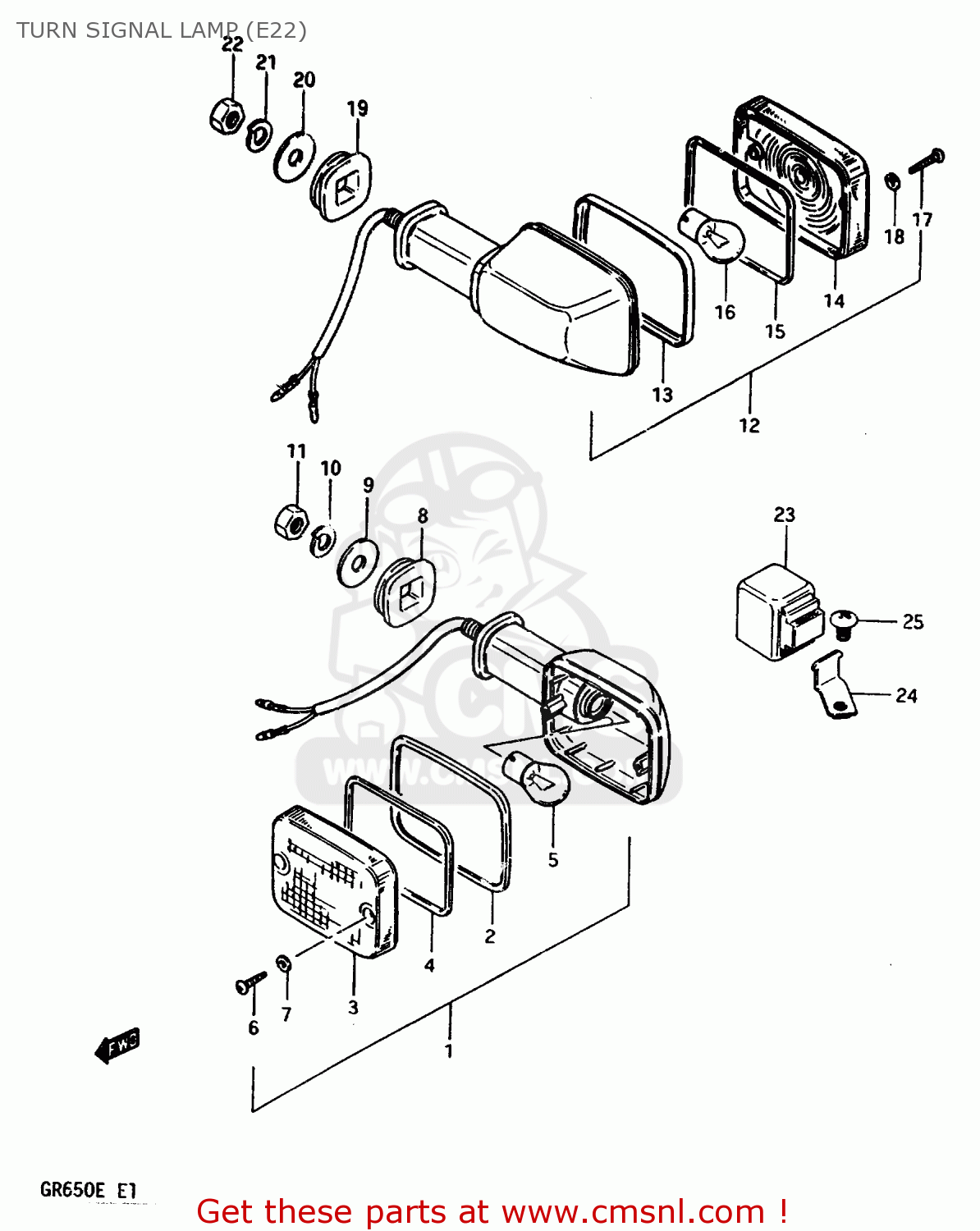

Turn signal lamp (e22) diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

TURN SIGNAL LAMP (E22) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
TURN SIGNAL LAMP (E22) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
TURN SIGNAL LAMP (E22) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3560145180
ref: 1
LAMP ASSY, FRONT TURN SIGNAL
3560145180
€ 86.50
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3
3561249231
ref: 3
LENS
3561249231
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0947112045
ref: 5
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0932015005
ref: 8
CUSHION
0932015005
€ 5.00
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121108
ref: 10
LOCK WASHER
0832121108
€ 2.00
11
0831012108
ref: 11
NUT
0831012108
€ 2.50
12
3560334490
ref: 12
LAMP, REAR TURN SIGNAL
3560334490
€ 87.50
13
3561149230
ref: 13
RIM
3561149230
€ 11.00
14
3565244182
ref: 14
LENS
3565244182
€ 13.00
15
3561349230
ref: 15
GASKET (NAS)
3561349230
€ 5.00
16
0947112045
ref: 16
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0932015004
ref: 19
CUSHION
0932015004
€ 5.00
20
0916010006
ref: 20
WASHER (10.5X30X2.3)
0916010006
€ 2.50
21
0832121108
ref: 21
LOCK WASHER
0832121108
€ 2.00
22
0831012108
ref: 22
NUT
0831012108
€ 2.50
23
3861045090
ref: 23
RELAY, TURN SIGNAL
€ 67.50
24
3862115500
ref: 24
BRACKET,TURN SIGNAL RELAY
€ 0.00
25
0214206105
ref: 25
SCREW
€ 2.00
