REAR WHEEL (GR650XD/XE)

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

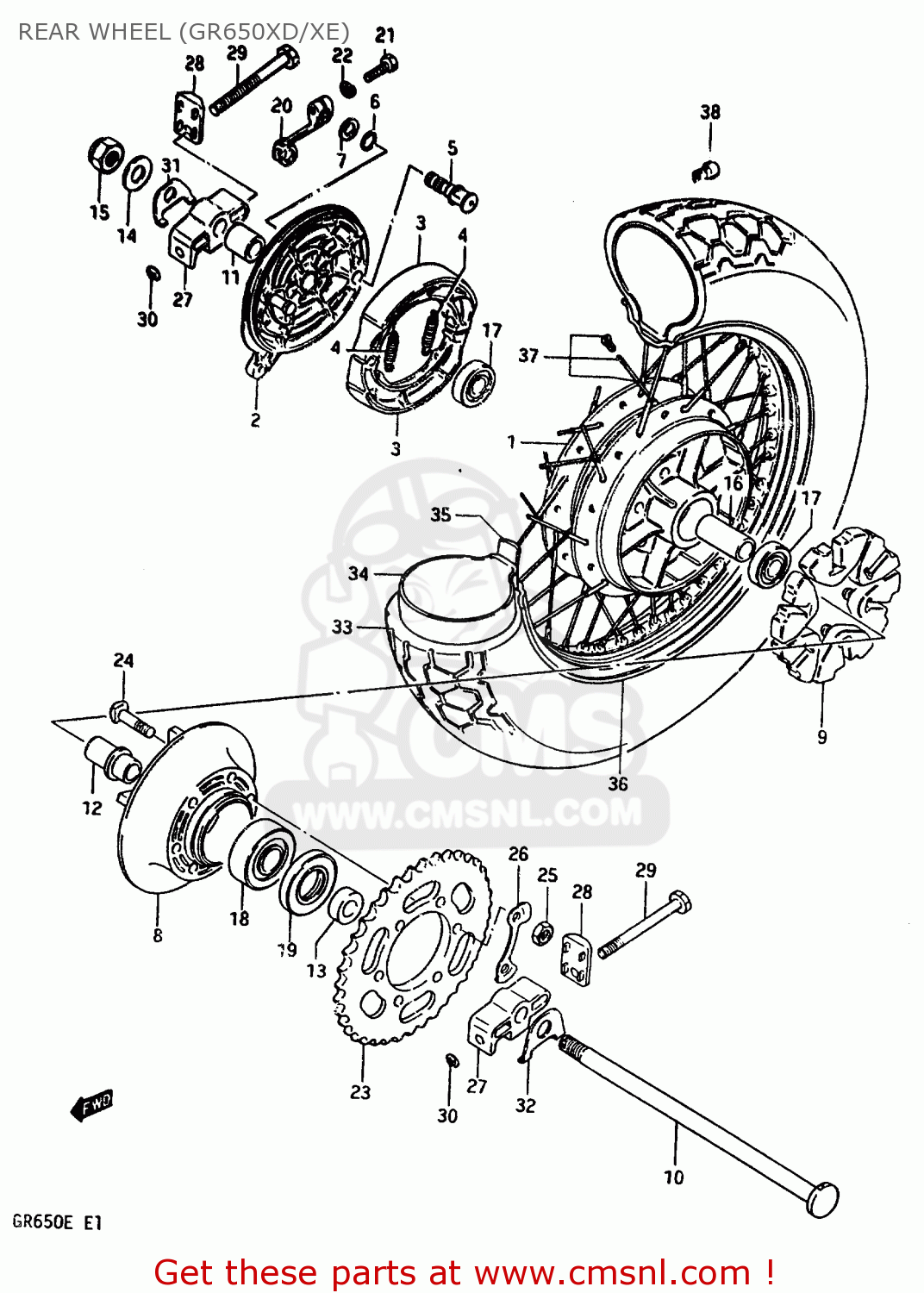

Rear wheel (gr650xd/xe) diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

REAR WHEEL (GR650XD/XE) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
REAR WHEEL (GR650XD/XE) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
REAR WHEEL (GR650XD/XE) GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
6411015500
ref: 1
DRUM,REAR HUB
€ 237.00
2
6421015500
ref: 2
PANEL,REAR HUB
€ 126.00
3
6441011301
ref: 3
SHOE,BRAKE
6441011301
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
5542030000
€ 3.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6461131001
ref: 8
DRUM,REAR SPROCKET MOUNT
€ 140.00
9
6465131000
ref: 9
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
10
6471115501
ref: 10
AXLE,REAR
€ 51.50
11
0918017070
ref: 11
SPACER (17.5X28X35)
€ 13.00
12
6473331300
ref: 12
RETAINER,RR SPROCKET DRUM
6473331300
€ 16.50
13
0918017068
ref: 13
SPACER (17X33X12.5)
€ 0.00
14
0916017013
ref: 14
WASHER (17X30X3.2)
0916017013
€ 2.00
15
0915916002
ref: 15
NUT
0915916002
€ 5.00
16
0918017069
ref: 16
SPACER(17.5X25X70)
0918017069
€ 15.00
17
0814363037
ref: 17
BEARING
0814363037
€ 23.00
18
0811363050
ref: 18
BEARING
0811363050
€ 21.50
19
0928533001
ref: 19
SEAL,OIL(33X62X7)
0928533001
€ 20.00
20
6445115500
ref: 20
LEVER,REAR BRAKE CAM
€ 23.00
21
0110706258
ref: 21
BOLT
€ 2.00
22
0832121068
ref: 22
LOCK WASHER
0832121068
€ 2.50
23-1
6451131760
ref: 23-1
MODEL D
SPROCKET,REAR
6451131760
€ 56.50
23-2
6451115510
ref: 23-2
MODEL E
SPROCKET,REAR (NT:38-530)
6451115510
€ 56.50
24-1
0911910002
ref: 24-1
MODEL D
BOLT
0911910002
€ 3.50
24-2
0910510001
ref: 24-2
MODEL E
BOLT(10X35.5)
0910510001
€ 3.50
25
0914010026
ref: 25
NUT
0914010026
€ 2.00
26
0916910007
ref: 26
WASHER
0916910007
€ 7.50
27
6141115500
ref: 27
BODY,CHAIN ADJUSTER
6141115500
€ 23.50
28
6142115500
ref: 28
PLATE,CHAIN ADJUSTER
6142115500
€ 107.00
29
6143116700
ref: 29
BOLT,CHAIN ADJUSTER
6143116700
€ 4.50
30
0833211046
ref: 30
E RING
€ 2.00
31
6471315500
ref: 31
WASHER,CHAIN ADJUSTER
€ 3.50
32
6471215501
ref: 32
WASHER,CHAIN ADJUSTER
6471215501
€ 3.00
33
6510015510
ref: 33
IRC
TIRE,REAR
€ 0.00
34
6520049100
ref: 34
IRC
TUBE ASSEMBLY,WHEEL,INNER
€ 0.00
35
6526137300
ref: 35
IRC
PROTECTOR,INNER TUBE
6526137300
€ 4.50
36
6531115500
ref: 36
RIM,REAR WHEEL (2.50X16)(
€ 0.00
37
6532015500
ref: 37
SPOKE SET,REAR
€ 41.00
38-1
5541111000
ref: 38-1
BALANCER,WHEEL (B)
€ 4.50
38-2
5541211000
ref: 38-2
BALANCER,WHEEL (30G)
5541211000
€ 8.00
