MUFFLER

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

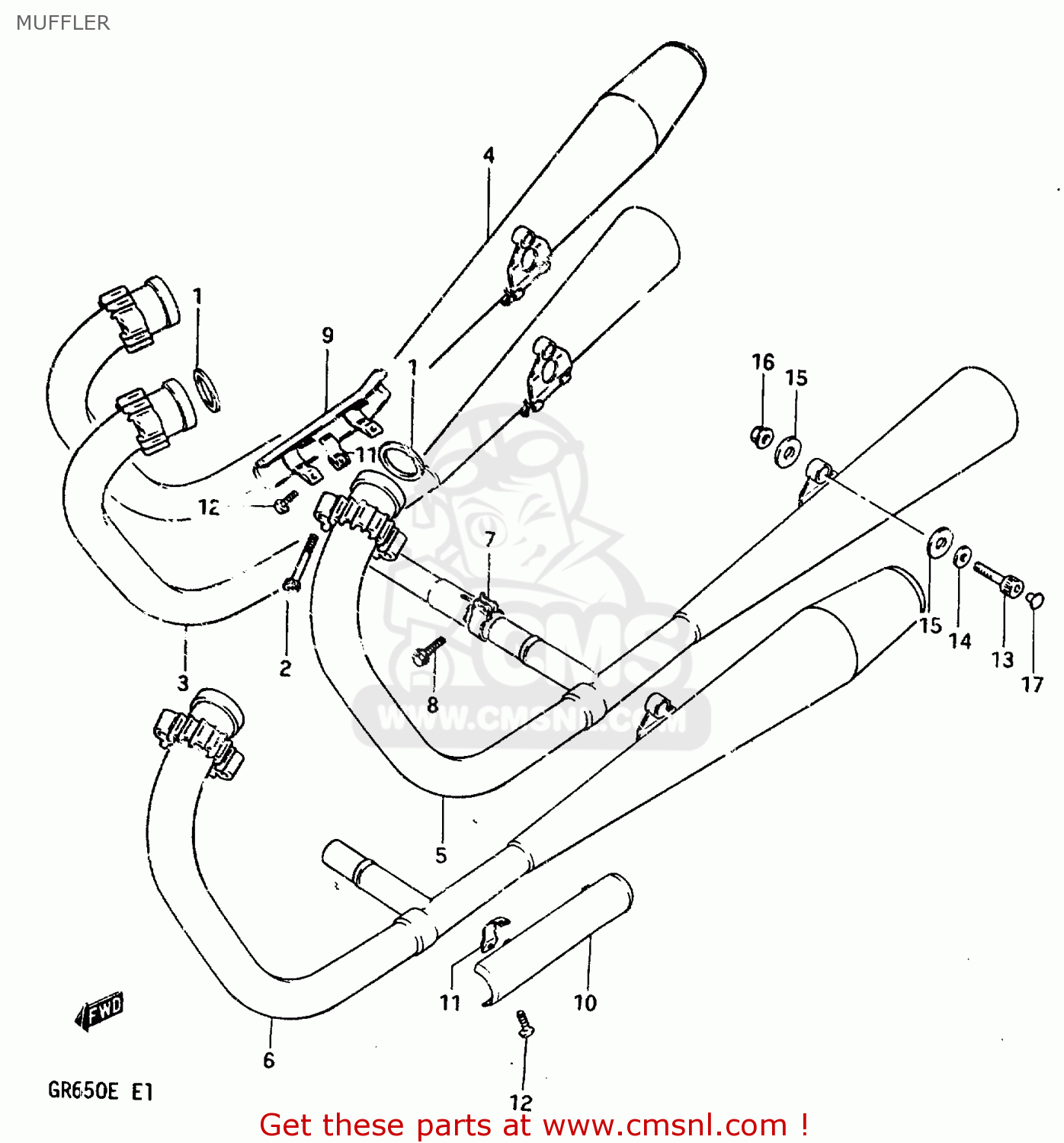

Muffler diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

MUFFLER GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
MUFFLER GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
MUFFLER GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1418111020
ref: 1
GASKET,EXHAUST PIPE (NAS)
1418111020
€ 8.00
2
0910608035
ref: 2
BOLT
0910608035
€ 3.00
3-1
1430115503
ref: 3-1
MUFFLER ASSEMBLY
€ 387.00
3-2
1430115550
ref: 3-2
E2,E4,E21,E22,E25,E2
MUFFLER ASSY,R
1430115550
€ 387.00
4
1430115513
ref: 4
E18
MUFFLER, RH
€ 0.00
5-1
1430215503
ref: 5-1
MUFFLER ASSEMBLY
€ 412.00
5-2
1430215550
ref: 5-2
E2,E4,E21,E22,E25,E2
MUFFLER ASSY,L
1430215550
€ 412.00
6
1430215513
ref: 6
E18
MUFFLER, LH
€ 0.00
7
1477215500
ref: 7
CLAMP,EXHAUST
1477215500
€ 8.50
8
0151706258
ref: 8
BOLT
0151706258
€ 2.50
9
1478015500
ref: 9
COVER,MUFFLER,RIGHT
€ 24.50
10
1479015500
ref: 10
COVER,MUFFLER,LEFT
€ 24.50
11
1478515500
ref: 11
CLAMP,MUFFLER COVER
1478515500
€ 6.00
12
0211205168
ref: 12
SCREW
0211205168
€ 2.50
13
0910610014
ref: 13
BOLT
€ 3.50
14
1441915500
ref: 14
WASHER
€ 3.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
0916010039
€ 2.50
16
0831626107
ref: 16
NUT ,10MM
€ 3.00
17
4357534500
ref: 17
CAP
4357534500
€ 1.50
