Buy Suzuki GR Parts Online


FUEL COCK

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

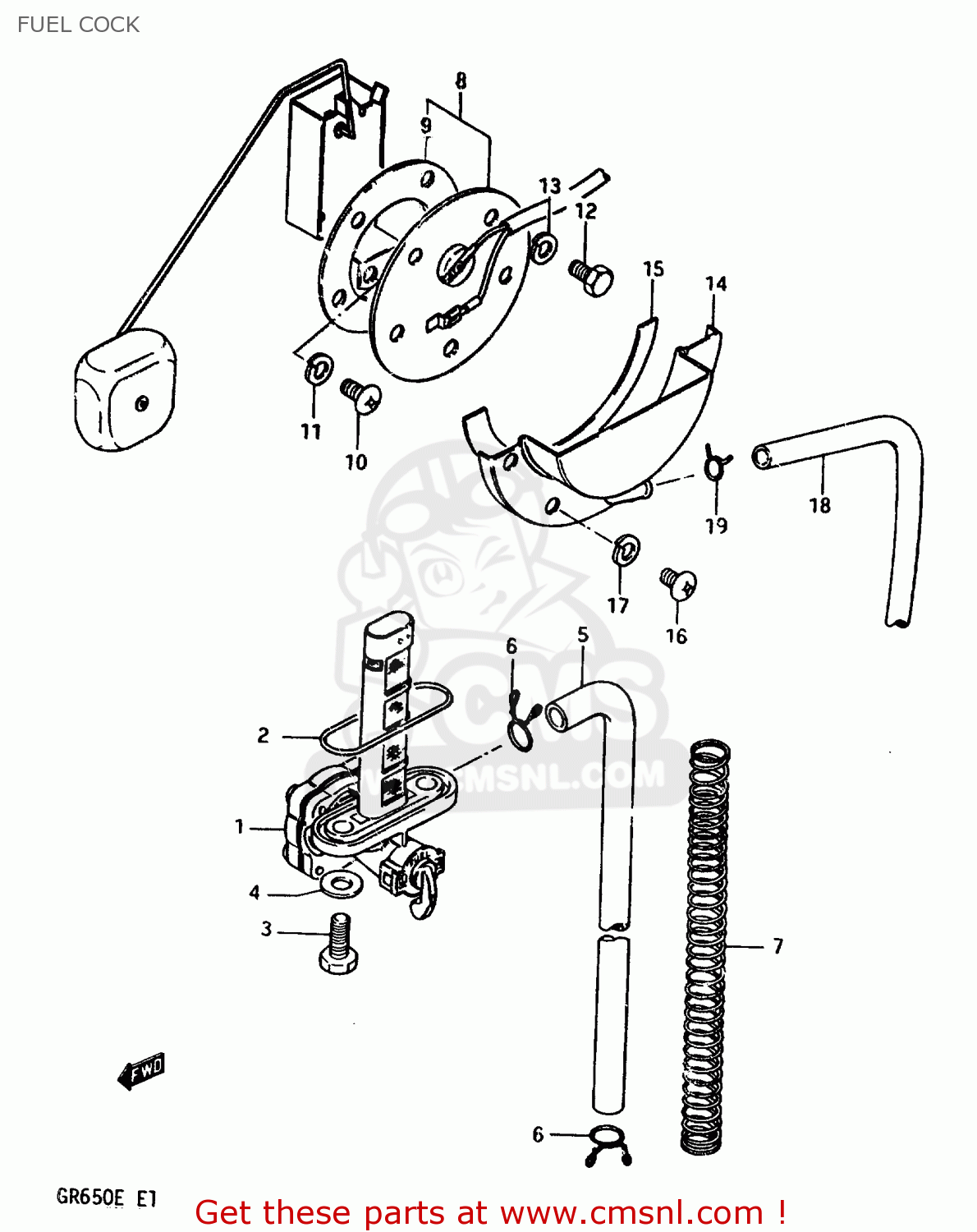

Fuel cock diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

FUEL COCK GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
FUEL COCK GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
FUEL COCK GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4430034470
ref: 1-1
MODEL D
COCK ASSEMBLY,FUEL
€ 104.50
1-2
4430015570
ref: 1-2
MODEL E
COCK ASSEMBLY,FUEL
€ 104.50
2
4434849170
ref: 2
O RING
4434849170
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
0912806006
€ 2.00
4
0916806010
ref: 4
GASKET
0916806010
€ 2.00
5
0934307073
ref: 5
HOSE
0934307073
€ 17.50
6
0940110403
ref: 6
CLIP
0940110403
€ 7.00
7
0944013020
ref: 7
SPRING
€ 14.50
8
3481015501
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 82.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
3482545100
€ 7.00
10
0211205108
ref: 10
SCREW
0211205108
€ 2.00
11
0832121056
ref: 11
LOCK WASHER
0832121056
€ 3.00
12
0110705108
ref: 12
BOLT 5X10
0110705108
€ 1.50
13
0832121056
ref: 13
LOCK WASHER
0832121056
€ 3.00
14
3488534500
ref: 14
PLATE,FUEL DRAIN
3488534500
€ 20.50
15
3488834500
ref: 15
GASKET (NAS)
3488834500
€ 8.50
16
0211205086
ref: 16
SCREW
€ 2.00
17
0832121056
ref: 17
LOCK WASHER
0832121056
€ 3.00
18
0934305165
ref: 18
HOSE,FUEL
0934305165
€ 13.00
19
0940108402
ref: 19
CLIP
0940108402
€ 1.50
