STARTER CLUTCH

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

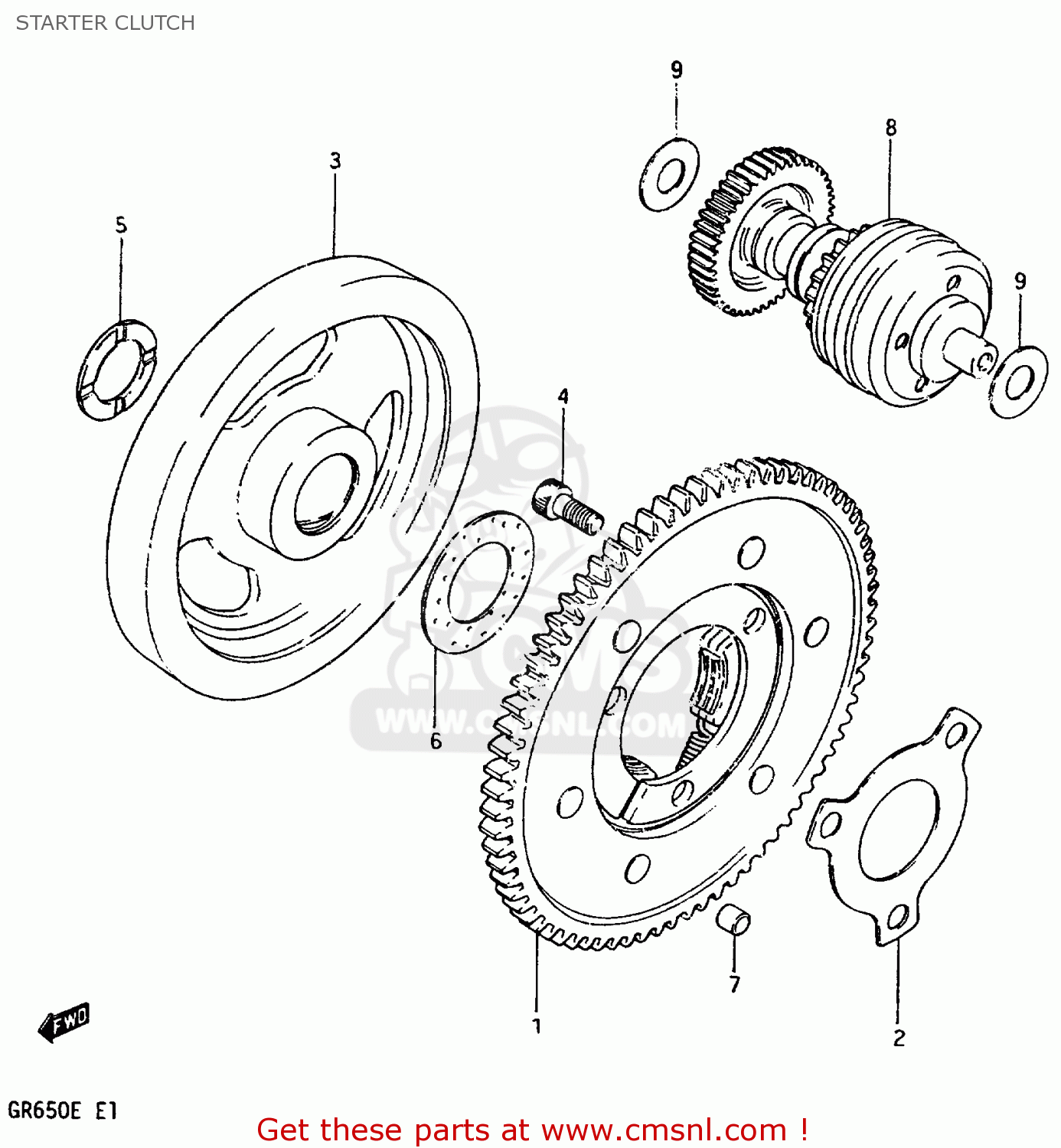

Starter clutch diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1262515502
ref: 1-1
E.NO.107495

GEAR,STARTER

€ 181.00

1-2

1262515503
ref: 1-2
E. NO. 107496

GEAR,STARTER

€ 181.00

1264815500
ref: 2

SHIM

€ 0.00

1265515501
ref: 3

FLYWHEEL,CLUTCH

€ 87.00

0910608043
ref: 4

BOLT

€ 3.00

0916027005
ref: 5

WASHER(27X40X2.5)

€ 10.00

0916027006
ref: 6

WASHER (27X48X1)

€ 0.00

7-1

0926106004
ref: 7-1
E. NO. 107495

PIN(6X8.8)

€ 1.50

7-2

0926108004
ref: 7-2
E. NO. 107496

PIN

€ 0.00

3137015510
ref: 8

PINION GEAR ASSEMBLY,STARTER

€ 233.50

3137115510
ref: 9

SHIM

€ 2.00
