CARBURETOR

GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

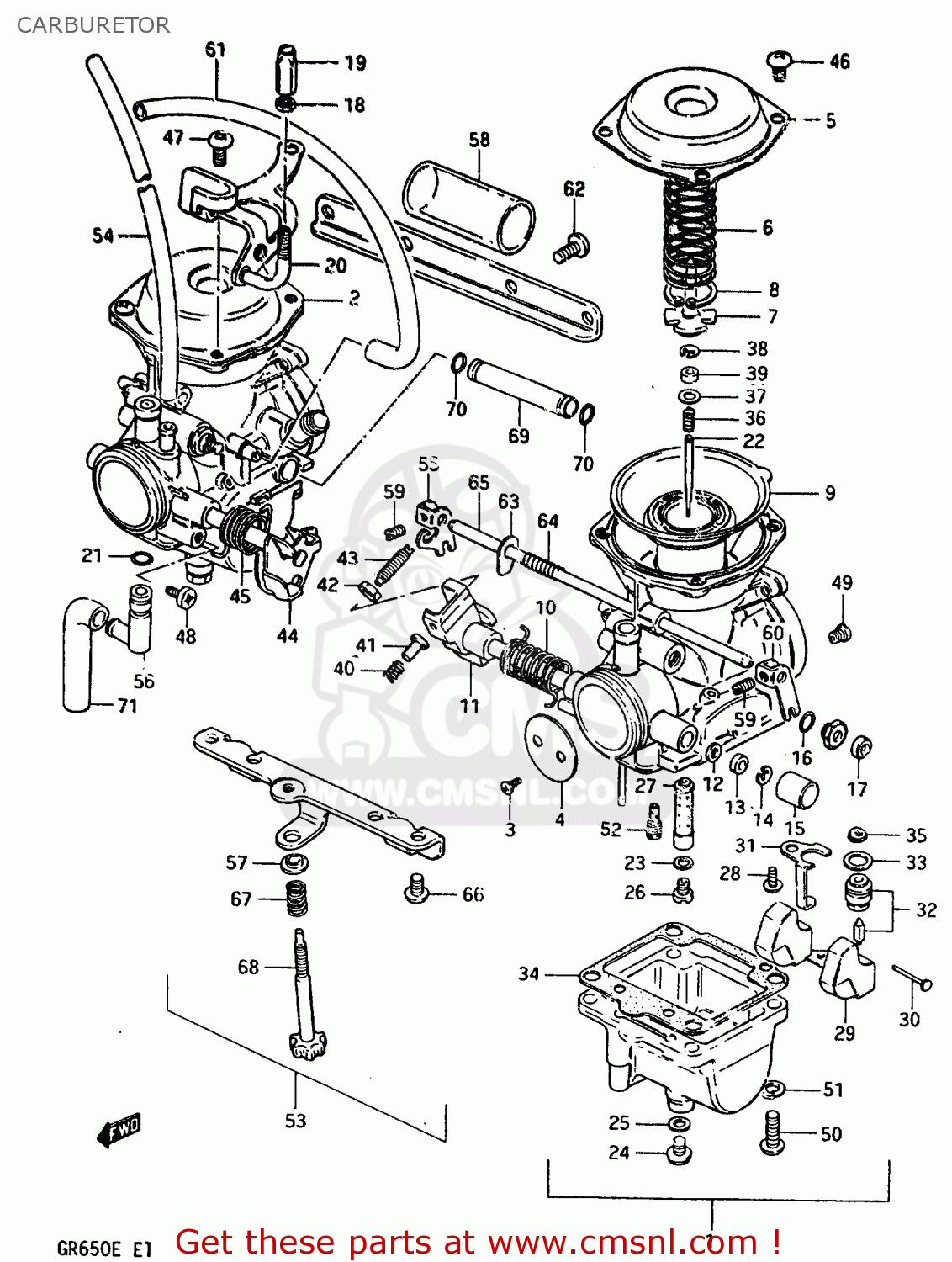

Carburetor diagram GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)

CARBURETOR GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
CARBURETOR GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
CARBURETOR GR650 1984 (E) (E01 E04 E15 E16 E17 E21 E22 E24 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1320115500
ref: 1-1
MODEL D
CARBURETOR ASSY, LH
€ 0.00
1-2
1320115550
ref: 1-2
MODEL E
CARBURETOR ASSY, LH
€ 0.00
2-1
1320215500
ref: 2-1
MODEL D
CARBURETOR ASSY, RH
€ 0.00
2-2
1320215550
ref: 2-2
MODEL E
CARBURTOR ASSY, RH
€ 0.00
3
1360444080
ref: 3
SCREW
1360444080
€ 3.50
4
1355115510
ref: 4
VALVE,THROTTLE (90)
€ 0.00
5
1350215510
ref: 5
COVER,DIAPHRAGM
€ 0.00
6
1350315510
ref: 6
SPRING,DIAPHRAGM
€ 7.50
7
1338944030
ref: 7
HOLDER,GUIDE
1338944030
€ 10.50
8
1358144030
ref: 8
E RING
1358144030
€ 6.50
9
1350015510
ref: 9
DIAPHRAGM,CARBURETOR
€ 140.00
10
1357315510
ref: 10
LH
SPRING
€ 0.00
11
1355015510
ref: 11
LH
SHAFT ASSEMBLY
€ 0.00
12
1365151010
ref: 12
SEAL
1365151010
€ 4.00
13
1355747070
ref: 13
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
14
1361744080
ref: 14
E RING
1361744080
€ 3.50
15
1357847070
ref: 15
CAP
1357847070
€ 5.50
16
1327847090
ref: 16
O RING
1327847090
€ 2.00
17
1368231210
ref: 17
CAP,STARTER VALVE
1368231210
€ 5.00
18
1366103010
ref: 18
RH
NUT
1366103010
€ 3.50
19
1357798011
ref: 19
RH
ADJUSTER
€ 0.00
20
1362115510
ref: 20
RH
BRACKET
€ 0.00
21
1327815510
ref: 21
O-RING
€ 2.00
22
1338315500
ref: 22
NEEDLE, JET (5C08-3)
€ 11.50
23
1333244080
ref: 23
WASHER,NEEDLE NOZZLE
€ 2.50
24
1324744080
ref: 24
PLUG,DRAIN
1324744080
€ 9.50
25
1324644080
ref: 25
GASKET (NAS)
1324644080
€ 3.50
26
0949126004
ref: 26
JET 130
0949126004
€ 11.50
27
0949400406
ref: 27
JET, NEEDLE (Y-8)
€ 18.50
28
0211204068
ref: 28
SCREW 4X6
0211204068
€ 2.00
29
1325044080
ref: 29
FLOAT
1325044080
€ 31.00
30
1325492311
ref: 30
PIN,FLOAT
1325492311
€ 2.00
31
1337311400
ref: 31
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
32
1337011400
ref: 32
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
33
1337444080
ref: 33
O-RING,NEEDLE VALVE
1337444080
€ 6.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
35
1337665010
ref: 35
FILTER
€ 6.50
36
1338832400
ref: 36
SPRING
€ 0.00
37
1338244030
ref: 37
WASHER
1338244030
€ 3.50
38
1339431210
ref: 38
CLIP,NEEDLE
1339431210
€ 3.50
39
1338744030
ref: 39
RING
1338744030
€ 5.00
40
1326844110
ref: 40
LH
SPRING,THROTTLE SCREW
€ 0.00
41
1356344110
ref: 41
LH
PIN,THROTTLE LEVER
€ 0.00
42
1360747070
ref: 42
LH
NUT
1360747070
€ 4.00
43
1360547080
ref: 43
LH
SCREW
1360547080
€ 7.00
44
1355015500
ref: 44
RH
SHAFT ASSEMBLY
€ 0.00
45
1357315500
ref: 45
RH
SPRING
€ 0.00
46
0211205088
ref: 46
LH:4,RH:2
SCREW
0211205088
€ 2.00
47
0211205108
ref: 47
RH
SCREW
0211205108
€ 2.00
48
1360545410
ref: 48
RH
SCREW
€ 8.00
49
0949326005
ref: 49
JET
0949326005
€ 11.50
50
0211205168
ref: 50
SCREW
0211205168
€ 2.50
51
0832121058
ref: 51
LOCK WASHER
0832121058
€ 2.00
52
0949242010
ref: 52
JET,PILOT(42.5)
0949242010
€ 8.50
53
1321015510
ref: 53
CARBURETOR ASSEMBLY
€ 0.00
54
1368702340
ref: 54
HOSE
€ 14.00
55
1342244500
ref: 55
LEVER,STARTER
1342244500
€ 16.00
56
1368515510
ref: 56
PIPE
€ 0.00
57
1345215510
ref: 57
RING,ADJUSTER
€ 0.00
58
1368415510
ref: 58
HOSE
€ 6.50
59
1360509300
ref: 59
SCREW,THROTTLE ADJUST
1360509300
€ 3.50
60
1342244080
ref: 60
LEVER
1342244080
€ 10.00
61
1368311400
ref: 61
HOSE
€ 13.00
62
0211205128
ref: 62
SCREW
€ 2.50
63
1342744460
ref: 63
WASHER,STARTER PLUNGER
€ 0.00
64
1343744500
ref: 64
SPRING,STARTER
€ 0.00
65
1341044500
ref: 65
SHAFT,STARTER
€ 0.00
66
0211206128
ref: 66
SCREW 6X12
0211206128
€ 2.00
67
1326851010
ref: 67
THROTTLE SCREW
€ 1.50
68
1326701400
ref: 68
SCREW,THROTTLE STOP
1326701400
€ 10.00
69
1368515500
ref: 69
PIPE,CARBURETOR
€ 0.00
70
1344294350
ref: 70
O RING
€ 1.50
71
1368315510
ref: 71
HOSE,CARBURETOR
€ 21.00
