BATTERY
GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

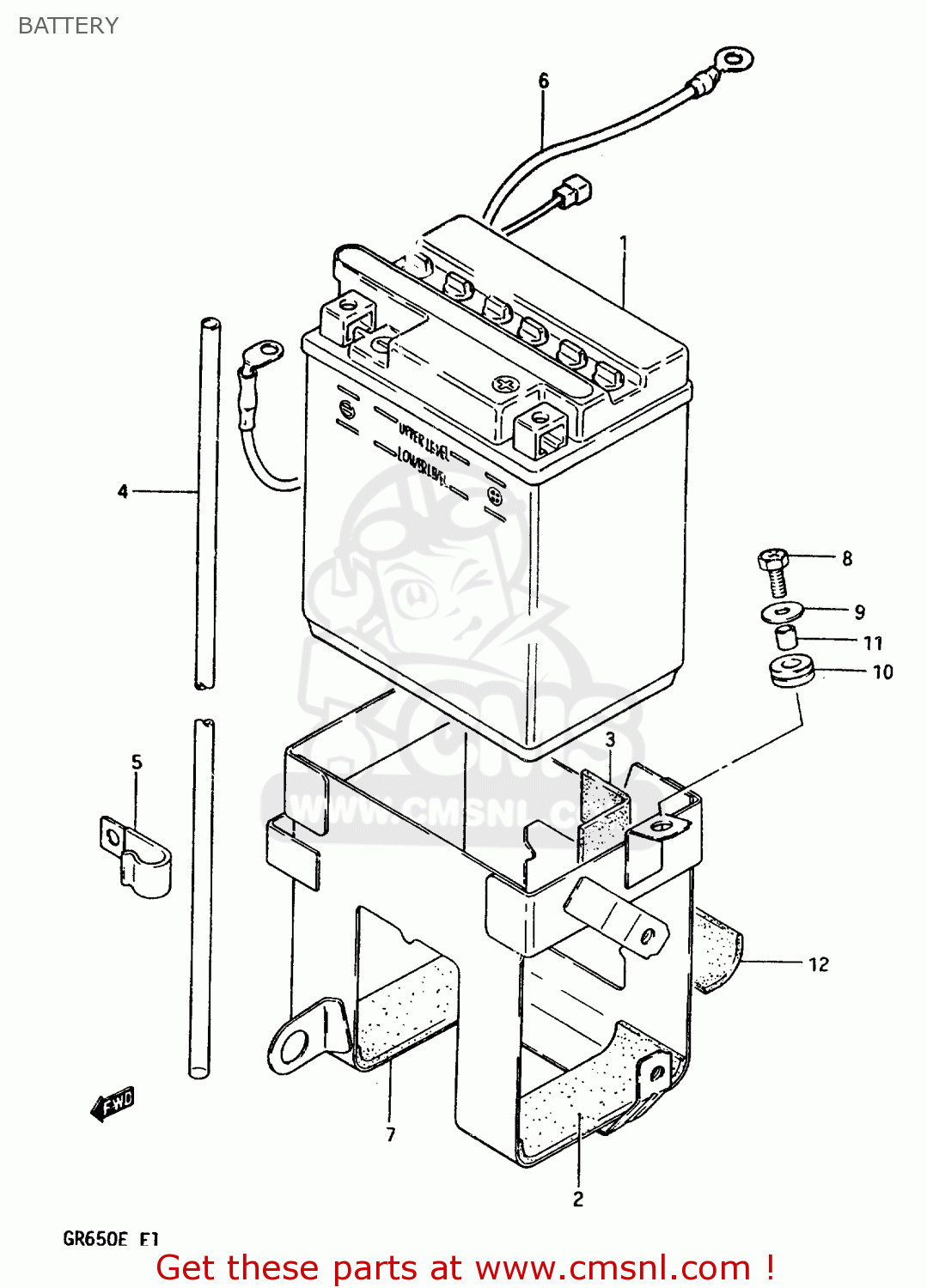

Battery diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
BATTERY GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
×
prices are in EUR
ref
part #
description
quantity
1
3361049210
ref: 1
BATTERY ASSY (12V)
€ 110.00
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
3
3365229100
ref: 3
PROTECTOR,20X9
€ 5.00
4
3368031003
ref: 4
HOSE,BATTERY EXHAUST
€ 4.50
5
0940309303
ref: 5
CLAMP
€ 5.50
6
3385015500
ref: 6
WIRE,STARTER MOTOR LEAD
€ 15.00
7
4154015500
ref: 7
HOLDER,BATTERY
€ 0.00
8
0912806039
ref: 8
SCREW
€ 2.00
9
0916006060
ref: 9
WASHER
€ 2.00
10
0932008007
ref: 10
CUSHION
€ 4.00
11
0918006038
ref: 11
SPACER(6.1X9X7.5)
€ 2.00
12
4154915500
ref: 12
CUSHION,BATTERY HOLDER
€ 0.00
