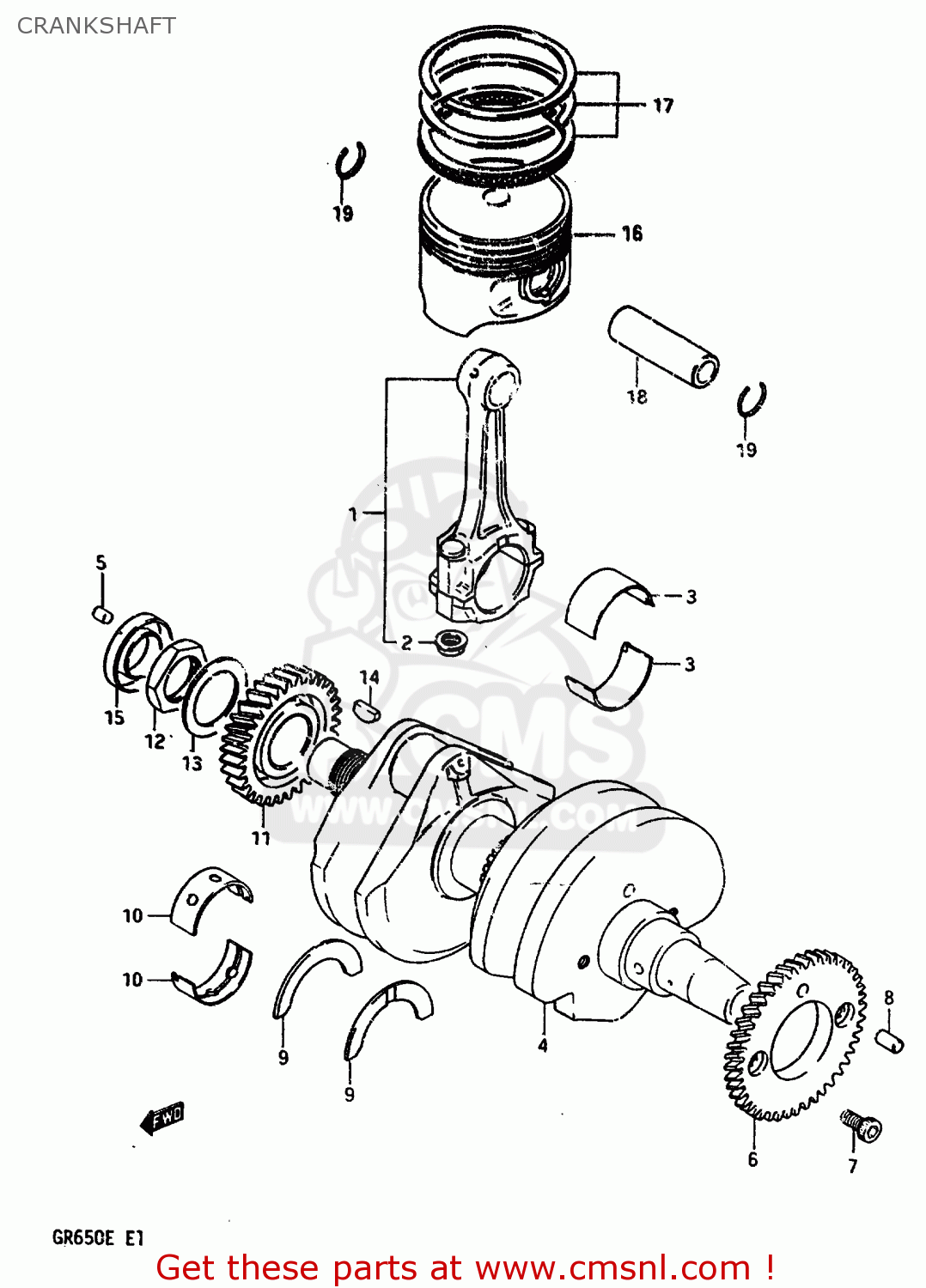

CRANKSHAFT

ref

part #

description

quantity

1

1216015502
ref: 1

CONNECTING ROD ASSEMBLY

€ 105.00

2

0915909001
ref: 2

NUT

€ 4.50

3-1

1216415510010
ref: 3-1

BEARING,CRANK PIN(GREEN)

€ 10.00

3-2

1216415510020
ref: 3-2

METAL CRANK PIN (BROWN)

€ 8.00

3-3

1216415510030
ref: 3-3

METAL CRANK PIN (BLACK)

€ 8.00

3-4

1216415510040
ref: 3-4

METAL CRANK PIN (GREEN)

€ 10.00

4

1222015502
ref: 4

CRANKSHAFT

€ 831.00

5

0920203016
ref: 5

PIN

€ 1.50

6

1266115502
ref: 6

GEAR,CRANK BALANCER DRIVE

€ 96.00

7

0910606030
ref: 7

BOLT

€ 2.50

8

0422106129
ref: 8

PIN

€ 1.50

9-1

1222831301
ref: 9-1

PLATE,CRANK THRUST

€ 6.00

9-2

1222831302
ref: 9-2

PLATE,CRANK THRUST

€ 8.00

9-3

1222831303
ref: 9-3

PLATE,CRANK THRUST

€ 8.50

9-4

1222831304
ref: 9-4

PLATE,CRANK THRUST

€ 9.00

9-5

1222831305
ref: 9-5

PLATE,CRANK THRUST

€ 7.00

9-6

1222831306
ref: 9-6

PLATE,CRANK THRUST

€ 8.00

9-7

1222831307
ref: 9-7

PLATE,CRANK THRUST

€ 7.00

9-8

1222831308
ref: 9-8

PLATE,CRANK THRUST

€ 7.50

10-1

1222915510010
ref: 10-1

METAL,CRANKSHAFT (GREEN)

€ 10.50

10-2

1222915510020
ref: 10-2

BEARING,CRANKSHAFT(BLACK)

€ 10.00

10-3

1222915510030
ref: 10-3

METAL CRANKSHAFT (BROWN)

€ 9.00

10-4

1222915510040
ref: 10-4

METAL,CRANKSHAFT (YELLOW)

€ 10.50

11

2111115501
ref: 11

GEAR,PRIMARY DRIVE

€ 0.00

12

0914024007
ref: 12

NUT

€ 4.50

13

0916425001
ref: 13

WASHER

€ 4.50

14

0834131059
ref: 14

KEY

€ 3.00

15

0928322015
ref: 15

SEAL,OIL(22X40X8)

€ 10.50

16-1

1211115504
ref: 16-1

PISTON (77.00MM)

€ 118.00

16-2

1211115504050
ref: 16-2
OPT

PISTON (77.50MM)

€ 118.00

16-3

1211115504100
ref: 16-3
OPT

PISTON (78.00MM)

€ 84.00

17-1

1214015510
ref: 17-1

RING SET,PISTON

€ 73.50

17-2

1214015510050
ref: 17-2
OPT

RING SET,PISTON (OS:0.5)

€ 38.50

17-3

1214015510100
ref: 17-3
OPT

RING SET,PISTON (OS:1.0)

€ 62.00

18

1215115501A
ref: 18

PIN,PISTON

€ 15.00

19

0938118002A
ref: 19

CIRCLIP,PISTON PIN

€ 1.50
