FRAME COVER (GR650XE)

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

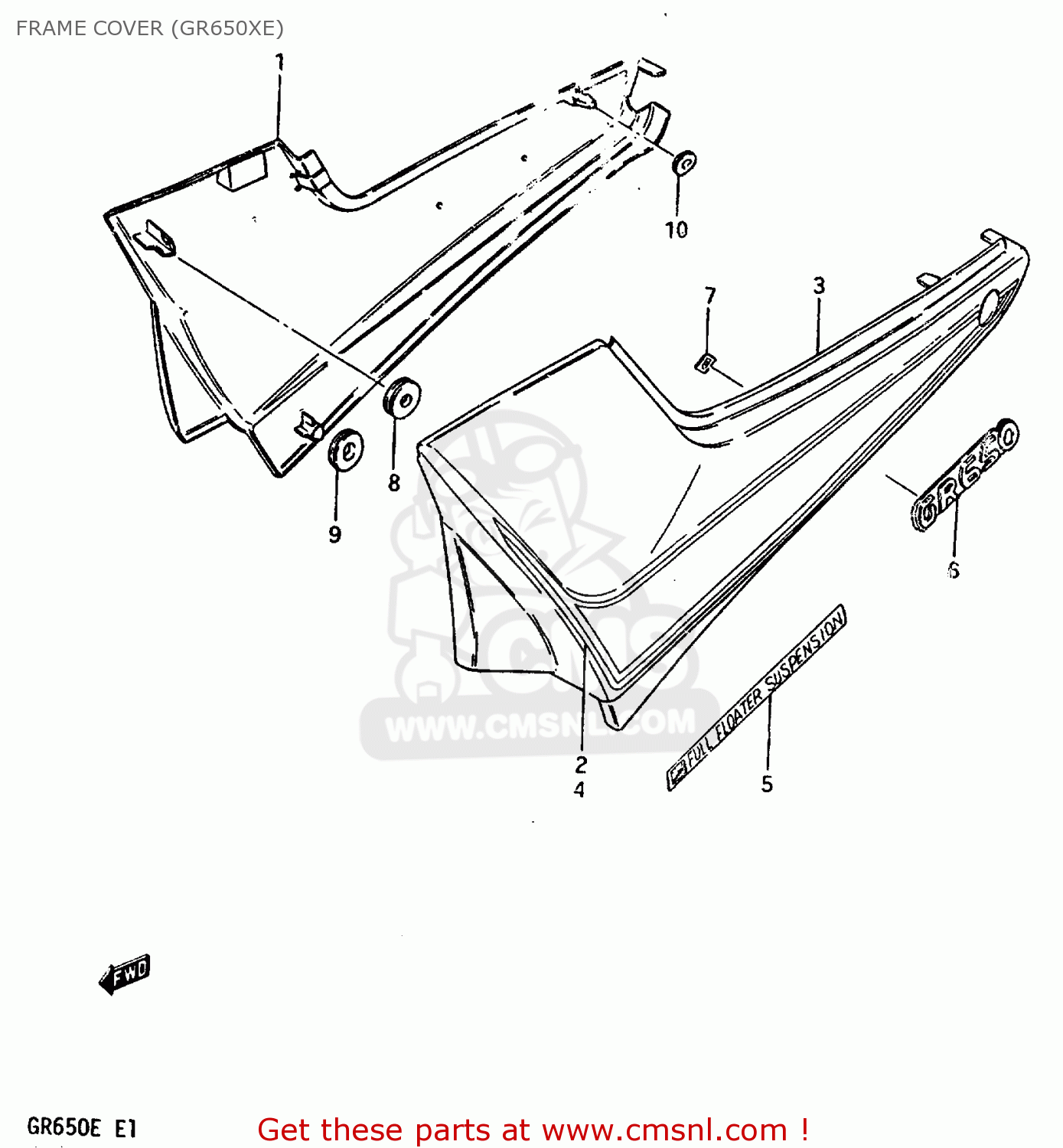

Frame cover (gr650xe) diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

FRAME COVER (GR650XE) GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

FRAME COVER (GR650XE) GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

4711015520OOJ
ref: 1

COVER, FRAME RH (RED)

€ 0.00

2

681301552081G
ref: 2

TAPE, RH

€ 0.00

3

4721015520OOJ
ref: 3

COVER, FRAME LH (RED)

€ 0.00

4

681401552081G
ref: 4

TAPE, LH

€ 0.00

5

682350470093W
ref: 5

EMBLEM

€ 0.00

6

6813115500
ref: 6

EMBLEM,FRAME COVER

€ 17.50

7

0914803002
ref: 7

NUT

€ 3.00

8

0932008018
ref: 8

CUSHION

€ 4.00

9

0932003005
ref: 9

CUSHION

€ 2.00

10

0932908003
ref: 10

CUSHION

€ 3.50
