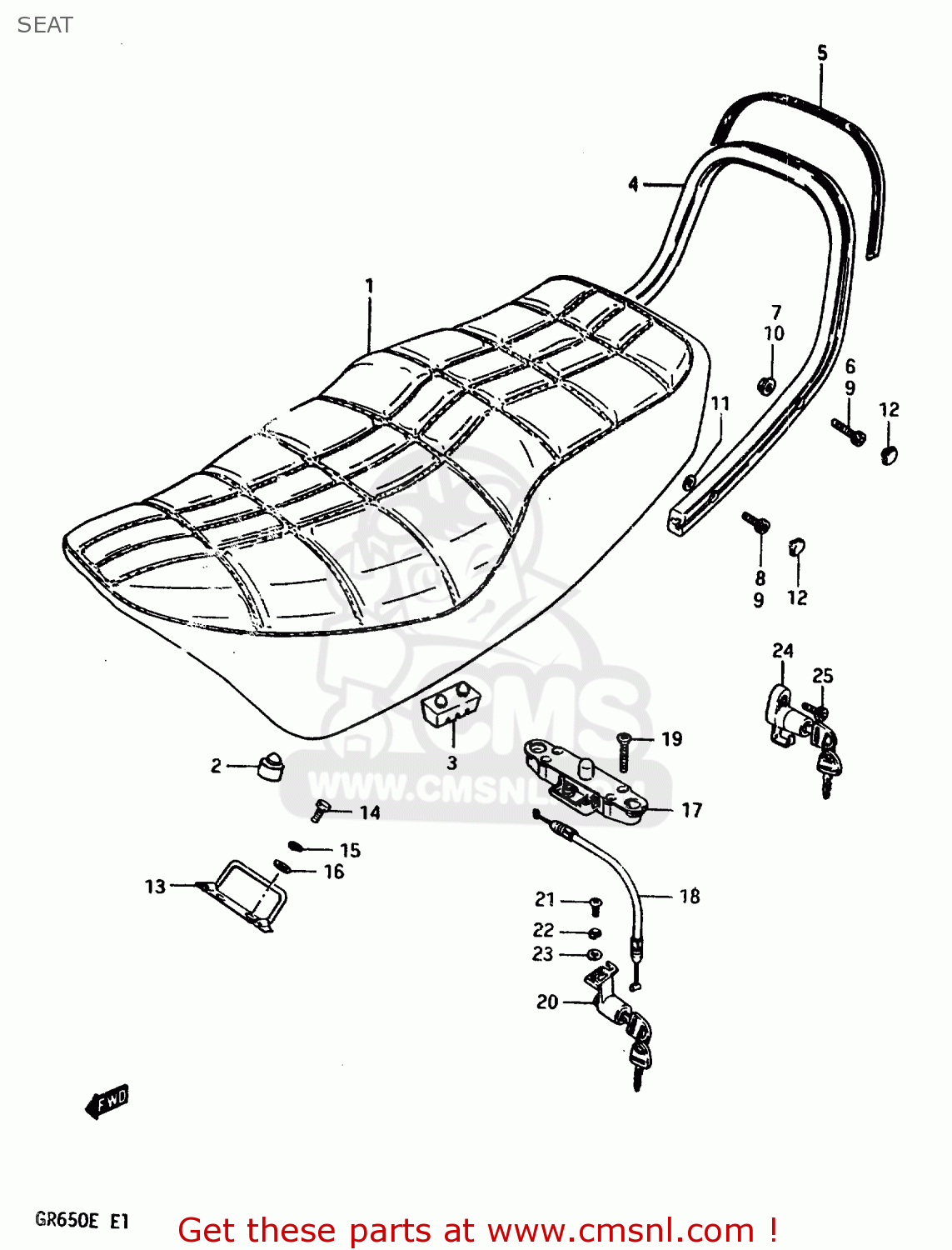

SEAT

ref

part #

description

quantity

1-1

451001551048H
ref: 1-1
MODEL D

SEAT ASSEMBLY

€ 360.50

1-2

451001553048H
ref: 1-2
MODEL E

SEAT ASSY (BLACK)

€ 360.50

1-3

451001550048H
ref: 1-3
MODEL D:E18,E24,E26,

SEAT ASSEMBLY

€ 360.50

1-4

451001552048H
ref: 1-4
MODEL E:E21,E24,E26,

SEAT ASSEMBLY

€ 360.50

2

0932910001
ref: 2

CUSHION

€ 2.50

3

0932108009
ref: 3

CUSHION

€ 4.00

4-1

4621015510
ref: 4-1
MODEL D

HANDLE,PILLION RIDER

€ 230.00

4-2

4621015520
ref: 4-2
MODEL E

HANDLE,PILLION RIDER

€ 230.00

4-3

4621015500
ref: 4-3
MODEL D E16,E18,E22,

HANDLE, PILLION RIDER

€ 230.00

5

4621434410
ref: 5

RUBBER,PILLION RIDER HANDLE

€ 17.50

6

0910608010
ref: 6
MODEL D

BOLT

€ 3.50

7

0831022088
ref: 7
MODEL D

NUT 8MM

€ 2.00

8

0910608017
ref: 8
MODEL D

BOLT

€ 3.00

9

0711208256
ref: 9
MODEL E

BOLT

€ 3.50

10

0831626086
ref: 10
MODEL E

NUT

€ 1.50

11

0916008066
ref: 11

WASHER

€ 2.50

12

0925006004
ref: 12

CAP(OD:14.5)

€ 1.50

13

4521015500
ref: 13

PLATE,SEAT HOOK,FRONT

€ 0.00

14

0110706206
ref: 14

BOLT,M6X1X20

€ 2.00

15

0832121066
ref: 15

WASHER,LOCK

€ 2.00

16

0832221066
ref: 16

WASHER, LOWER

€ 2.00

17

4522013600
ref: 17

LOCK ASSEMBLY,SEAT STRIKER

€ 47.00

18

4528015500
ref: 18

CABLE,SEAT LOCK

€ 10.00

19

0212206306
ref: 19

SCREW

€ 2.00

20

4570015500KEY
ref: 20

LOCK ASSEMBLY,SEAT

€ 33.00

21

0211205105
ref: 21

SCREW

€ 2.00

22

0832121055
ref: 22

WASHER,LOCK

€ 3.00

23

0832221055
ref: 23

WASHER,5MM

€ 2.50

24

9570031300KEY
ref: 24

LOCK SET

€ 49.50

25

0910606036
ref: 25

BOLT

€ 2.50

all assemblies
