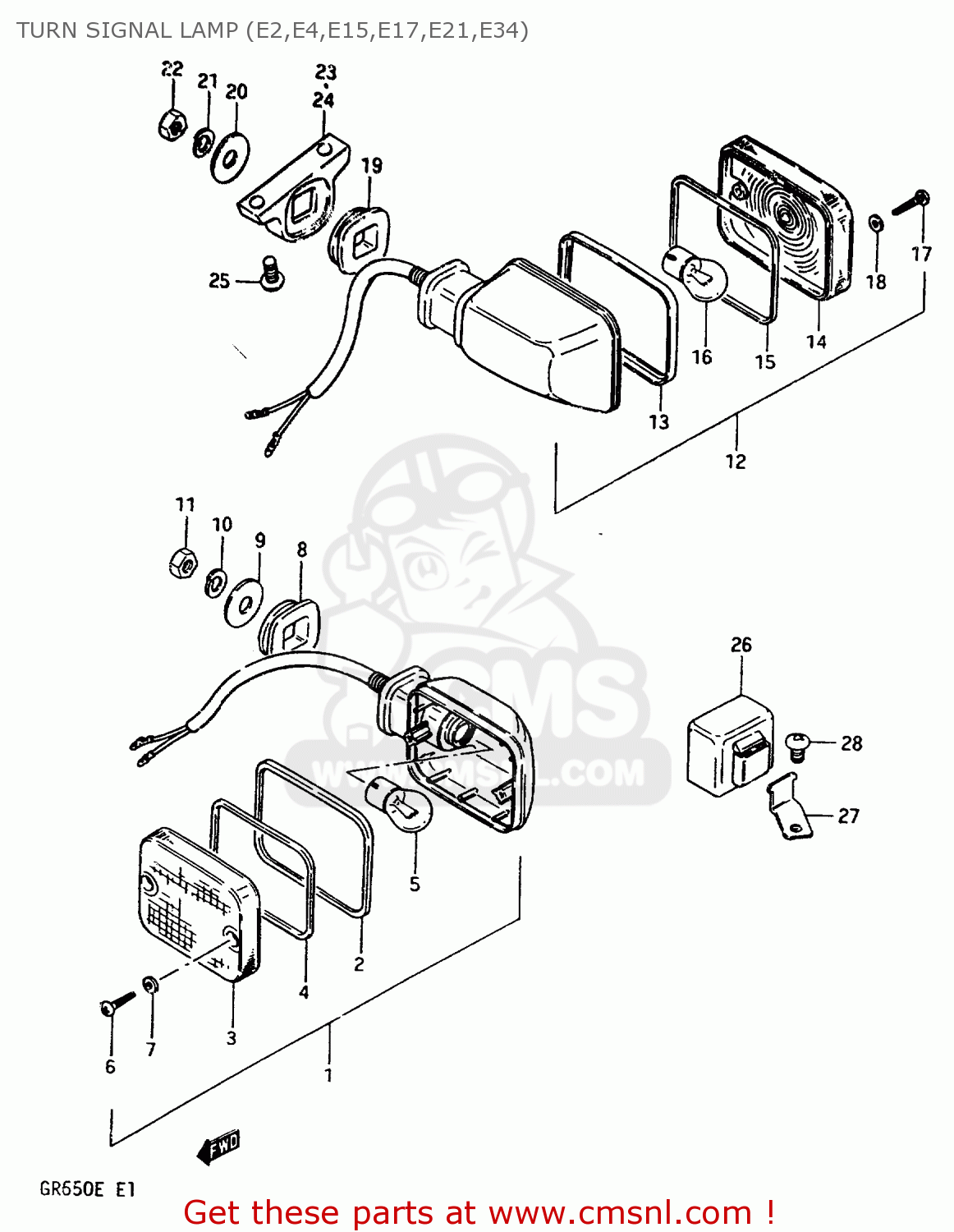

TURN SIGNAL LAMP (E2,E4,E15,E17,E21,E34)

ref

part #

description

quantity

1-1

3560145120
ref: 1-1
E2,E4,E17,E34

LAMP ASSY,FR TURN SIGNAL

€ 102.00

1-2

3560145140
ref: 1-2
MODEL D:E15

LAMP ASSY, FRONT TURN SIGNAL

€ 0.00

1-3

3560145180
ref: 1-3
MODEL E:E15

LAMP ASSY, FRONT TURN SIGNAL

€ 86.50

1-4

3560145180
ref: 1-4
E21

LAMP ASSY, FRONT TURN SIGNAL

€ 86.50

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112045
ref: 5
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0932015005
ref: 8

CUSHION

€ 5.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560334420
ref: 12

LAMP ASSY, REAR TURN SIGNAL

€ 97.00

13

3561149230
ref: 13

RIM

€ 11.00

14

3565244182
ref: 14

LENS

€ 13.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0932015005
ref: 19

CUSHION

€ 5.00

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562115500
ref: 23

BRACKET,REAR TURN SIGNAL

€ 49.00

24

3564115500
ref: 24

BRACKET,REAR TURN SIGNAL

€ 31.50

25

0211206168
ref: 25

SCREW

€ 2.50

26-1

3861045031
ref: 26-1
MODEL D

RELAY,TURN SIGNAL

€ 54.50

26-2

3861031310
ref: 26-2
MODEL E

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

27

3862115500
ref: 27

BRACKET,TURN SIGNAL RELAY

€ 0.00

28

0214206105
ref: 28

SCREW

€ 2.00

all assemblies
