GENERATOR

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

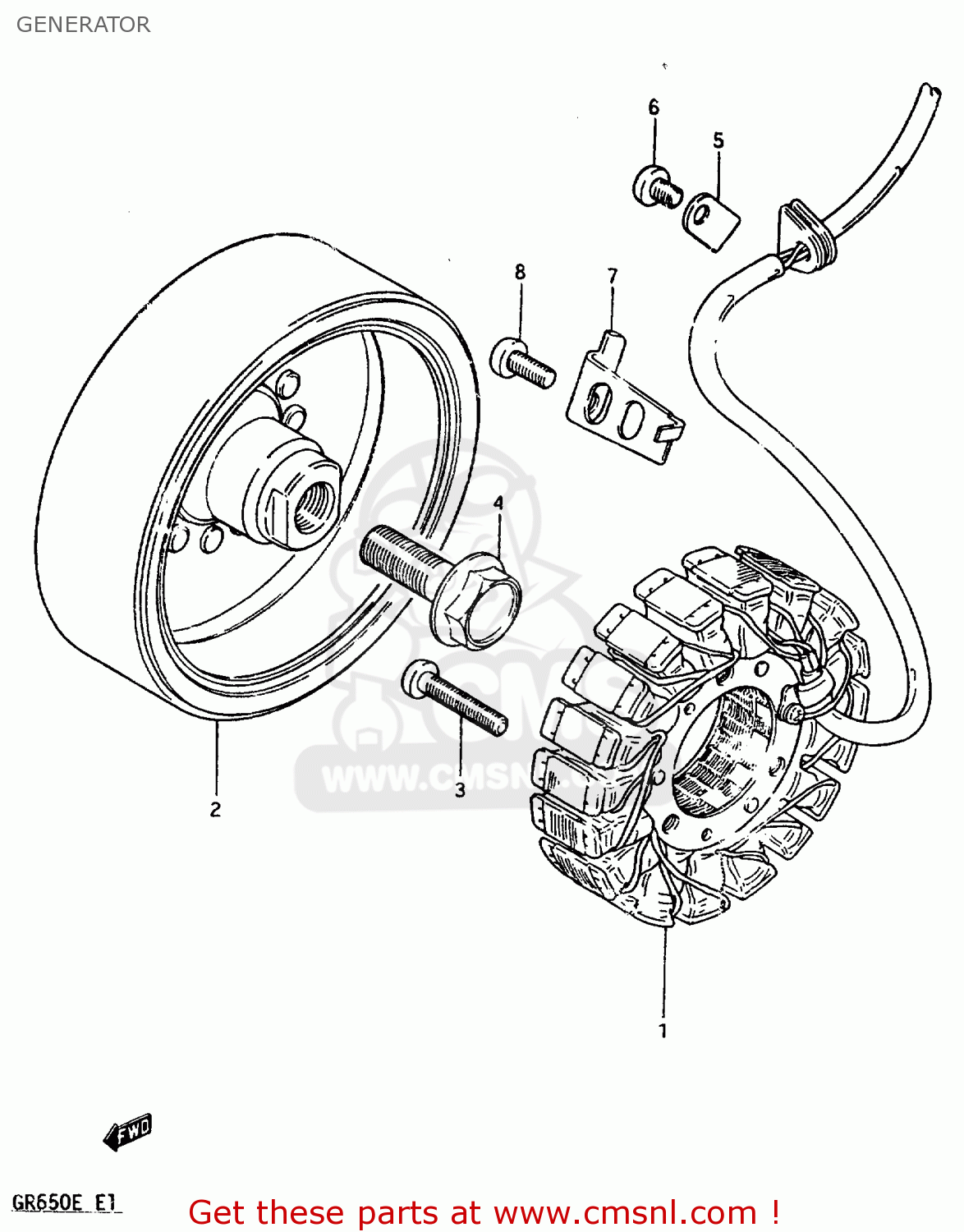

Generator diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

3140115500
ref: 1

STARTER ASSY

€ 372.50

2-1

3140215500
ref: 2-1
E. NO.107495

ROTOR ASSEMBLY

€ 0.00

2-2

3140215501
ref: 2-2
E.NO.107496

ROTOR

€ 244.50

0211205308
ref: 3

SCREW

€ 1.50

0910312004
ref: 4

BOLT(12X40)

€ 3.00

3149715500
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 12.50

0211205108
ref: 6

SCREW

€ 2.00

3149815500
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 0.00

0211206108
ref: 8

SCREW

€ 1.50
