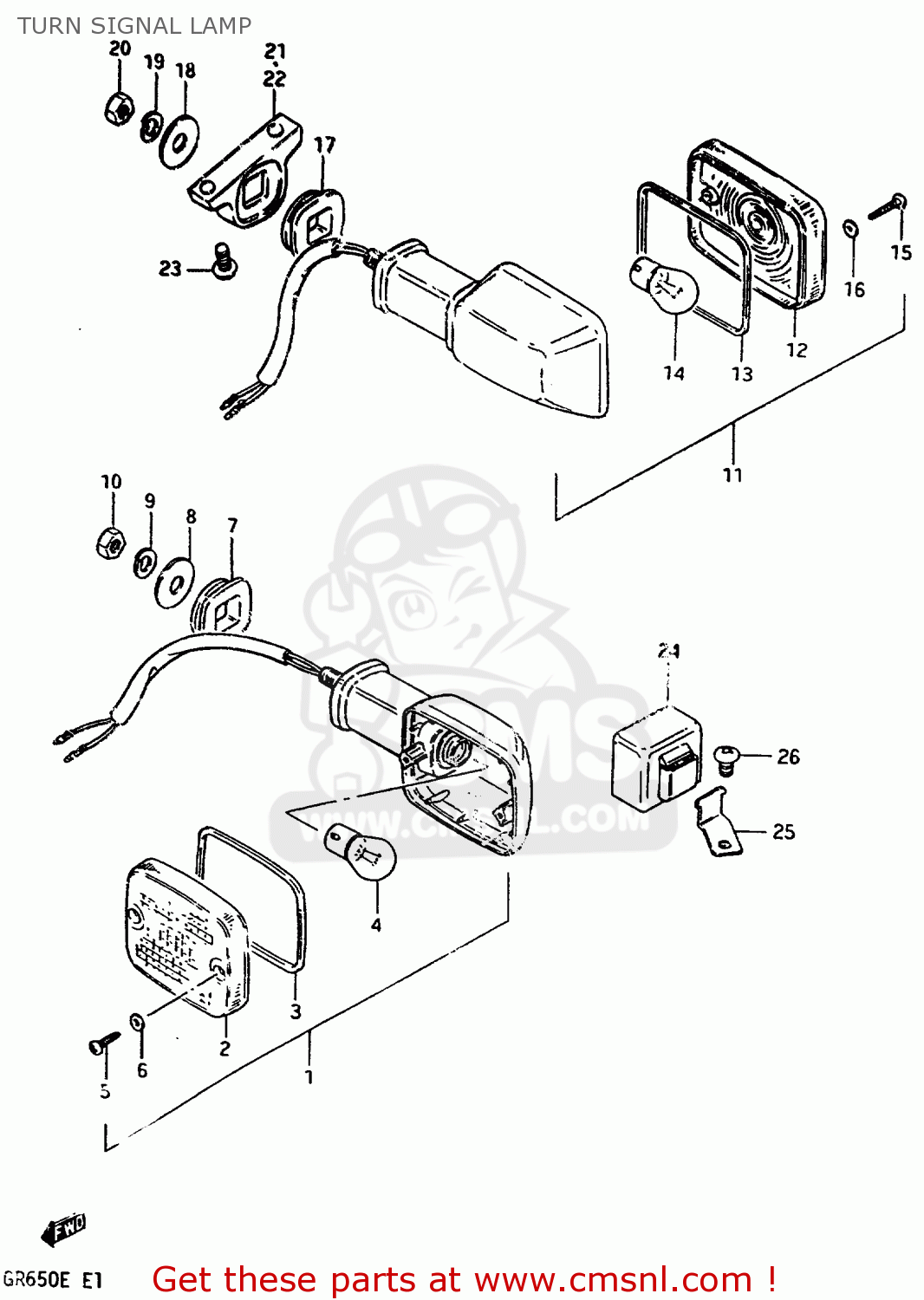

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560145110
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 114.00

2

3561249231
ref: 2

LENS

€ 13.00

3

3561349230
ref: 3

GASKET (NAS)

€ 5.00

4

0947112006
ref: 4

BULB(12V23W,STANLEY,A4577A)

€ 4.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0932015005
ref: 7

CUSHION

€ 5.00

8

0916010006
ref: 8

WASHER (10.5X30X2.3)

€ 2.50

9

0832121108
ref: 9

LOCK WASHER

€ 2.00

10

0831012108
ref: 10

NUT

€ 2.50

11

3560345110
ref: 11

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 114.00

12

3561249231
ref: 12

LENS

€ 13.00

13

3561349230
ref: 13

GASKET (NAS)

€ 5.00

14

0947112006
ref: 14

BULB(12V23W,STANLEY,A4577A)

€ 4.00

15

0321104208
ref: 15

SCREW

€ 1.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0932015005
ref: 17

CUSHION

€ 5.00

18

0916010006
ref: 18

WASHER (10.5X30X2.3)

€ 2.50

19

0832121108
ref: 19

LOCK WASHER

€ 2.00

20

0831012108
ref: 20

NUT

€ 2.50

21

3562115500
ref: 21

BRACKET,REAR TURN SIGNAL

€ 41.50

22

3564115500
ref: 22

BRACKET,REAR TURN SIGNAL

€ 25.50

23

0211206168
ref: 23

SCREW

€ 2.50

24-1

3861045031
ref: 24-1
MODEL D

RELAY,TURN SIGNAL

€ 54.50

24-2

3861031310
ref: 24-2
MODEL E

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

25

3862115500
ref: 25

BRACKET,TURN SIGNAL RELAY

€ 0.00

26

0214206105
ref: 26

SCREW

€ 2.00

all assemblies
