REAR BRAKE

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

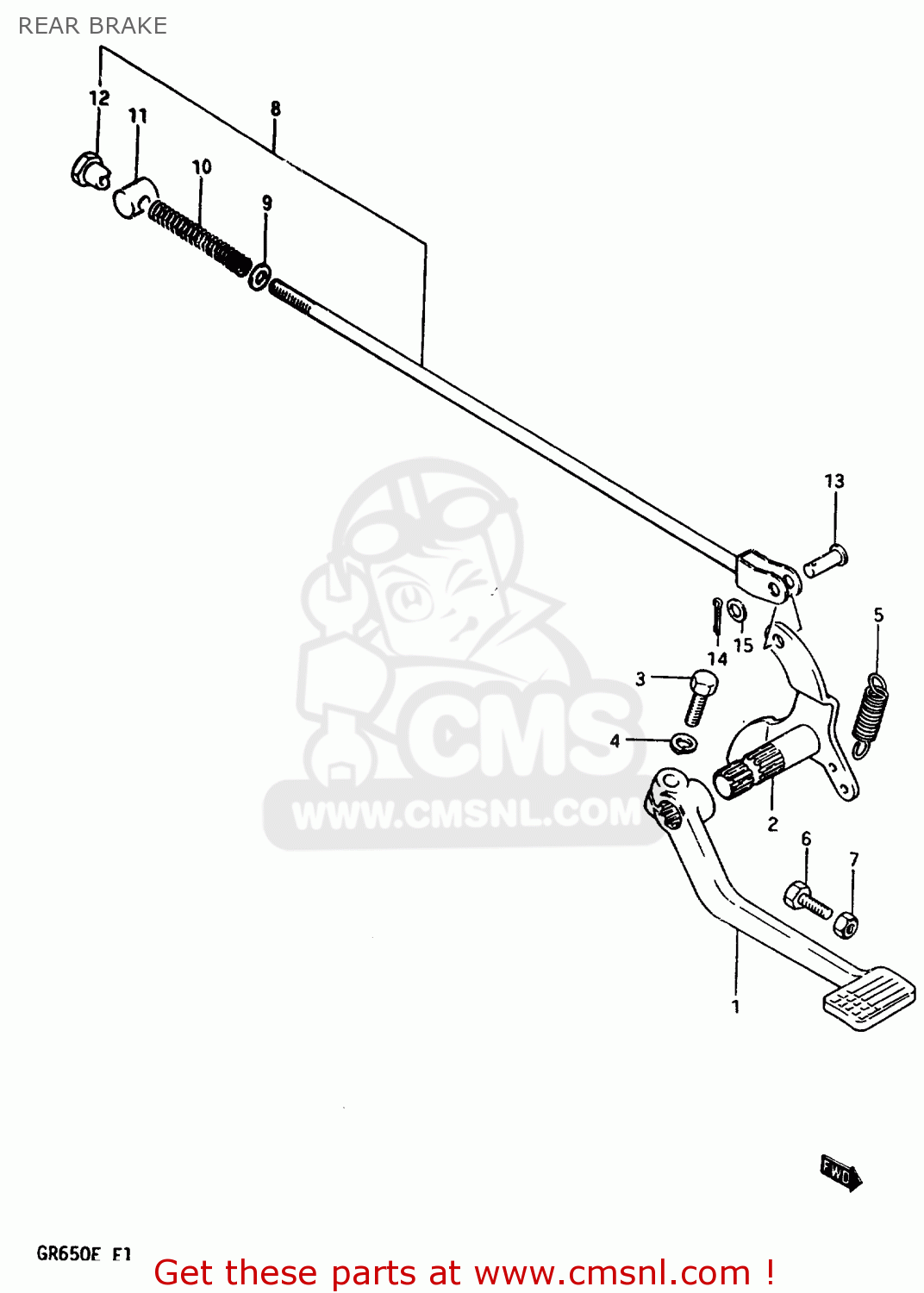

Rear brake diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

4311115500
ref: 1

PEDAL,BRAKE

€ 65.00

4312015500
ref: 2

ARM,BRAKE ROD

€ 25.50

0120408257
ref: 3

BOLT

€ 2.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

0944314013
ref: 5

SPRING

€ 21.50

0910006009
ref: 6

BOLT(6X23)

€ 1.50

0831011068
ref: 7

NUT

€ 2.50

4330015500
ref: 8

ROD ASSEMBLY,REAR BRAKE

€ 13.00

0832221068
ref: 9

WASHER

€ 2.00

0944009004
ref: 10

SPRING

€ 2.00

0920913005
ref: 11

PIN

€ 3.50

0915006009
ref: 12

NUT (6MM)

€ 3.50

0920006013
ref: 13

PIN(L:13.5)

€ 2.00

0411120208
ref: 14

PIN 20X20

€ 1.50

0832221068
ref: 15

WASHER

€ 2.00
