HEADLAMP

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

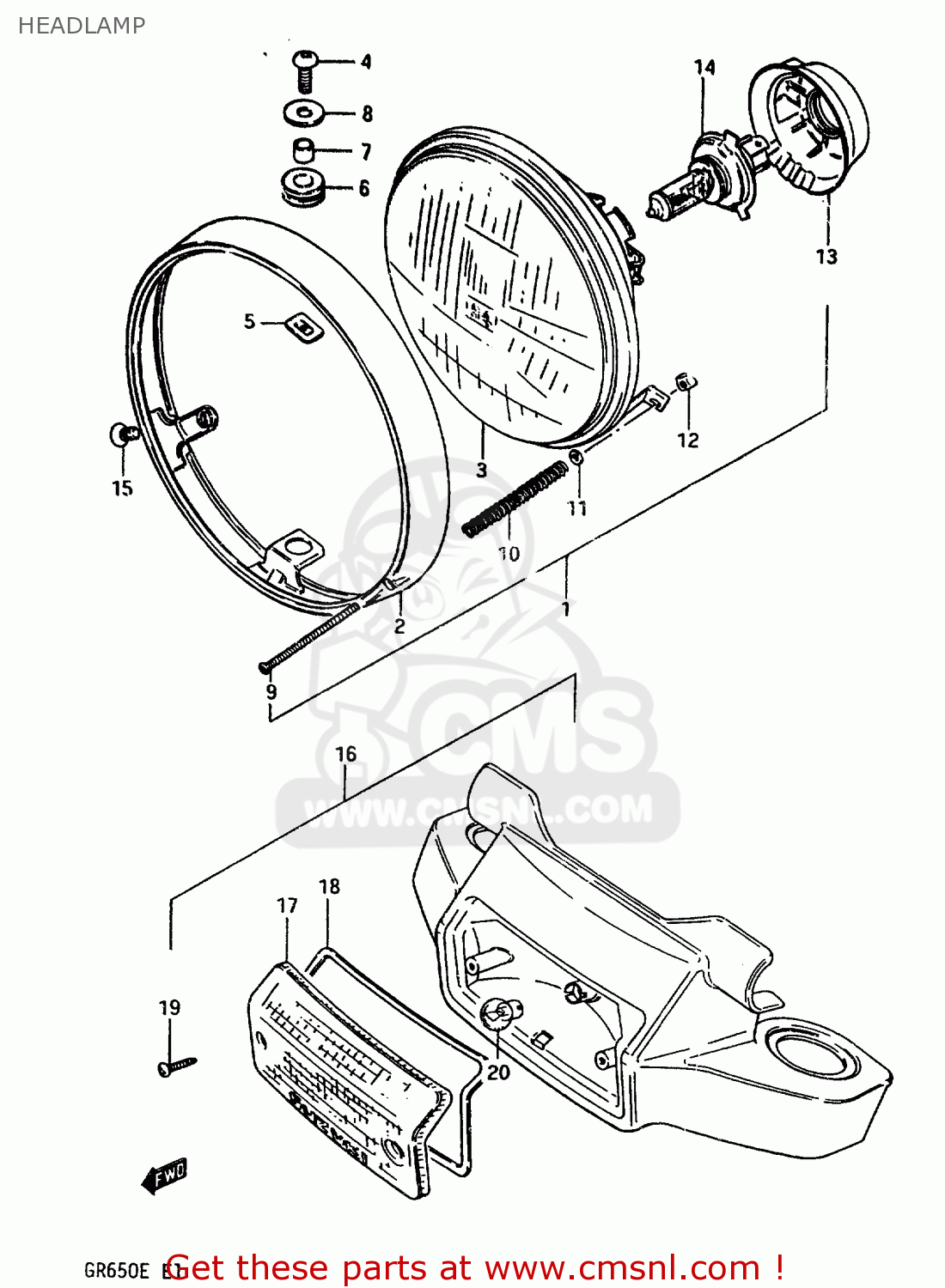

Headlamp diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

HEADLAMP GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
HEADLAMP GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
HEADLAMP GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
3510015530999
ref: 1
LAMP ASSEMBLY,HEAD
€ 237.00
2
3511115530
ref: 2
RIM,HEAD LAMP
3511115530
€ 56.50
3
3512115530
ref: 3
LAMP UNIT
€ 205.50
4
0912505102
ref: 4
SCREW(5X14)
0912505102
€ 2.50
5
3515548510
ref: 5
NUT
3515548510
€ 2.00
6
3513945230
ref: 6
CUSHION
3513945230
€ 1.50
7
3513345230
ref: 7
SPACER
3513345230
€ 2.00
8
3513845230
ref: 8
WASHER
3513845230
€ 2.00
9
3515115510
ref: 9
SCREW,HEADLAMP ADJUST
€ 3.00
10
3515427630
ref: 10
SPRING,HEADLAMP ADJUST
3515427630
€ 3.50
11
3515727630
ref: 11
WASHER
3515727630
€ 2.50
12
3513545600
ref: 12
NUT
3513545600
€ 3.00
13
3517345200
ref: 13
COVER,SOCKET
3517345200
€ 14.00
14
0947112060
ref: 14
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
15
0912705013
ref: 15
SCREW(5X12)
0912705013
€ 2.50
16-1
3611015500
ref: 16-1
MODEL D, TO 36610-15
LAMP ASSY, FRONT POSITION
€ 103.50
16-2
3611015510
ref: 16-2
MODEL E
LAMP ASSY, FRONT POSITION
€ 0.00
17-1
3611215500
ref: 17-1
MODEL D
LENS
3611215500
€ 15.50
17-2
3611215510
ref: 17-2
MODEL E
LENS,POSITION LAMP
3611215510
€ 15.50
18
3611315500
ref: 18
GASKET,POSITION LAMP
€ 0.00
19
3611715500
ref: 19
SCREW,POSITION LENS
3611715500
€ 1.50
20
0947112032
ref: 20
BULB
€ 6.00
