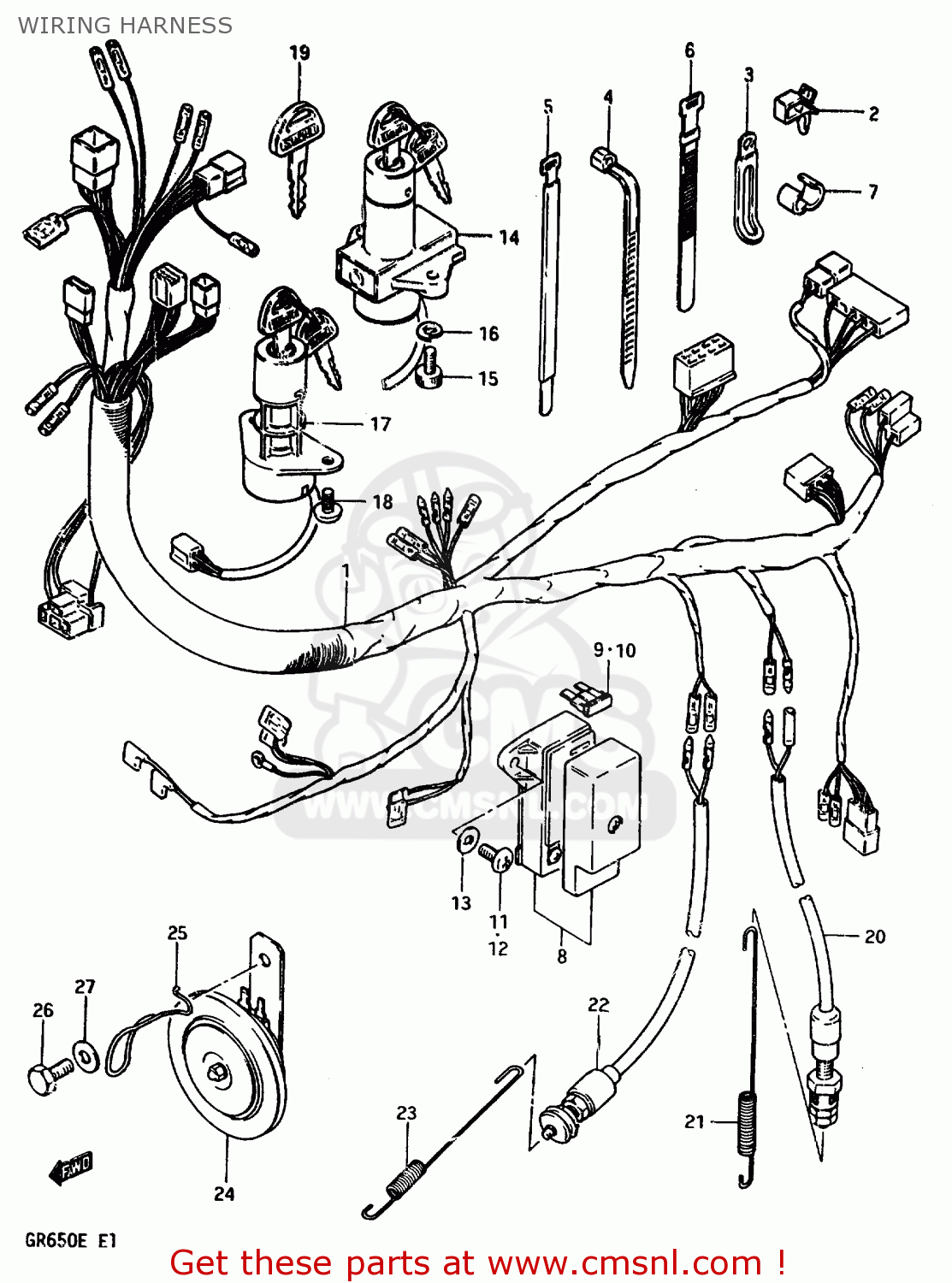

WIRING HARNESS

ref

part #

description

quantity

1-1

3661015500
ref: 1-1
MODEL D

HARNESS,WIRING

€ 172.50

1-2

3661015510
ref: 1-2
MODEL E

WIRING HARNESS

€ 168.00

2

0940305305
ref: 2

CLIP

€ 3.00

3-1

0940406412
ref: 3-1

CLAMP

€ 2.50

3-2

0940406415
ref: 3-2

CLAMP

€ 3.00

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940718402
ref: 4-2

CLAMP(L:165)

€ 2.50

4-3

0940725401
ref: 4-3

CLAMP(L:235)

€ 4.00

5

0940735301
ref: 5

CLAMP

€ 6.50

6

0940712402
ref: 6

CLAMP(L:120)

€ 3.00

7

0940800002
ref: 7

CLIP

€ 2.00

8

3674049401
ref: 8
FROM 36740-49400

BOX ASSEMBLY,FUSE

€ 69.50

9

0948110101
ref: 9

FUSE(10A)

€ 2.50

10

0948115101
ref: 10

FUSE(15A)

€ 1.50

11

0211206126
ref: 11

SCREW

€ 1.50

12

0211206166
ref: 12

SCREW

€ 2.00

13

0832221066
ref: 13

WASHER, LOWER

€ 2.00

14

3710049201
ref: 14

SWITCH ASSY,IGNITION

€ 141.00

15

3715247011
ref: 15
FROM 37152-47010

BOLT

€ 3.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

3711011500
ref: 17
E15,E17,E22,E26

SWITCH ASSEMBLY,IGNITION

€ 86.00

18

0214206125
ref: 18

SCREW 6X12

€ 2.00

19

3714647010
ref: 19
OPT

KEY,BLANK

€ 15.00

20

3774004572
ref: 20

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

21

0944306027
ref: 21

SPRING

€ 4.50

22

3784015500
ref: 22

SWITCH ASSEMBLY,SIDE STAND

€ 25.00

23

0944306048
ref: 23

SPRING

€ 5.00

24-1

3850015500
ref: 24-1

HORN ASSEMBLY

€ 77.00

24-2

3850015510
ref: 24-2
E4,E18,E34,E39

HORN ASSY

€ 77.00

25

3859515500
ref: 25

PROTECTOR, HORN

€ 0.00

26

0110708165
ref: 26

BOLT

€ 2.00

27

0832211085
ref: 27

WASHER,8.5X16X

€ 1.50

all assemblies
