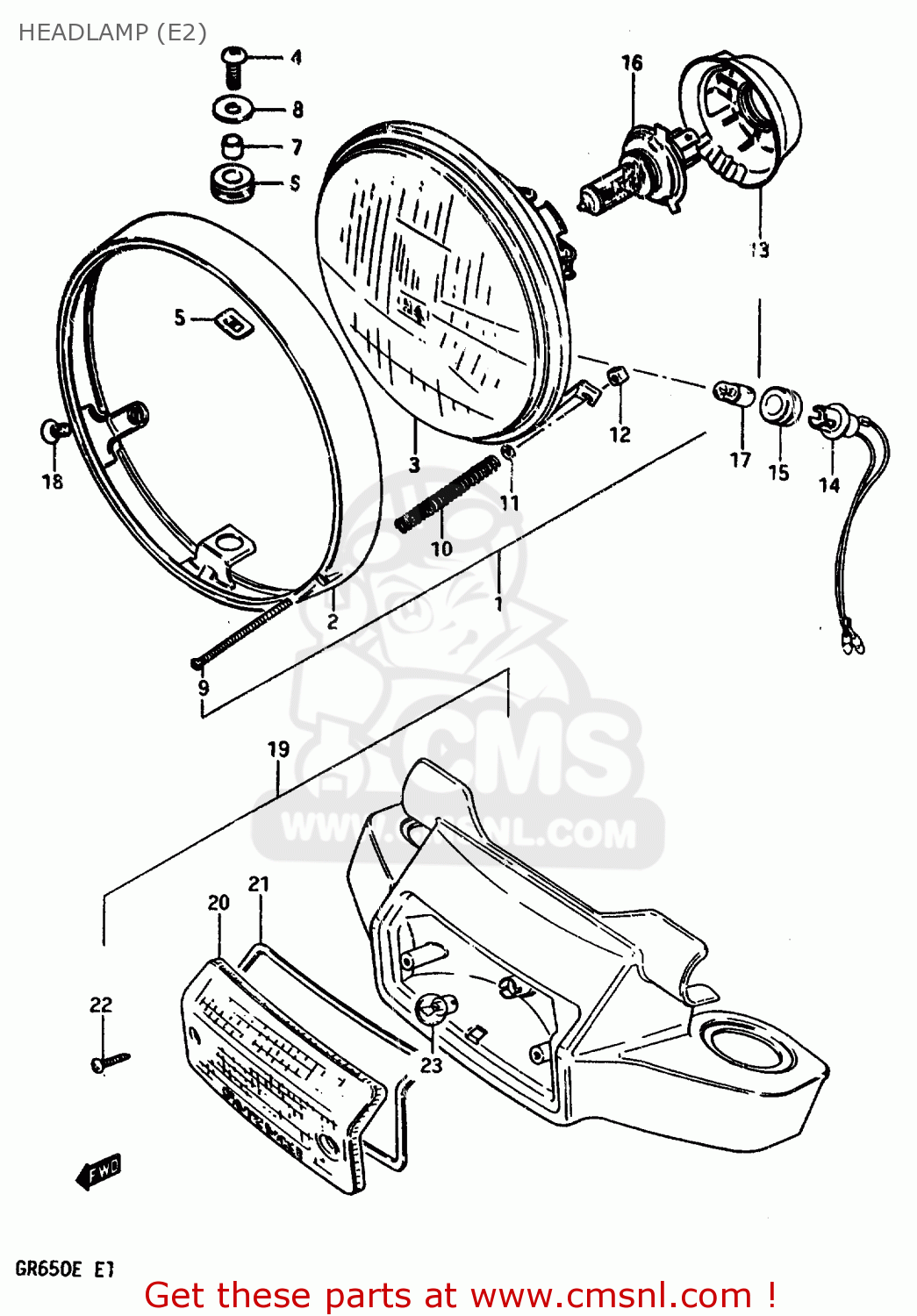

HEADLAMP (E2)

ref

part #

description

quantity

1-1

3510015510999
ref: 1-1
GR6500

HEADLAMP ASSY

€ 0.00

1-2

3510015520999
ref: 1-2
GR650XD

HEADLAMP ASSY

€ 0.00

2

3511115530
ref: 2

RIM,HEAD LAMP

€ 56.50

3-1

3512115510
ref: 3-1
GR650D

UNIT

€ 0.00

3-2

3512115520
ref: 3-2
GR650XD

UNIT

€ 0.00

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3515548510
ref: 5

NUT

€ 2.00

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513345230
ref: 7

SPACER

€ 2.00

8

3513845230
ref: 8

WASHER

€ 2.00

9

3515115510
ref: 9

SCREW,HEADLAMP ADJUST

€ 3.00

10

3515427630
ref: 10

SPRING,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3513545600
ref: 12

NUT

€ 3.00

13

3517345200
ref: 13

COVER,SOCKET

€ 14.00

14

3611830691
ref: 14
GR650XD

SOCKET

€ 12.00

15

3611622630
ref: 15
GR650XD

JOINT,RUBBER

€ 5.00

16

0947112060
ref: 16
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

17

0947112063
ref: 17
GR650XDEXECUTED LOCA

BULB(12V4W)

€ 6.00

18

0912705013
ref: 18

SCREW(5X12)

€ 2.50

19

3611015520
ref: 19

LAMP ASSY, FRONT POSITION

€ 103.50

20

3611215500
ref: 20

LENS

€ 15.50

21

3611315500
ref: 21

GASKET,POSITION LAMP

€ 0.00

22

3611715500
ref: 22

SCREW,POSITION LENS

€ 1.50

23

0947112063
ref: 23
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00
