CHAIN LOCK

GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

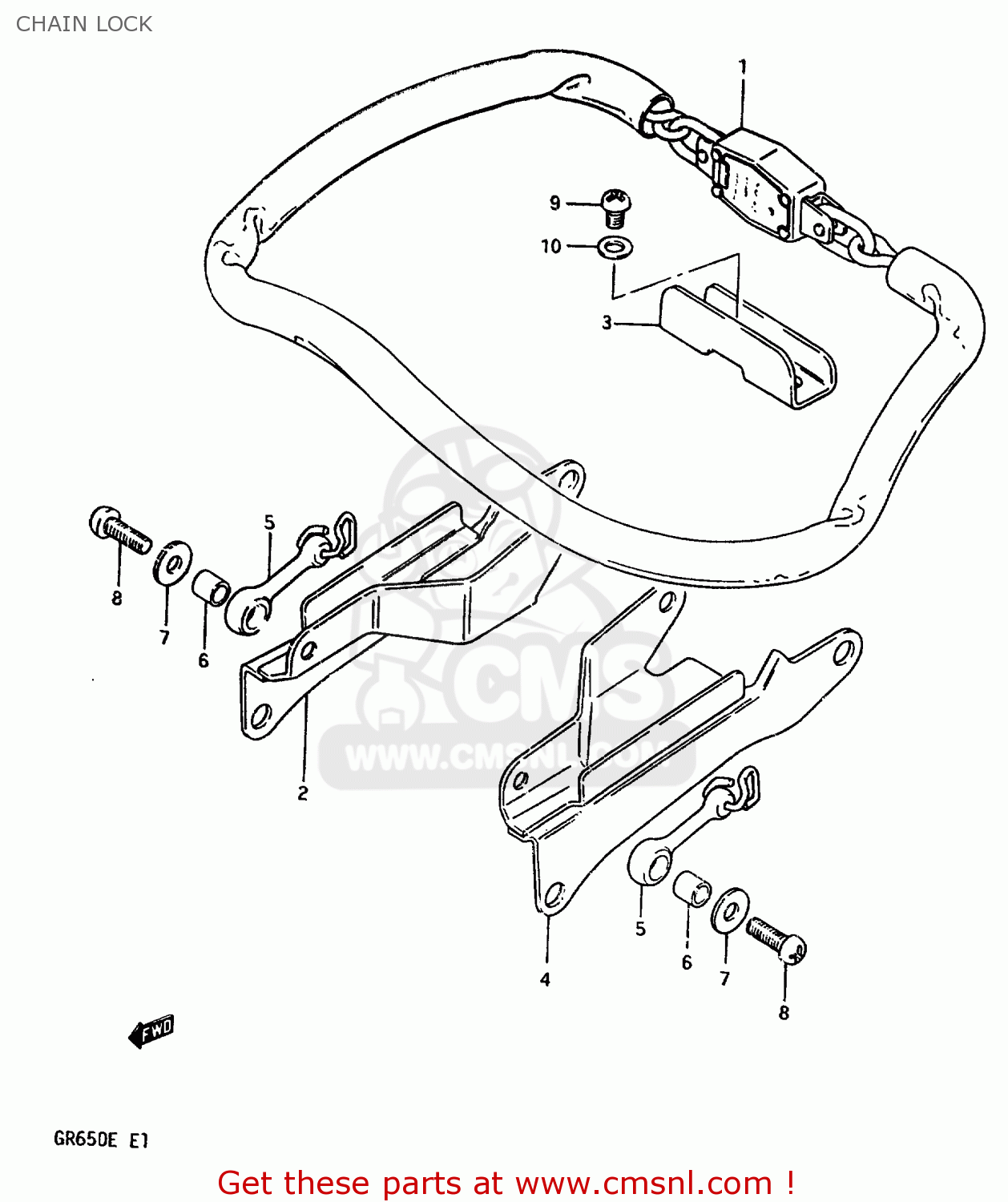

Chain lock diagram GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

CHAIN LOCK GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

CHAIN LOCK GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

9414015505KEY
ref: 1-1
MODEL D

LOCK ASSY, CHAIN

€ 53.50

1-2

9414015501KEY
ref: 1-2
MODEL E

CHAIN LOCK ASSY

€ 53.50

2

9416015500
ref: 2

HOLDER, RH

€ 4.50

3

9416615500
ref: 3

HOLDER, REAR

€ 0.00

4

9417015500
ref: 4

HOLDER, LH

€ 4.50

5

0946200080
ref: 5

BAND

€ 5.50

6

0918006011
ref: 6

SPACER (6.1X9X9)

€ 2.00

7

0916006007
ref: 7

WASHER

€ 2.00

8

0211206208
ref: 8

SCREW

€ 2.00

9

0211206108
ref: 9

SCREW

€ 1.50

10

0832221068
ref: 10

WASHER

€ 2.00

all assemblies
