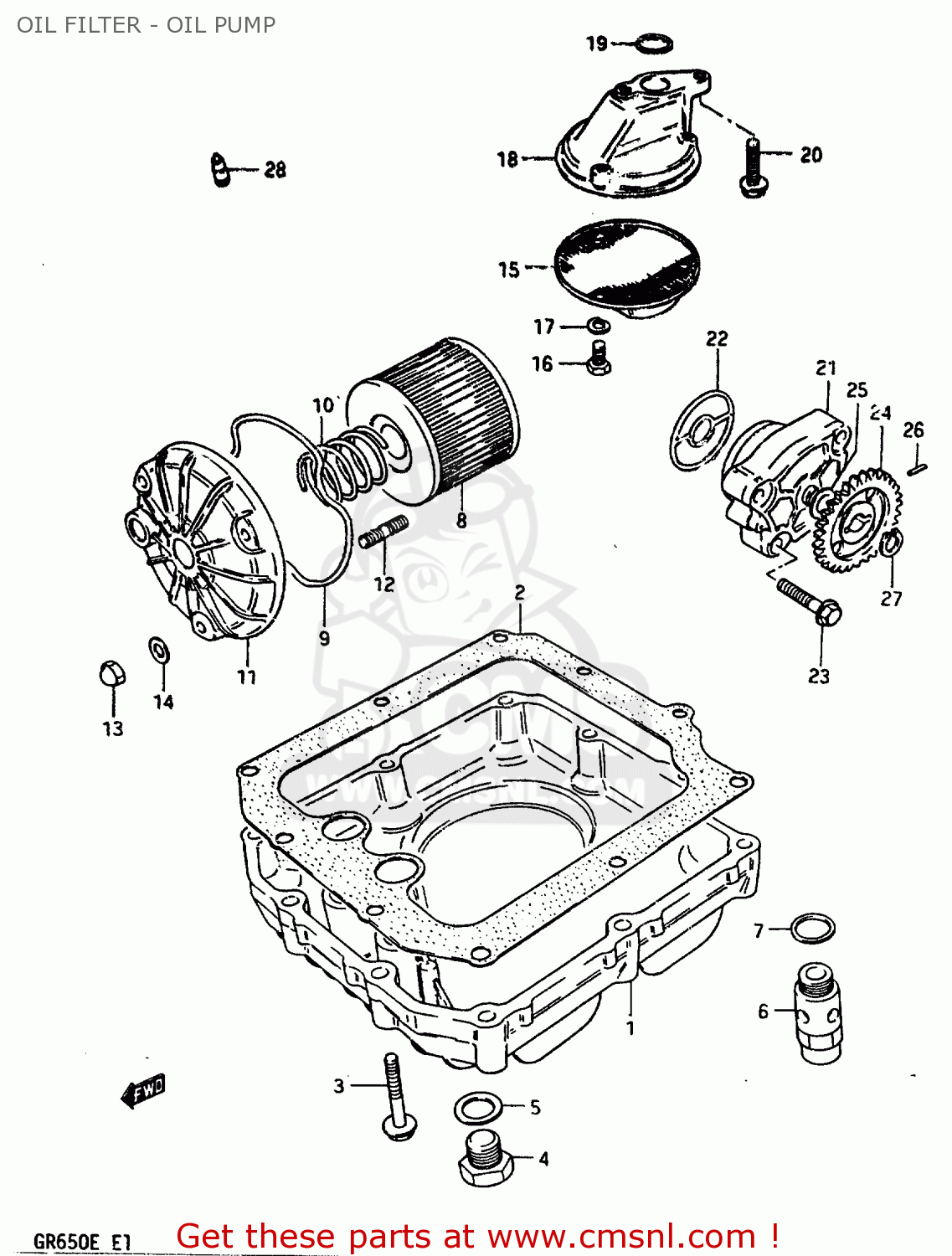

OIL FILTER - OIL PUMP - GR650X 1983 (D) (E01 E02 E06 E22 E24 E39)

ref

part #

description

quantity

1

1151115500
ref: 1

PAN,OIL

€ 455.50

2

1148915501
ref: 2

GASKET,OIL PAN (MCA)

€ 14.50

3

0151706305
ref: 3

BOLT 6X30

€ 2.50

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1644015500
ref: 6

REGULATOR ASSEMBLY,ENGINE

€ 37.00

7

0821214181
ref: 7

WASHER

€ 2.00

8

1651045040
ref: 8

FILTER ASSY,ENGINE OIL

€ 7.50

9

1651845000
ref: 9

O RING,OIL FILTER CHAMBER CAP

€ 7.50

10

0944032004
ref: 10

SPRING

€ 13.50

11

1651233320
ref: 11

CAP,OIL FILTER

€ 29.50

12

0142106208
ref: 12

STUD 6X20

€ 2.50

13

0831311065
ref: 13

NUT 6MM

€ 2.00

14

0832221065
ref: 14

WASHER

€ 2.00

15

1652009300
ref: 15

STRAINER,ENGINE OIL

€ 14.00

16

0110706128
ref: 16

BOLT

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

1652515500
ref: 18

PROTECTOR,OIL STRAINER

€ 0.00

19

0928016008
ref: 19

O RING(D:3.2,ID:15.8)

€ 1.50

20

0151706208
ref: 20

BOLT,REAR

€ 2.50

21

1640015500
ref: 21

PUMP ASSEMBLY,ENGINE OIL

€ 93.00

22

1649131300
ref: 22

O RING,OIL PUMP

€ 12.50

23

0151706308
ref: 23

BOLT

€ 2.00

24

1633115500
ref: 24

GEAR,OIL PUMP DRIVEN (N

€ 35.50

25

0822110185
ref: 25

SHIM

€ 2.00

26

0926104009
ref: 26

PIN(4X15.8)

€ 1.50

27

0833131109
ref: 27

CIRCLIP

€ 2.00

28

1643015500
ref: 28

VALVE ASSEMBLY,PISTON OIL

€ 0.00

OIL FILTER - OIL PUMP

all assemblies
