AIR CLEANER (MODEL Z/D/F/K)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

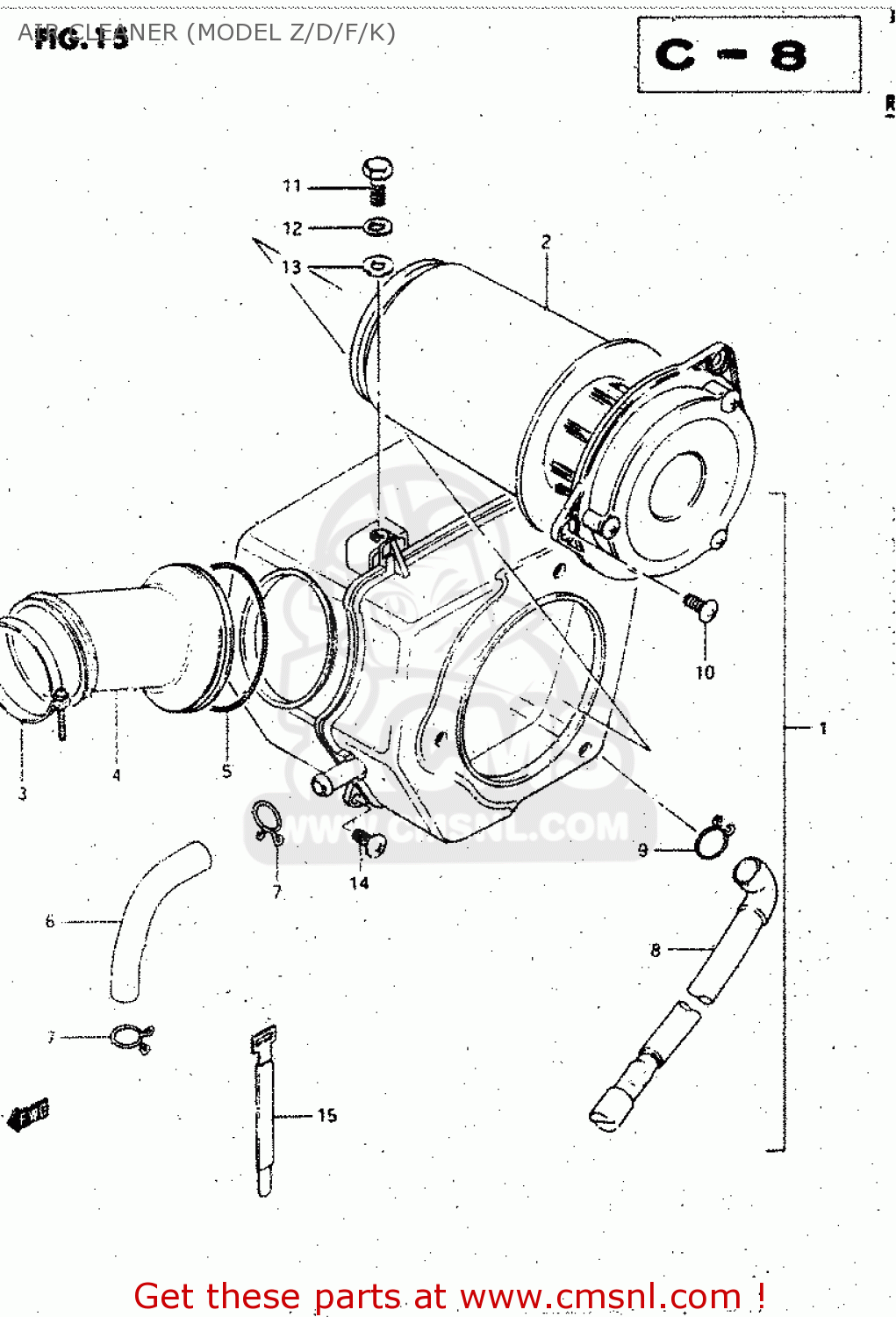

Air cleaner (model z/d/f/k) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

AIR CLEANER (MODEL Z/D/F/K) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
AIR CLEANER (MODEL Z/D/F/K) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
AIR CLEANER (MODEL Z/D/F/K) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1-1
1370005311
ref: 1-1
MODEL Z/D,ARROW RIGH
CLEANER ASSY
€ 134.00
1-2
1370005312
ref: 1-2
MODEL F/K
CLEANER ASSY,AIR
€ 134.00
2
1378038301
ref: 2
FILTER
1378038301
€ 21.50
3
0940252208
ref: 3
CLAMP
0940252208
€ 5.50
4
1388105310
ref: 4
TUBE, OUTLET
€ 15.50
5
1382638300
ref: 5
CLAMP,AIR CLEANER SIDE
1382638300
€ 3.00
6
1385305300
ref: 6
TUBE,BREATHER
1385305300
€ 13.00
7
1382800020
ref: 7
CLIP,BREATHER TUBE
1382800020
€ 2.00
8-1
1387000160
ref: 8-1
MODEL Z/D,ARROW RIGH
DRAIN TUBE
1387000160
€ 16.50
8-2
1387021291
ref: 8-2
MODEL F/K
DRAIN TUBE
€ 16.50
9-1
0940114301
ref: 9-1
MODEL Z/D
CLIP
0940114301
€ 2.00
9-2
1382400A00
ref: 9-2
MODEL F/K
CLIP
1382400A00
€ 2.50
10
0214205128
ref: 10
SCREW
0214205128
€ 1.50
11
0110706167
ref: 11
BOLT
0110706167
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
0832121067
€ 2.50
13
0916006006
ref: 13
WASHER
0916006006
€ 2.00
14
0214206167
ref: 14
SCREW
0214206167
€ 2.00
15
0940711301
ref: 15
CLAMP L:110
€ 6.00
