CRANKSHAFT

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

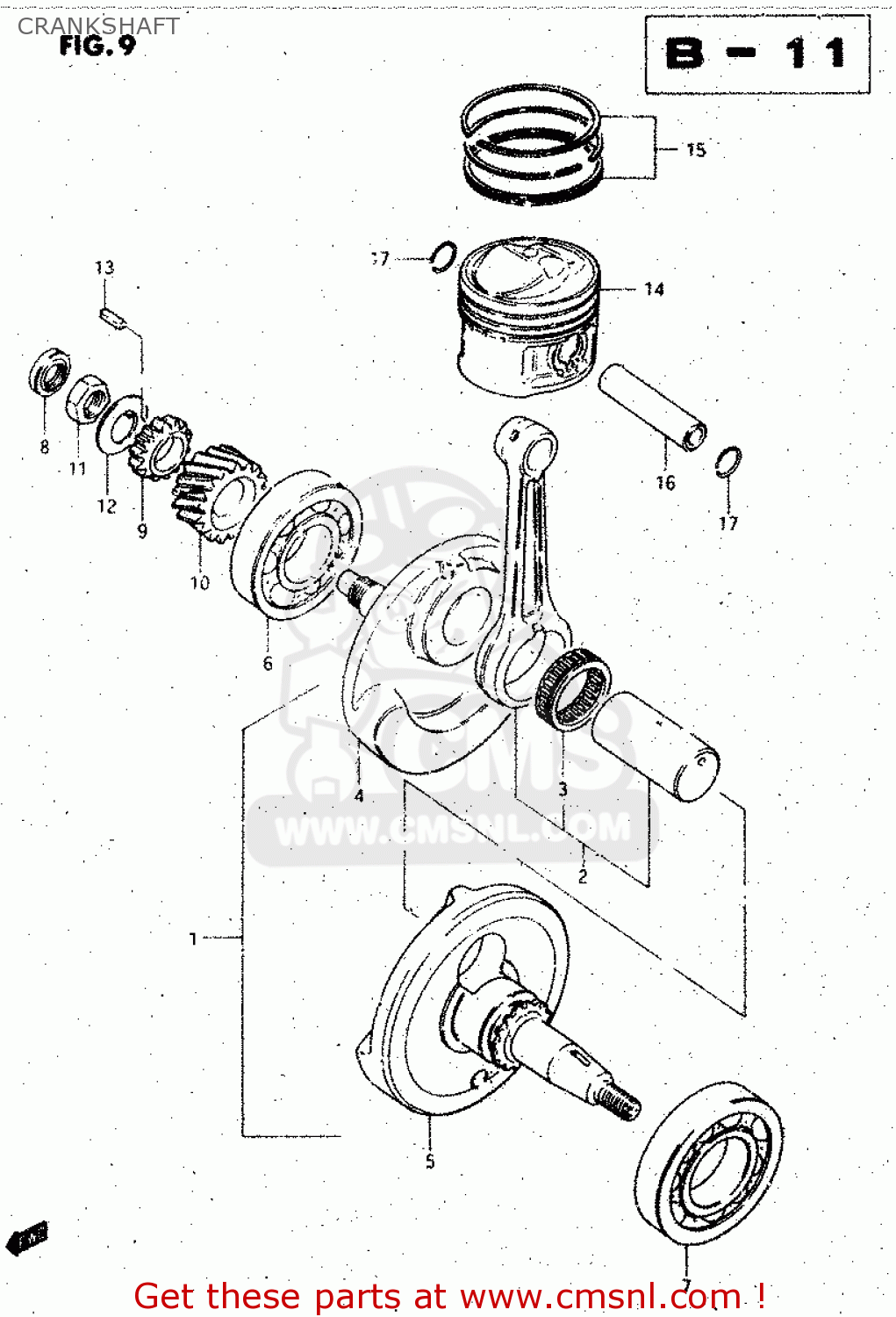

Crankshaft diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKSHAFT GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKSHAFT GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

1220005323
ref: 1-1
GS125ESZ/EZ/ESD/ESF/

CRANKSHAFT ASSEMBLY

€ 424.00

1-2

1220005224
ref: 1-2
GS125Z/D/UR

CRANKSHAFT ASSEMBLY

€ 312.50

2

1210505821
ref: 2

CONNECTING ROD SET

€ 163.00

3

09263280270B0
ref: 3
ARROW LEFT09263-2802

BEARING(28X36X15.8)

€ 24.50

4

1222105202
ref: 4

CRANKSHAFT,RIGHT

€ 150.50

5-1

1226105301
ref: 5-1
GS125ESZ/EZ/ESD/ESF/

CRANKSHAFT,L

€ 162.50

5-2

1226105203
ref: 5-2
GS125Z/D/UR

CRANKSHAFT,LEFT

€ 156.00

6

0926228014
ref: 6

BEARING(28X68X18)

€ 40.00

7

0926235038
ref: 7

BEARING(35X72X17)

€ 38.00

8

0928212009
ref: 8
ARROW LEFT09282-1200

SEAL,OIL(12X21X7)

€ 9.00

9

1632105201
ref: 9

GEAR,OIL PUMP DRIVE

€ 18.00

10

2111105200
ref: 10

GEAR,PRIMARY DRIVE

€ 33.00

11

0914016019
ref: 11

NUT

€ 4.00

12

0916616012
ref: 12

WASHER

€ 1.50

13

0942104004
ref: 13

KEY

€ 3.50

14-1

1211105202
ref: 14-1

PISTON (STD)

€ 39.50

14-2

1211105202050
ref: 14-2
OPT

PISTON (OS:0.5)

€ 70.00

14-3

1211105202100
ref: 14-3
OPT

PISTON (OS:1.0)

€ 77.00

15-1

1214001410
ref: 15-1

RING SET,PISTON

€ 37.50

15-2

1214001410050
ref: 15-2
OPT

RING SET,PISTON(OS:0.50)

€ 88.00

15-3

1214001410100
ref: 15-3
OPT

RING SET,PISTON(OS:1.0)

€ 39.50

16

1215105220
ref: 16

PIN,PISTON

€ 6.50

17

0938114001
ref: 17

RING,SNAP 14MM

€ 1.50
