REAR WHEEL (GS125UR)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

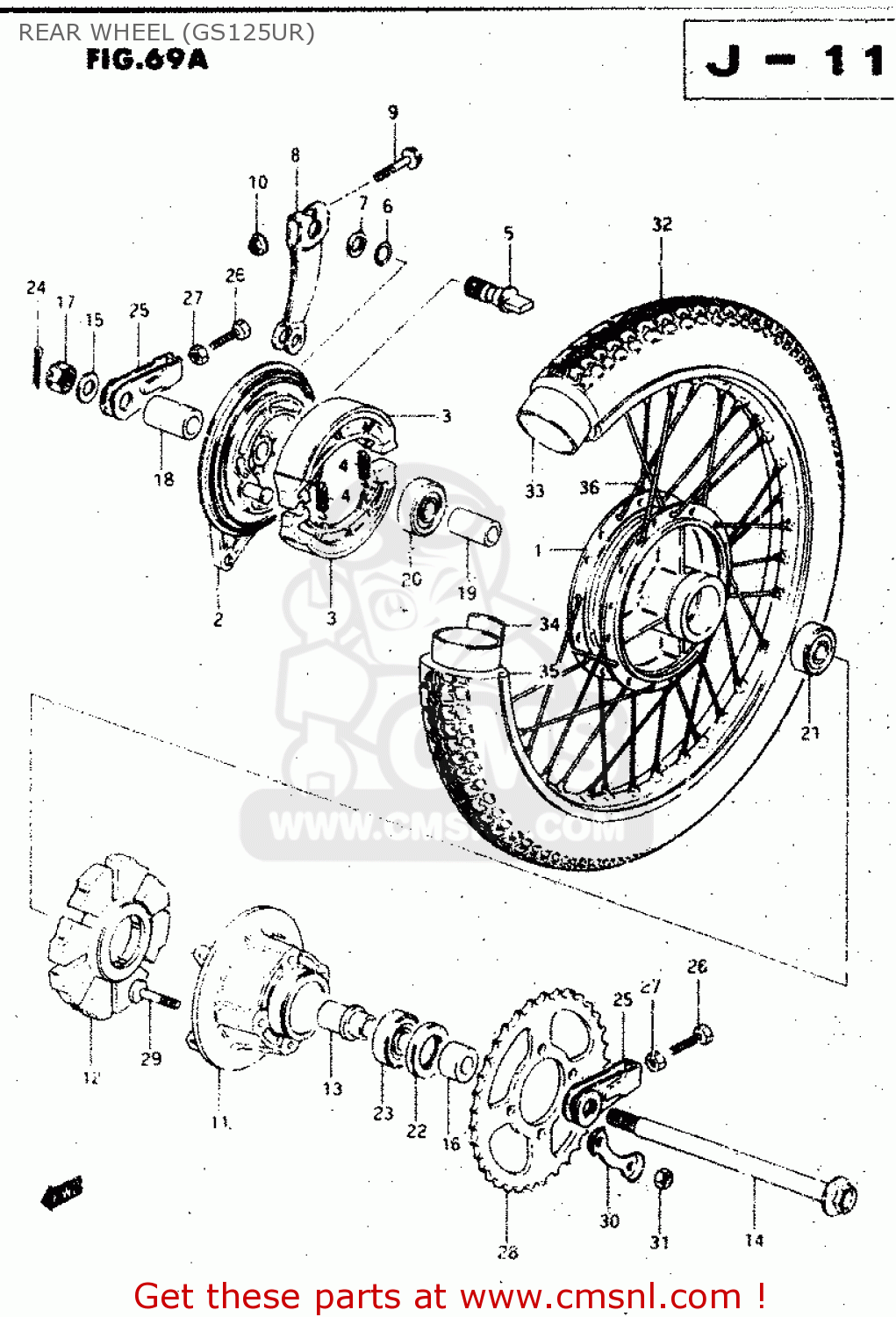

Rear wheel (gs125ur) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR WHEEL (GS125UR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR WHEEL (GS125UR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR WHEEL (GS125UR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
6411007005
ref: 1
HUB,RR WHEEL
€ 234.00
2
6421039115
ref: 2
PANEL,RR BRAKE ANCHOR
6421039115
€ 125.00
3
5441007040
ref: 3
SHOE,BRAKE
€ 35.00
4
0944307001
ref: 4
SPRING(L:34)
0944307001
€ 2.50
5
5444129305
ref: 5
CAM,BRAKE
5444129305
€ 13.00
6
0928014003
ref: 6
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
0916014001
€ 2.50
8
6445113200
ref: 8
LEVER,RR BRAKE CAM
6445113200
€ 9.50
9
0155006353
ref: 9
BOLT
0155006353
€ 2.50
10
0831610063
ref: 10
NUT
0831610063
€ 2.50
11
6461005301
ref: 11
DRUM,RR SPROCKET MOUNTING
€ 61.00
12
6465107001
ref: 12
ABSORBER ASSY,HUB SHOCK
6465107001
€ 16.00
13
6473305301
ref: 13
RETAINER,RR SPROCKET DRUM
6473305301
€ 6.50
14
6471148001
ref: 14
AXLE,RR
6471148001
€ 35.50
15
0832201143
ref: 15
WASHER
0832201143
€ 2.00
16
0918015042
ref: 16
SPACER(15X28X19)
0918015042
€ 5.50
17
0914114001
ref: 17
NUT
0914114001
€ 4.50
18
0918015002
ref: 18
SPACER(15.2X26X33)
0918015002
€ 5.00
19
0918015011
ref: 19
SPACER(15.3X21.7X63)
0918015011
€ 7.50
20
0814463027
ref: 20
BEARING
0814463027
€ 17.50
21
0814362027
ref: 21
BEARING
0814362027
€ 12.50
22
0928528001
ref: 22
SEAL,OIL(28X47X7)
0928528001
€ 11.50
23
0926220069
ref: 23
BEARING(20X47X14)
0926220069
€ 28.00
24
0411130308
ref: 24
COTTER PIN
0411130308
€ 1.50
25
6141036002
ref: 25
ADJUSTER,CHAIN
6141036002
€ 11.50
26
0910408034
ref: 26
BOLT(8X50)
0910408034
€ 3.00
27
0831000087
ref: 27
NUT
0831000087
€ 2.00
28
6451120731
ref: 28
SPROCKET,REAR
€ 29.50
29
0911908043
ref: 29
BOLT
0911908043
€ 2.00
30
0916908012
ref: 30
WASHER
0916908012
€ 2.00
31
0831000083
ref: 31
NUT
0831000083
€ 1.50
32
6510012B00
ref: 32
TIRE,RR(3.00-18)
€ 120.00
33
5520011601
ref: 33
TUBE,INNER
€ 24.50
34
5526111010
ref: 34
PROTECTOR,INNER TUBE
5526111010
€ 3.50
35
5531105300
ref: 35
RIM,FR WHEEL 1.60X18
5531105300
€ 86.50
36
6532020120
ref: 36
SPOKE SET,RR
6532020120
€ 34.50
