CAM CHAIN

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

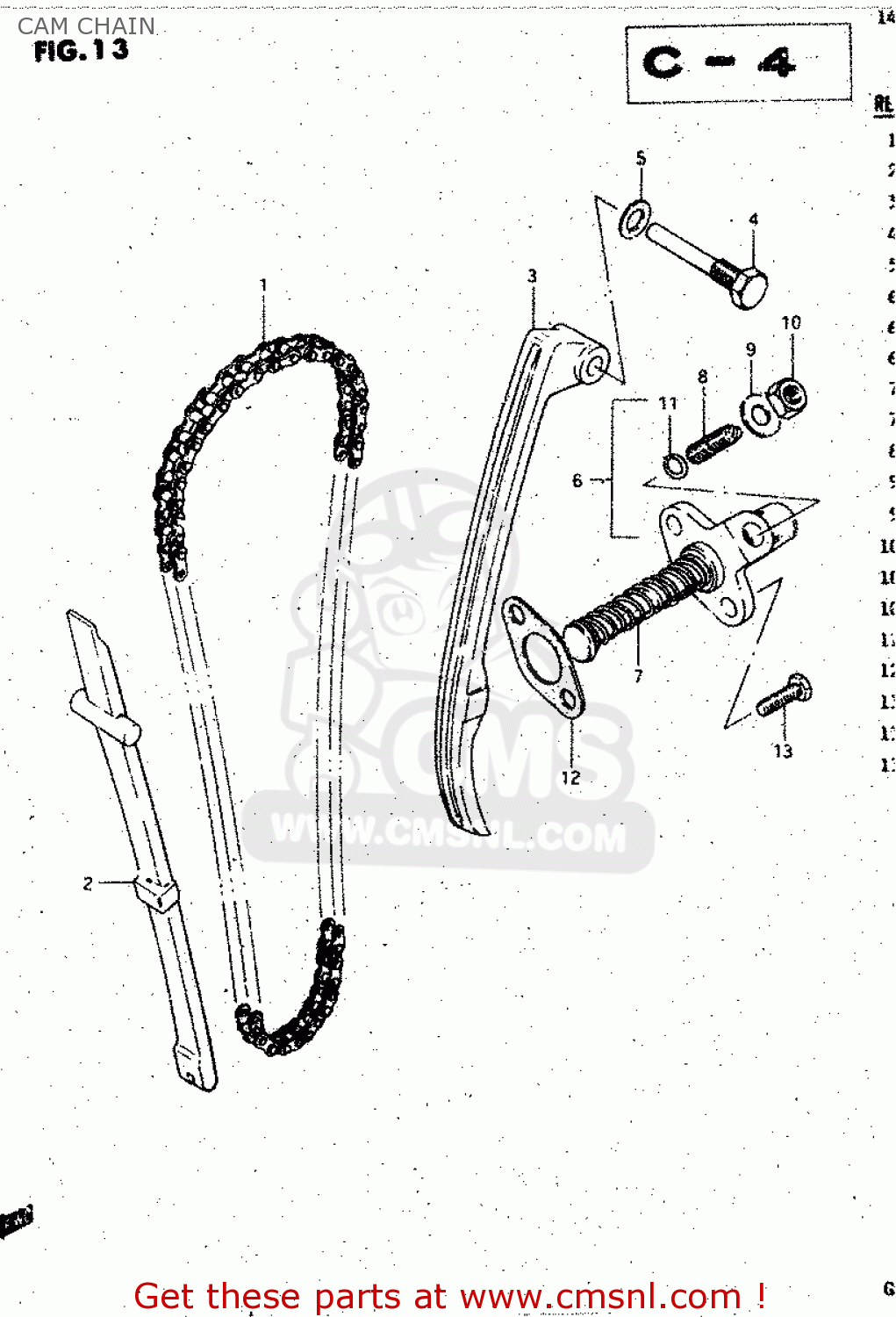

Cam chain diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CAM CHAIN GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CAM CHAIN GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1276044A00
ref: 1
98LE

CHAIN,CAMSHAFT DRIVE

€ 54.00

2

1277105200
ref: 2

GUIDE,CAM CHAIN

€ 20.50

3

1281105220
ref: 3
ARROW LEFT12811-0520

TENSIONER,CAM CHAIN

€ 24.50

4

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6-1

1283032430
ref: 6-1
MODEL Z

ADJUSTER ASSEMBLY,TENSIONER

€ 48.00

6-2

1283032461
ref: 6-2
MODEL D/F/K/L/M

ADJUSTER ASSEMBLY,TENSIONER

€ 73.00

6-3

1283032463
ref: 6-3
MODEL R

ADJUSTER ASSY,TENSIONER

€ 73.00

7-1

0944011015
ref: 7-1
MODEL Z

SPRING

€ 1.50

7-2

0944011018
ref: 7-2
MODEL D/F/K/L/M/R

SPRING

€ 2.00

8

1283845001
ref: 8

SCREW

€ 6.00

9-1

0832211088
ref: 9-1
MODEL Z

WASHER

€ 2.00

9-2

0832211084
ref: 9-2
MODEL D/F/K/L/M

WASHER

€ 1.50

10-1

0831012088
ref: 10-1
MODEL Z

NUT

€ 2.00

10-2

0831012085
ref: 10-2
MODEL D/F/K/L/M

NUT ,8MM

€ 1.50

10-3

0831610083
ref: 10-3
MODEL R

NUT

€ 3.00

11

0928006005
ref: 11

O RING(D:1.9,ID:5.7)

€ 2.50

12

1283732410
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

13-1

0110706207
ref: 13-1
MODEL Z

BOLT

€ 2.00

13-2

0110706205
ref: 13-2
MODEL D/F/K/L/M

BOLT

€ 2.00

13-3

0150006203
ref: 13-3
MODEL R

BOLT

€ 2.00

all assemblies
