FRONT WHEEL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

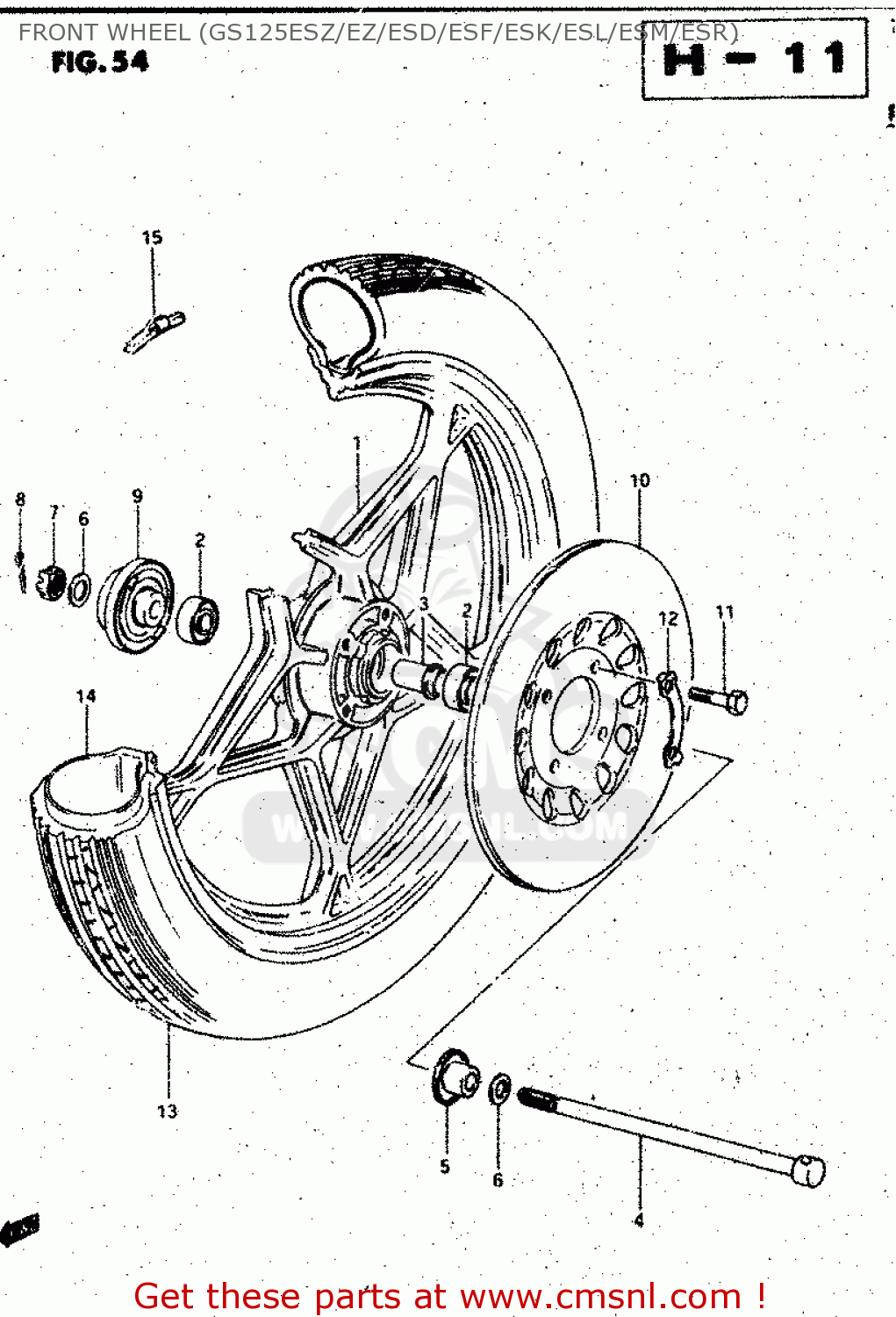

Front wheel (gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT WHEEL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT WHEEL (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

541111130112V
ref: 1-1
MODEL Z

WHEEL, FRONT (18X1.60) GOLD

€ 401.00

1-2

541111130112Z
ref: 1-2
MODEL Z

WHEEL, FRONT (18X1.60) SILVER

€ 395.50

1-3

541111137012V
ref: 1-3
MODEL D/F

WHEEL, FRONT (18X1.60) GOLD

€ 401.00

1-4

541111137012Z
ref: 1-4
MODEL D/F/K/L/M/R

WHEEL, FRONT (18X1.60) SILVER

€ 395.50

2

0812363017
ref: 2

BEARING

€ 13.50

3

0918012041
ref: 3

SPACER (12.6X19X52)

€ 4.50

4-1

5471141100
ref: 4-1
ARROW RIGHT54711-411

AXLE,FRONT

€ 42.00

4-2

5471141101
ref: 4-2

AXLE,FR

€ 42.00

5

5474011300
ref: 5

SPACER,FR AXLE,L

€ 13.50

6-1

0832211128
ref: 6-1
MODEL Z/D/F/K/L/M

WASHER

€ 2.00

6-2

0832201127
ref: 6-2
MODEL R

WASHER

€ 2.00

7-1

0831431128
ref: 7-1
MODEL Z/D/F/K/L/M

NUT 12MM

€ 2.00

7-2

0914112003
ref: 7-2
MODEL R

NUT

€ 4.50

8

0411130308
ref: 8

COTTER PIN

€ 1.50

9

5460036400
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 60.00

10

5921113001
ref: 10

DISC,FR BRAKE

€ 186.50

11

0910008140
ref: 11

BOLT(8X25)

€ 2.00

12

0916908019
ref: 12

WASHER

€ 2.00

13-1

5510039310
ref: 13-1
MODEL Z/D/F/K/L ARRO

TIRE,FRONT

€ 201.00

13-2

5510039320
ref: 13-2
MODEL M/R ARROW RIGH

TIRE,FRONT

€ 201.00

13-3

5510012B00
ref: 13-3

TIRE,FR(2.75-18)

€ 201.00

14

5520011601
ref: 14

TUBE,INNER

€ 24.50

15-1

5541147002
ref: 15-1

BALANCER,WHEEL NO.1(20G)

€ 4.00

15-2

5541247002
ref: 15-2

BALANCER,WHEEL

€ 3.50
