FUEL TANK

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

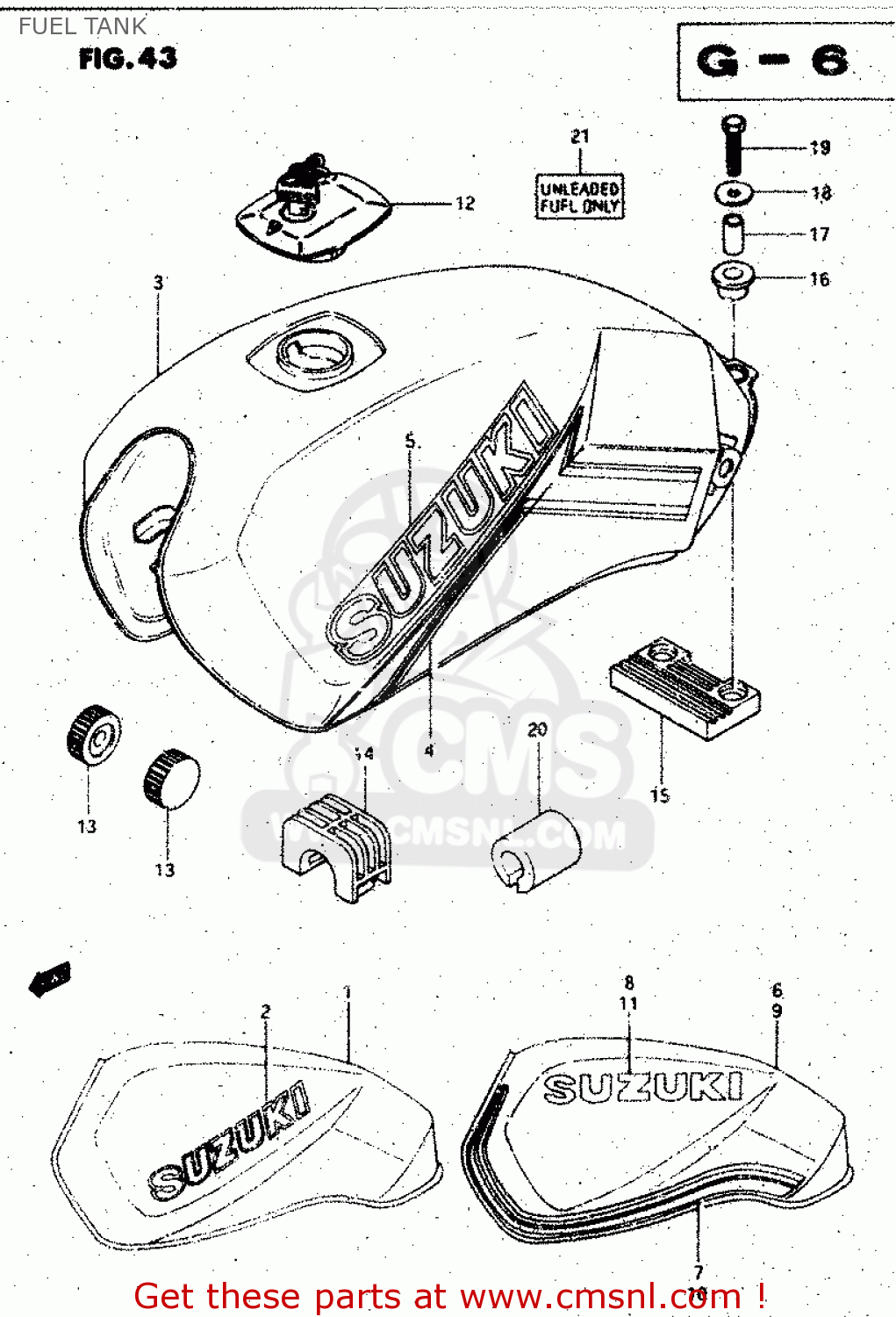

Fuel tank diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FUEL TANK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FUEL TANK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FUEL TANK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1-1
441000535007P
ref: 1-1
MODEL Z
TANK ASSY, FUEL (RED)
€ 420.00
1-2
441000535004Y
ref: 1-2
MODEL Z
TANK ASSY, FUEL (BLUE)
€ 420.00
1-3
4410005350019
ref: 1-3
MODEL Z
TANK ASSY, FUEL (BLACK)
€ 420.00
2
6811129310064
ref: 2
MODEL Z
EMBLEM,FUEL TANK(WHITE)
6811129310064
€ 14.00
3-1
441000537007P
ref: 3-1
MODEL D
TANK ASSY, FUEL (RED)
441000537007P
€ 420.00
3-2
441000537004Y
ref: 3-2
MODEL D,GS125UK E91
TANK ASSY, FUEL (BLUE)
€ 420.00
3-3
4410005370019
ref: 3-3
MODEL D,GS125UK E91
TANK ASSY, FUEL (BLACK)
4410005370019
€ 420.00
3-4
441000537014L
ref: 3-4
MODEL D
TANK ASSY, FUEL (WHITE)
€ 420.00
3-5
44100053700NH
ref: 3-5
GS125UK E91
TANK ASSY, FUEL (RED)
€ 0.00
4-1
681100530088T
ref: 4-1
MODEL D FOR 07P GS12
TAPE SET, FUEL TANK
€ 43.00
4-2
681100530088U
ref: 4-2
MODEL D FOR 04Y GS12
TAPE SET, FUEL TANK
€ 0.00
4-3
681100530070G
ref: 4-3
MODEL D FOR 019 GS12
TAPE SET, FUEL TANK
€ 0.00
4-4
681100530088V
ref: 4-4
MODEL D FOR 14L
TAPE SET, FUEL TANK
€ 0.00
5-1
6811105300064
ref: 5-1
MODEL D FOR 07P,04Y
EMBLEM (WHITE)
€ 10.00
5-2
6811105300764
ref: 5-2
MODEL D FOR 019 GS12
EMBLEM (GOLD)
€ 6.50
5-3
6811105300019
ref: 5-3
MODEL D FOR 14L
EMBLEM (BLACK)
€ 9.50
6-1
441000539007P
ref: 6-1
MODEL F/K
TANK ASSY, FUEL (RED)
€ 0.00
6-2
441000539004Y
ref: 6-2
MODEL F
TANK ASSY, FUEL (BLUE)
€ 420.00
6-3
4410005390019
ref: 6-3
MODEL F
TANK ASSY, FUEL (BLACK)
€ 420.00
6-4
441000539014L
ref: 6-4
MODEL F
TANK ASSY, FUEL (WHITE)
€ 420.00
6-5
44100053900NH
ref: 6-5
MODEL L
TANK ASSY,FUEL(RED)
€ 0.00
6-6
441000539022R
ref: 6-6
MODEL K/L
TANK ASSY, FUEL (WHITE)
€ 420.00
7-1
68110053107RN
ref: 7-1
MODEL F/K/L FOR 07P,
TAPE SET, FUEL TANK
€ 58.00
7-2
68110053107SL
ref: 7-2
MODEL F FOR 04Y
TAPE SET, FUEL TANK
€ 0.00
7-3
68110053107RM
ref: 7-3
MODEL F FOR 019
TAPE SET, FUEL TANK
€ 0.00
7-4
68110053107DH
ref: 7-4
MODEL F FOR 14L
TAPE SET, FUEL TANK
€ 0.00
7-5
68110053102WT
ref: 7-5
MODEL K/L FOR 22R,0N
TAPE SET, FUEL TANK
€ 0.00
8-1
6811143400064
ref: 8-1
MODEL F FOR 07P,04Y,
EMBLEM
6811143400064
€ 10.00
8-2
6811143400019
ref: 8-2
MODEL F FOR 14L MODE
EMBLEM
6811143400019
€ 9.50
9-1
441000539002X
ref: 9-1
MODEL M/R
TANK ASSY,FUEL(BLACK)
€ 0.00
9-2
441000539038K
ref: 9-2
MODEL M
TANK ASSY, FUEL (BLUE)
€ 420.00
9-3
44100053900NF
ref: 9-3
MODEL R
TANK ASSY, FUEL (BLUE)
€ 0.00
9-4
44100053900BX
ref: 9-4
MODEL M
TANK ASSY, FUEL (RED)
44100053900BX
€ 420.00
9-5
44100053900NH
ref: 9-5
MODEL R
TANK ASSY,FUEL(RED)
€ 0.00
10-1
6811005310G38
ref: 10-1
MODEL M/R FOR 02X
TAPE SET, FUEL TANK
€ 0.00
10-2
6811005310G39
ref: 10-2
MODEL M/R FOR 38K,0N
TAPE SET, FUEL TANK
€ 0.00
10-3
6811005310G41
ref: 10-3
MODEL M FOR 0BX
TAPE SET, FUEL TANK
€ 0.00
10-4
68110053107RN
ref: 10-4
MODEL R FOR 0NH
TAPE SET, FUEL TANK
€ 58.00
11-1
681114340032D
ref: 11-1
MODEL M/R FOR 02X
EMBLEM
€ 0.00
11-2
6811143400064
ref: 11-2
MODEL M/R FOR 38K,0N
EMBLEM
6811143400064
€ 10.00
11-3
681114340022R
ref: 11-3
MODEL M FOR 0BX
EMBLEM
681114340022R
€ 8.00
12-1
4420049017KEY
ref: 12-1
MODEL Z/D/F/K/L
CAP SET,FUEL TANK
€ 121.00
12-2
4420049810
ref: 12-2
MODEL M/R
CAP SET,FUEL TANK
4420049810
€ 121.00
13
0932910016
ref: 13
CUSHION
0932910016
€ 3.00
14
4454105300
ref: 14
MODEL Z
CUSHION,FUEL TANK UPR FR
4454105300
€ 10.50
15
4454238300
ref: 15
CUSHION,TANK RR NO.1
4454238300
€ 8.00
16
0932010022
ref: 16
CUSHION
0932010022
€ 2.50
17
0918006067
ref: 17
SPACER(6.5X10.5X22.5)
0918006067
€ 2.50
18-1
0916006612
ref: 18-1
MODEL Z/D/F/K/L/M
WASHER
€ 0.00
18-2
0916006054
ref: 18-2
MODEL R
WASHER(6.5X22X1.6)
0916006054
€ 2.00
19
0910006033
ref: 19
BOLT(6X35)
0910006033
€ 12.50
20
4454505350
ref: 20
CUSHION
€ 9.50
21
8693273060
ref: 21
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
