FRONT FORK

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

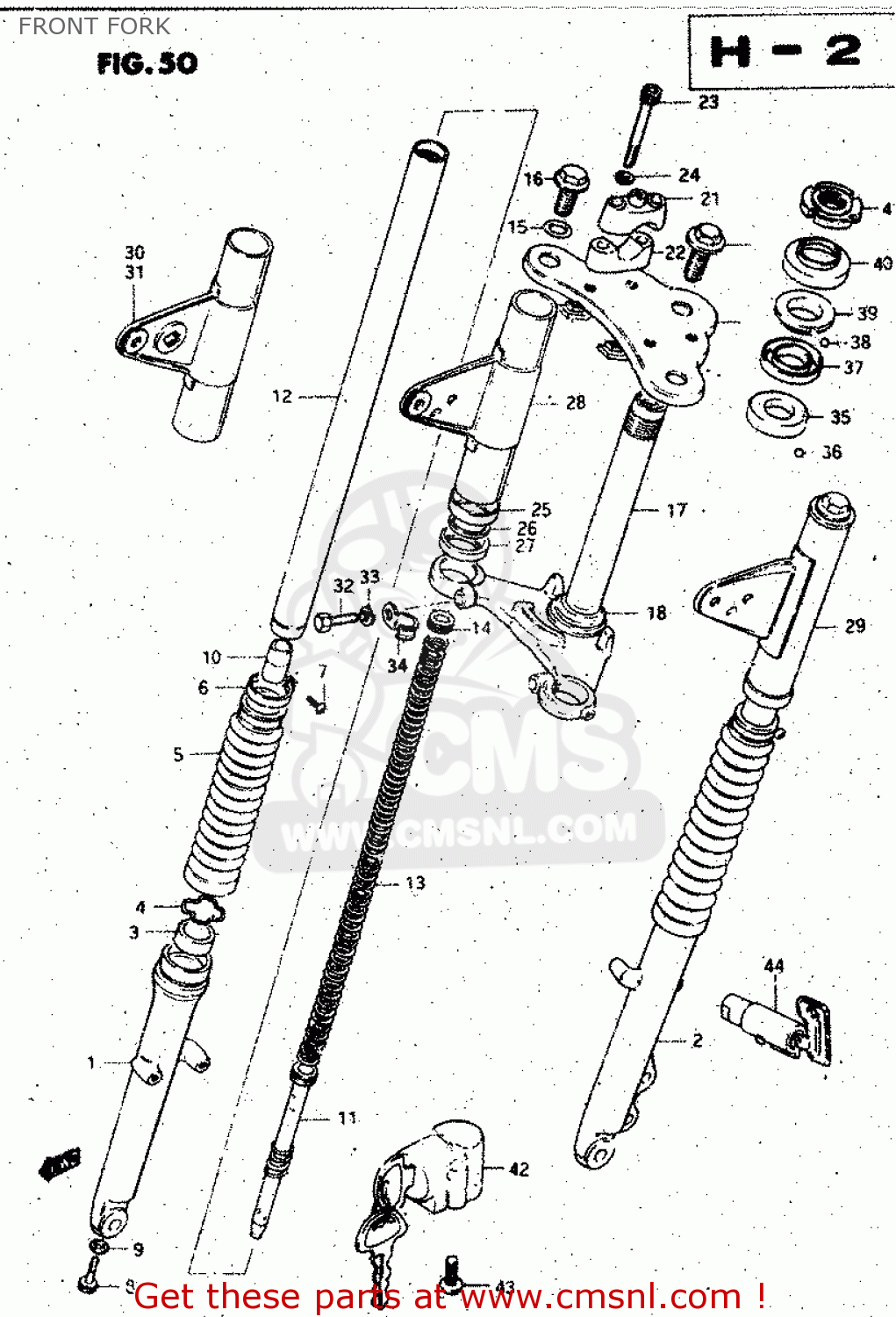

Front fork diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
0
5110005330291
ref: 0
FRONT FORK ASSY (BLACK)
€ 0.00
0
5110005340291
ref: 0
E15
FRONT FORK ASSY (BLACK)
€ 0.00
0
5110005350291
ref: 0
E18,E30,E34,E39 MODE
FRONT FORK ASSY (BLACK)
€ 900.00
1
5113036500
ref: 1
TUBE,OUTER,R
5113036500
€ 88.50
2
5114036500
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
5115329400
€ 11.00
4
5115639260
ref: 4
RING,SNAP
5115639260
€ 2.50
5
5157129500
ref: 5
BOOT
5157129500
€ 19.00
6
5157529500
ref: 6
BAND,BOOT
€ 6.50
7-1
0211204167
ref: 7-1
MODEL Z/D/F/K/L
SCREW
0211204167
€ 1.00
7-2
0211204163
ref: 7-2
MODEL M/R
SCREW 4X16
0211204163
€ 1.00
8
5114716310
ref: 8
BOLT
€ 0.00
9
5114841310
ref: 9
GASKET (NAS)
5114841310
€ 2.50
10
5119536220
ref: 10
PIECE,OIL LOCK
5119536220
€ 11.50
11
5114605330
ref: 11
FRONT FORK DAMPER TUBE
5114605330
€ 20.00
12-1
5111005330
ref: 12-1
MODEL Z/D/F/K/L
TUBE, INNER
€ 119.00
12-2
5111039680
ref: 12-2
MODEL M/R
TUBE,FORK INNER
5111039680
€ 119.00
13
5117105330
ref: 13
SPRING
€ 25.50
14
5135336220
ref: 14
NUT
5135336220
€ 7.00
15-1
5111736220
ref: 15-1
MODEL Z/D/F/K/L
O RING
€ 2.00
15-2
0928022001
ref: 15-2
MODEL M/R
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
16-1
5135139220
ref: 16-1
MODEL Z/D/F/K/L
CAP
5135139220
€ 12.00
16-2
5135139221
ref: 16-2
MODEL M/R
CAP,FORK
5135139221
€ 12.00
17-1
5141036230
ref: 17-1
MODEL Z/D
STEM, STEERING
€ 135.50
17-2
5141036231
ref: 17-2
MODEL F/K/L/M/R
STEM,STEERING
€ 135.50
17-3
5141005340
ref: 17-3
MODEL Z/D E15
STEM, STEERING
€ 123.00
17-4
5141005341
ref: 17-4
MODEL F E15
STEM,STEERING
€ 123.00
18
5162133001
ref: 18
RACE,STEERING OUTER LWR
5162133001
€ 10.00
19
5131005330291
ref: 19
HEAD,STEERING STEM
5131005330291
€ 64.50
20
5135239220
ref: 20
ARROW LEFT51352-3914
BOLT
5135239220
€ 4.00
21
5621129900291
ref: 21
HOLDER,HANDLEBAR(BLACK)
5621129900291
€ 9.00
22
5621127200291
ref: 22
HOLDER,HANDLE UPR
5621127200291
€ 13.50
23
0711008556
ref: 23
BOLT
€ 3.50
24-1
0832121088
ref: 24-1
MODEL Z/D/F/K/L
LOCK WASHER
0832121088
€ 2.00
24-2
0832101087
ref: 24-2
MODEL M/R
WASHER,LOCK
0832101087
€ 2.00
25
5155325210
ref: 25
CUSHION,HEAD LAMP BRACKET
5155325210
€ 6.50
26
5155110200
ref: 26
GUIDE,BRACKET
5155110200
€ 5.50
27
5155539640
ref: 27
SPACER
€ 3.00
28
5153005330291
ref: 28
BRACKET,HEADLAMP,R
€ 33.00
29
5154005330291
ref: 29
BRACKET,HEADLAMP,L
€ 31.50
30-1
5153005340291
ref: 30-1
E15,E18,E30,E34,E39
BRACKET, HEADLAMP RH
€ 36.50
30-2
5153005341291
ref: 30-2
MODEL F E15
BRACKET,HEADLAMP,R
€ 36.50
31-1
5154005340291
ref: 31-1
E15,E18,E30,E34,E39
BRACKET, HEADLAMP LH
€ 36.50
31-2
5154005341291
ref: 31-2
MODEL F E15
BRACKET,HEADLAMP,L
€ 36.50
32
5145128012
ref: 32
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
33-1
0832121128
ref: 33-1
MODEL Z/D/F/K/L
WASHER,LOCK 12
0832121128
€ 2.50
33-2
0832101127
ref: 33-2
MODEL M/R
WASHER,LOCK
0832101127
€ 2.50
34
5145536010
ref: 34
CLIP
5145536010
€ 6.50
35
5161133002
ref: 35
LACE,STEERING INNER LWR
5161133002
€ 7.00
36
0611108003
ref: 36
BALL
0611108003
€ 1.50
37
5161120002
ref: 37
RACE,STEERING INNER UPR
5161120002
€ 5.50
38
0611106003
ref: 38
BALL
0611106003
€ 1.50
39
5162128000
ref: 39
RACE,STEERING OUTER UPR
5162128000
€ 7.00
40
5164325001
ref: 40
DUST SEAL,STEERING UPR
5164325001
€ 4.50
41
5163128000
ref: 41
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
42
5191025311
ref: 42
LOCK ASSY,STEERING
5191025311
€ 22.50
43-1
0211235127
ref: 43-1
MODEL Z/D/F/K/L/M
SCREW
€ 1.00
43-2
0211235123
ref: 43-2
MODEL R
SCREW
0211235123
€ 1.50
44
5190030901
ref: 44
E15
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
