GEAR SHIFTING

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

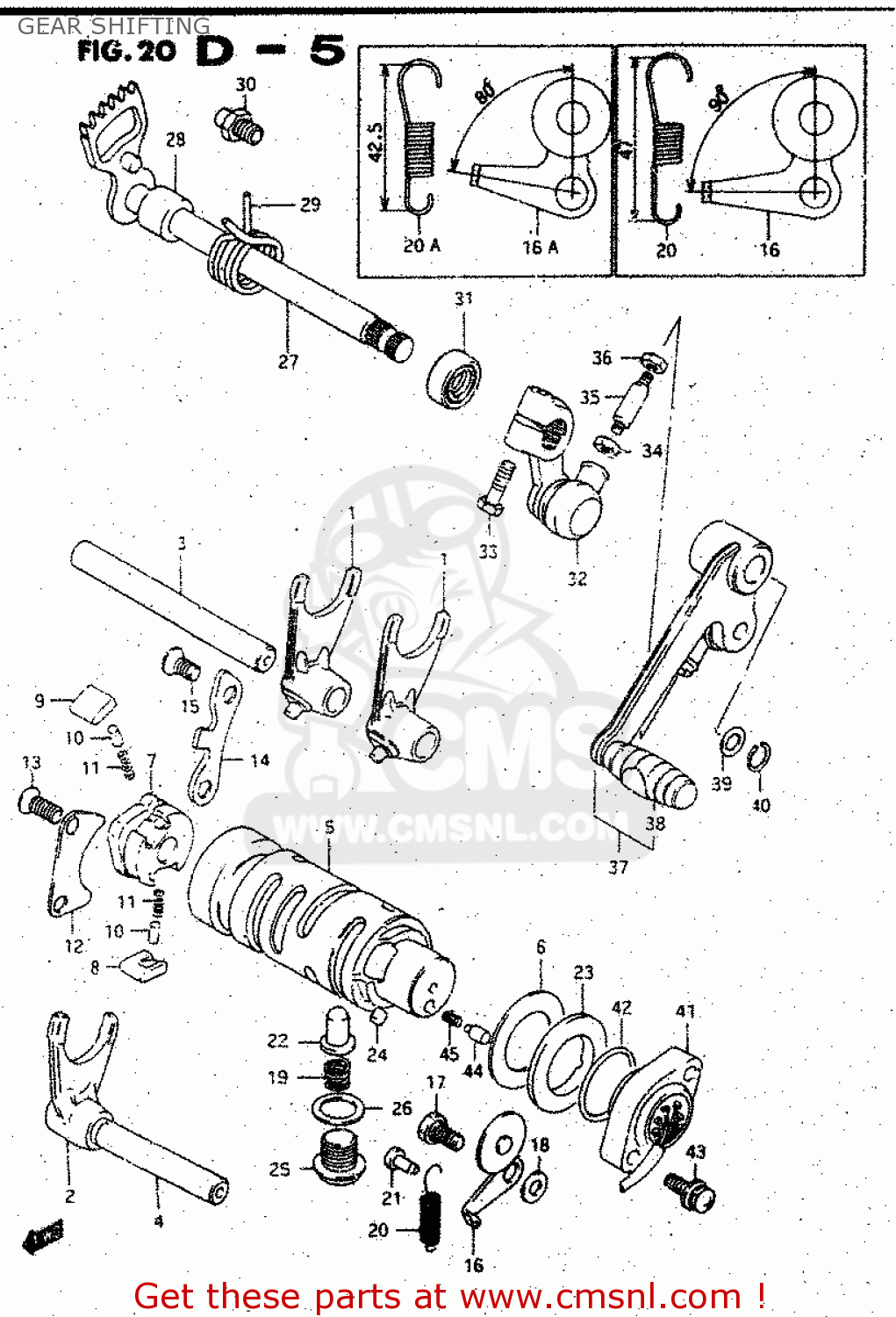

Gear shifting diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

GEAR SHIFTING GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
GEAR SHIFTING GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
GEAR SHIFTING GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3-1
2541116701
ref: 3-1
MODEL Z/D/F/K/L/M
SHAFT,GEAR SHIFT FORK(L:109)
2541116701
€ 11.50
3-2
2541105201
ref: 3-2
UR E71,MODEL R
SHAFT,GEAR SHIFT FORK
€ 11.50
4-1
2542135402
ref: 4-1
MODEL Z/D/F/K/L/M
SHAFT,GEAR SHIFT FORK
€ 19.00
4-2
2542135403
ref: 4-2
UR E71,MODEL R
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
CAM,GEAR SHIFT
€ 75.00
6
0821125401
ref: 6
WASHER,THRUST
0821125401
€ 2.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
2533130001
€ 3.50
13
0212206123
ref: 13
SCREW
0212206123
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
SCREW
0212206123
€ 3.00
16
2535005200
ref: 16
~E.NO.117898,ARROW R
STOPPER,GEAR SHIFTING
€ 8.00
16A
2535044A00
ref: 16A
MODEL K/L/M/R E.NO.1
STOPPER,GEAR SHIFT CAM
2535044A00
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
0911106054
€ 1.50
18
0821106141
ref: 18
WASHER
0821106141
€ 2.50
19-1
0944011016
ref: 19-1
UR E71,MODEL Z/D/F/K
SPRING
0944011016
€ 7.50
19-2
0944011014
ref: 19-2
MODEL R
SPRING
0944011014
€ 1.50
20
0944308012
ref: 20
~E.NO.117898,ARROW R
SPRING
0944308012
€ 3.00
20A
0944308044
ref: 20A
MODEL K/L/M/R E.NO.1
SPRING
0944308044
€ 1.50
21
0922304001
ref: 21
RIVET
0922304001
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0924714026
ref: 25
PLUG(14X12)
0924714026
€ 3.50
26-1
0916814004
ref: 26-1
MODEL Z/D/F/K/L/M
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
26-2
0916814002
ref: 26-2
UR E71,MODEL R
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
2551005201
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
31
0928512002
ref: 31
OIL SEAL
0928512002
€ 7.00
32
2552047020
ref: 32
ARM,GEAR SHIFT LINK
2552047020
€ 53.50
33
0150006207
ref: 33
BOLT
0150006207
€ 2.00
34
0831000067
ref: 34
NUT
0831000067
€ 2.50
35
2552533200
ref: 35
ROD,GEAR SHIFT LINK
2552533200
€ 6.00
36
0914006011
ref: 36
NUT
0914006011
€ 1.50
37
2560005311
ref: 37
LEVER ASSY,GEAR SHIFT
2560005311
€ 40.50
38
2565216500
ref: 38
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
39
0916012011
ref: 39
WASHER(12.5X20X1)
0916012011
€ 1.50
40
0833131126
ref: 40
CIRCLIP,12 MM
0833131126
€ 2.00
41-1
3772033200
ref: 41-1
GS125ESZ/EZ/ESD/ESF/
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
3772033200
€ 92.50
41-2
3772044600
ref: 41-2
GS125Z/D,UR E71
TERMINAL BASE,NEUTRAL SWITCH
3772044600
€ 51.00
42
0928026003
ref: 42
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
43
0211275203
ref: 43
SCREW
€ 3.00
44
0920905011
ref: 44
PIN(5X15.5)
0920905011
€ 2.00
45
0944004010
ref: 45
SPRING
0944004010
€ 1.50
