COWLING (GS125ESM/ESR)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

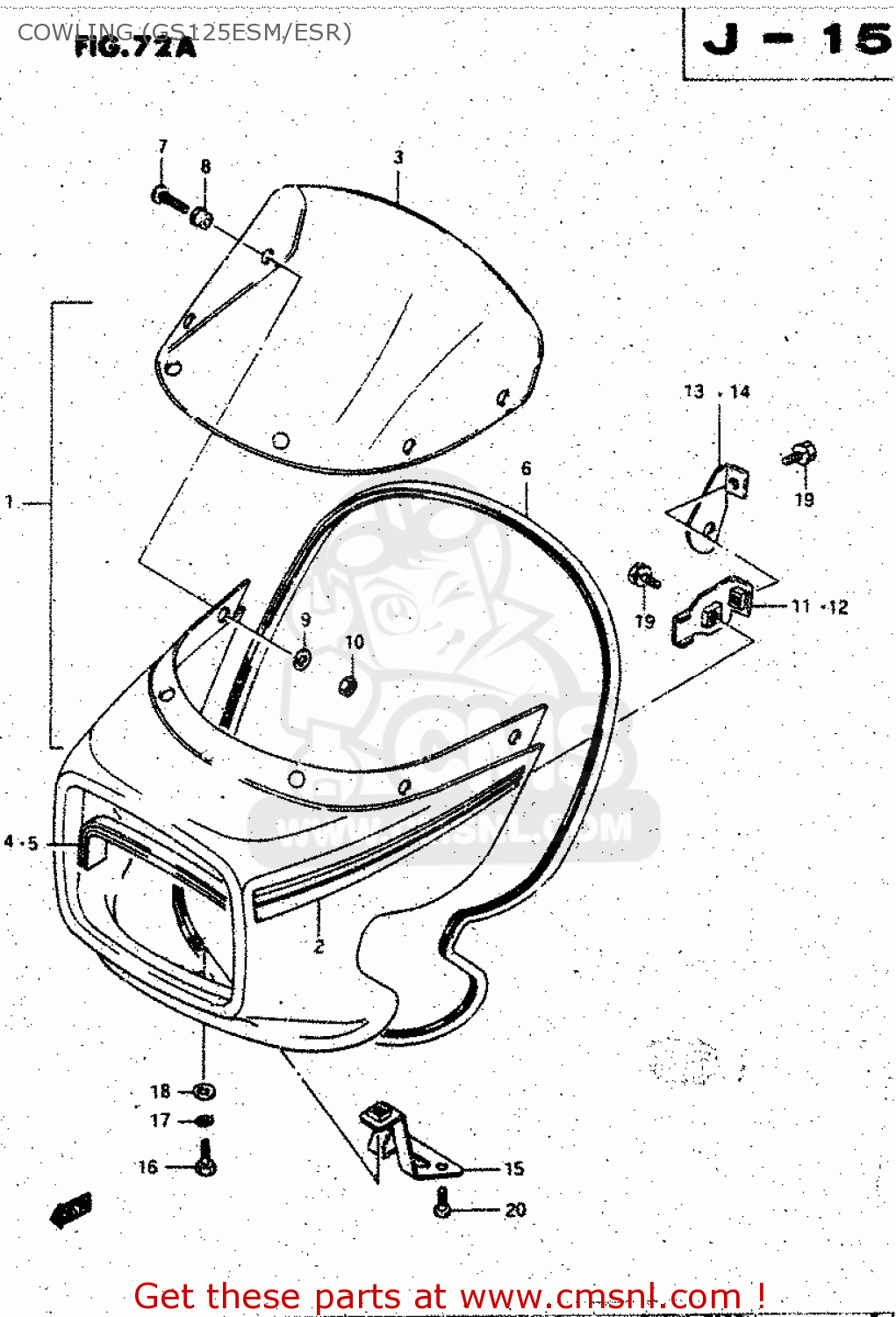

Cowling (gs125esm/esr) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GS125ESM/ESR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GS125ESM/ESR) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

944000539002X
ref: 1-1
GS125ESM/ESR

COWLING ASSY (BLACK)

€ 243.00

1-2

944000539038K
ref: 1-2
GS125ESM

COWLING ASSY (BLUE)

€ 201.50

1-3

94400053900BX
ref: 1-3
GS125ESM

COWLING ASSY (RED)

€ 0.00

1-4

94400053900NF
ref: 1-4
GS125ESM/ESR

COWLING ASSY (BLUE)

€ 201.50

1-5

94400053900NH
ref: 1-5
GS125ESR

COWLING ASSY (RED)

€ 173.00

2-1

6819005310G38
ref: 2-1
FOR 02X

TAPE SET

€ 0.00

2-2

6819005310G39
ref: 2-2
FOR 38K,0NF

TAPE SET

€ 0.00

2-3

6819005310G41
ref: 2-3
FOR 0BX

TAPE SET

€ 0.00

2-4

68190053107RN
ref: 2-4
FOR 0NH

TAPE SET

€ 0.00

3

9461136500
ref: 3

WINDOW,COWLING

€ 37.00

4

9459139300
ref: 4

MOLDING,HEADLAMP GRILL

€ 11.50

5

9459239300
ref: 5

MOLDING,HEADLAMP GRILL

€ 11.50

6

9463144110
ref: 6
L:1920ARROW RIGHT132

MOLD,COWLING

€ 18.00

7

0913905021
ref: 7

SCREW(5X12)

€ 2.00

8

0932005008
ref: 8

CUSHION

€ 5.00

9

0832201053
ref: 9

WASHER

€ 2.50

10

0831000053
ref: 10

NUT

€ 2.50

11

9451005300
ref: 11

BRACE, COWLING RH

€ 7.00

12

9453005300
ref: 12

BRACE, COWLING LH

€ 5.50

13

9452105361
ref: 13

BRACKET,COWLING FITTING,R

€ 4.50

14

9456105361
ref: 14

BRACKET,COWLING FITTING,L

€ 7.50

15

9455005351
ref: 15

BRACKET,COWLING LWR

€ 6.00

16-1

0110706165
ref: 16-1
GS125ESM

BOLT 6X16

€ 2.00

16-2

0911806067
ref: 16-2
GS125ESR

BOLT

€ 1.50

17

0832121064
ref: 17
GS125ESM

WASHER,LOCK

€ 2.00

18

0916006039
ref: 18
GS125ESM

WASHER (6.5X18X1.6)

€ 2.00

19-1

0113406125
ref: 19-1
GS125ESM

BOLT ,6X12

€ 1.50

19-2

0157006125
ref: 19-2
GS125ESR

BOLT

€ 0.00

20-1

0214206164
ref: 20-1
GS125ESM

SCREW

€ 2.50

20-2

0214206163
ref: 20-2
GS125ESR

SCREW

€ 2.50
