REAR FENDER (MODEL Z/D/F/K/L/M)

GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

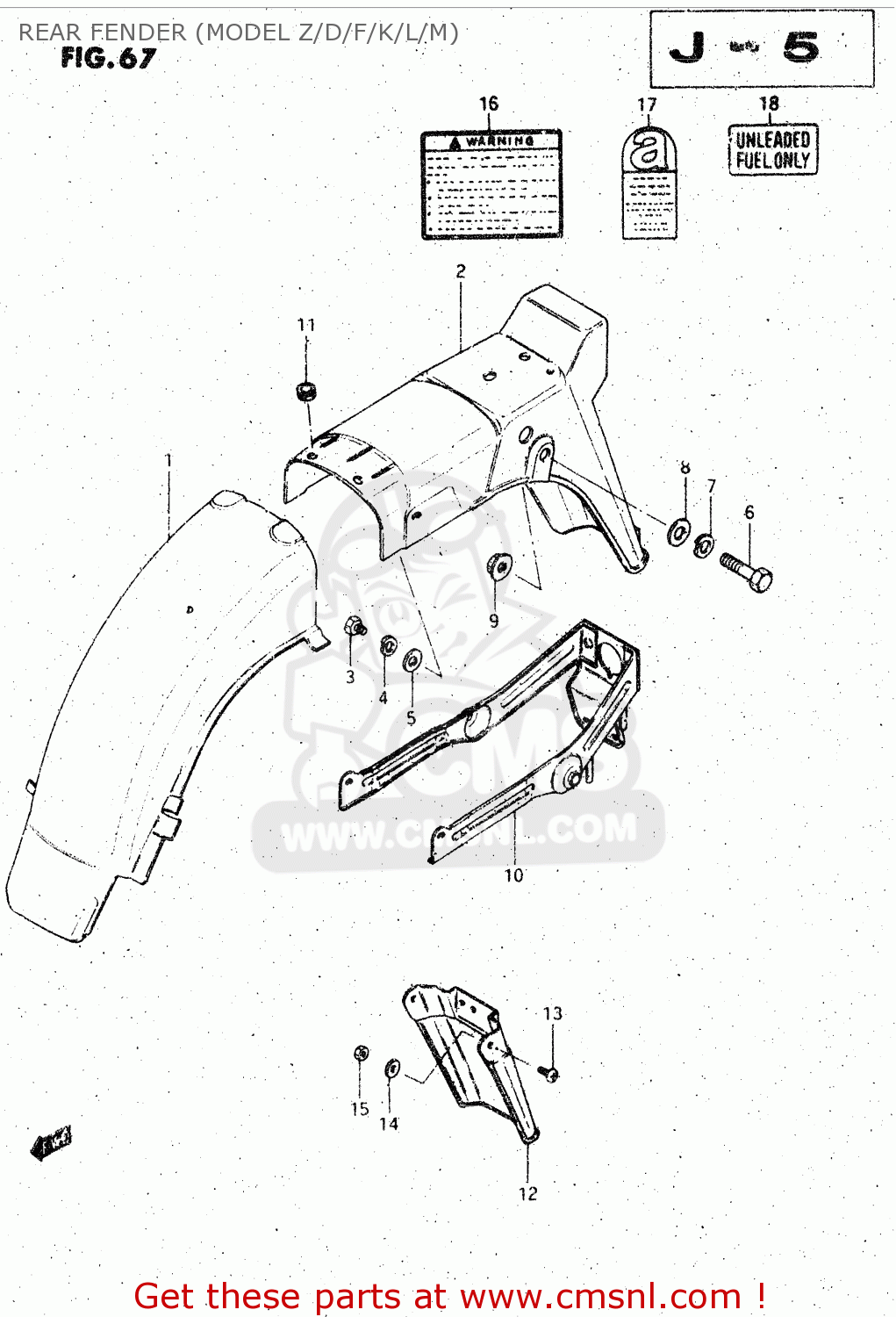

Rear fender (model z/d/f/k/l/m) diagram GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR FENDER (MODEL Z/D/F/K/L/M) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR FENDER (MODEL Z/D/F/K/L/M) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
REAR FENDER (MODEL Z/D/F/K/L/M) GS125ES 1994 (R) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
6311205302
ref: 1
BODY,FR
6311205302
€ 44.00
2-1
6311305350
ref: 2-1
BODY,RR FENDER RR
€ 58.50
2-2
6311305360
ref: 2-2
E15,E18
FENDER, REAR
€ 71.50
2-3
6311305370
ref: 2-3
E39
FENDER, REAR
€ 0.00
3
0110706167
ref: 3
BOLT
0110706167
€ 3.00
4
0832121067
ref: 4
WASHER,LOCK
0832121067
€ 2.50
5
0832221067
ref: 5
WASHER
0832221067
€ 2.00
6
0110708555
ref: 6
BOLT 8X55
0110708555
€ 3.00
7
0832121084
ref: 7
WASHER,LOCK,8.
0832121084
€ 2.50
8
0832211084
ref: 8
WASHER
0832211084
€ 1.50
9
0831616088
ref: 9
NUT
0831616088
€ 2.50
10
6312005350
ref: 10
REINFORCEMENT,RR FENDER
6312005350
€ 26.00
11
0932005006
ref: 11
CUSHION
0932005006
€ 4.00
12
6331105350
ref: 12
E15,E18
EXTENSION, REAR
6331105350
€ 23.50
13
0214204127
ref: 13
E15,E18
SCREW
0214204127
€ 2.00
14
0832221047
ref: 14
E15,E18
WASHER 4MM
0832221047
€ 2.00
15
0831011047
ref: 15
E15,E18
NUT
0831011047
€ 2.00
16-1
6831940C00
ref: 16-1
LABEL
6831940C00
€ 8.00
16-2
6831940C20
ref: 16-2
E39
LABEL, WARNING SAFETY
€ 8.00
16-3
6831940C30
ref: 16-3
E4
LABEL, WARNING SAFETY
€ 8.50
16-4
6831940C40
ref: 16-4
E34
LABEL, WARNING SAFETY
€ 8.00
17
1196782000
ref: 17
E2
LABEL,ASBESTOS WARNING
€ 2.00
18
8693273060
ref: 18
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
19-1
990110533104V
ref: 19-1
MODEL D
MANUAL, OWNER'S
€ 0.00
19-2
990110533401A
ref: 19-2
MODEL K
MANUAL, OWNER'S
€ 0.00
19-3
990110533501A
ref: 19-3
MODEL L
MANUAL, OWNER'S
€ 0.00
19-4
990110533601A
ref: 19-4
MODEL M DRAWING NOT
MANUAL, OWNER'S
€ 0.00
